Electrical system
8
Unplugging the connection: Switch off the safety cut-out (Fig. 125,1) in the fuse box (Fig. 125,2).
Loosen the detent on the power supply device and unplug the connection
cable from the socket.
Loosen the detent on the vehicle, unplug the plug connector and close the
cover of the 230 V connection.
8.6 Fuses
8.6.1 12 V fuses
The appliances connected to the 12 V power supply in the living area are
fused individually. The fuses are accessible at the power supply unit or in a
fuse holder close to the power supply unit.
An intact 12 V fuse can be detected by the unbroken fuse element
(Fig. 127,1). If the fuse element is broken (Fig. 127,2), change the fuse.
Before changing fuses, take the function, value and colour of the relevant
fuses from the following specifications. When changing fuses, only use flat
fuses with the values shown below.
Fuse for the refrigerator The fuse is located in a fuse holder in the vicinity of the power supply unit unit.
z Type of fuse: Flat fuse 15 A/blue
X Only replace defective fuses when the cause of the defect is known and
has been remedied.
X Replace defective fuses only after the power supply has been turned off.
X Never bridge or repair fuses.
X Only replace faulty fuses with a new fuse with the same rating.

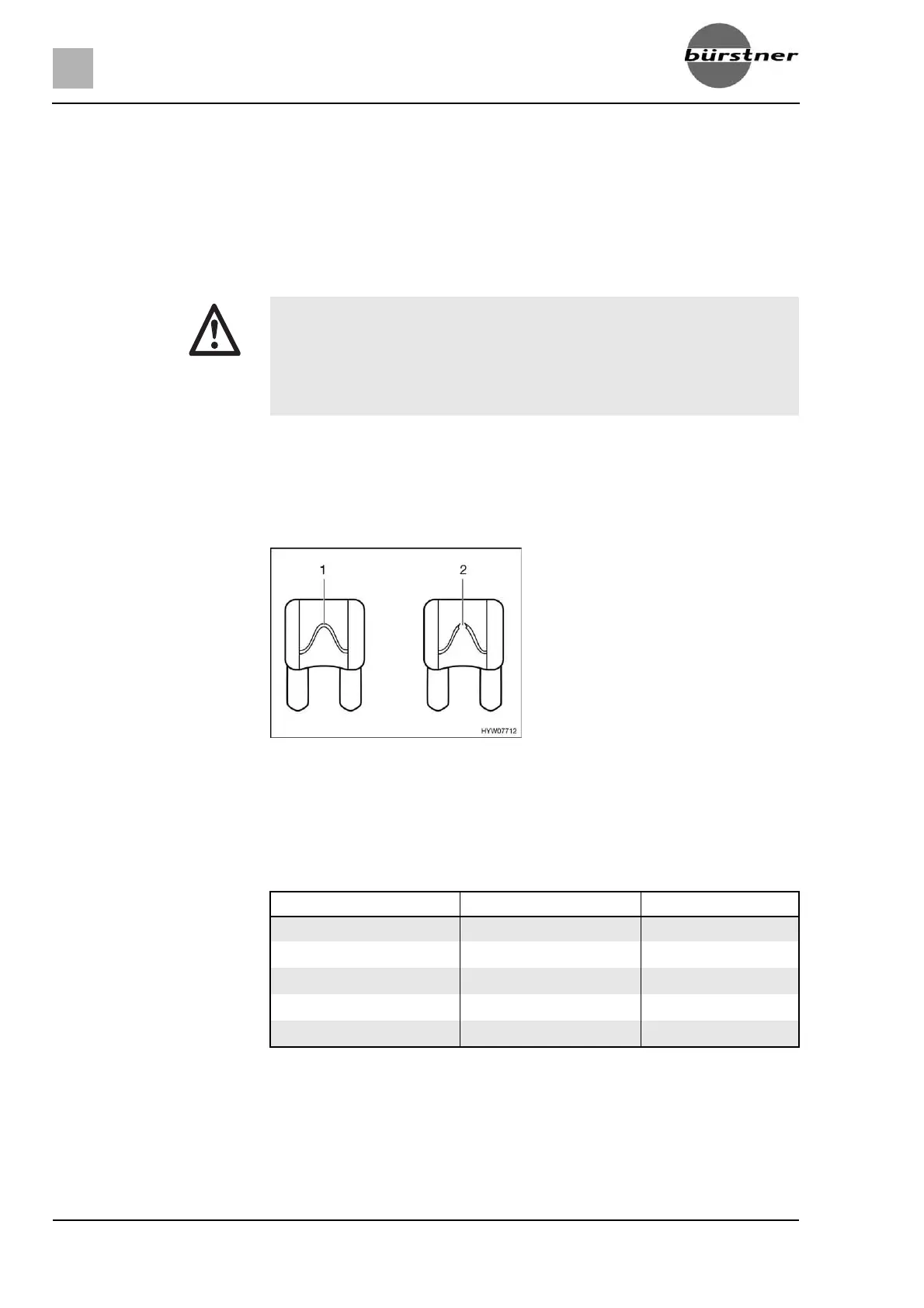

Fig. 127 12 V fuse
1 Unbroken fuse element
2 Broken fuse element
Function Type of fuse Value/colour
Fuses on the power
supply unit CSV 300
Fuse circuit 1 Flat fuse 15 A blue
Fuse circuit 2 Flat fuse 15 A blue
Fuse circuit 3 Flat fuse 15 A blue
Fuse circuit 4 Flat fuse 15 A blue
Fuse circuit 5 Flat fuse 15 A blue
