6.2.1 Flap lock, elliptical-shaped
Opening: Insert key into locking cylinder (Fig. 33,1) and turn a quarter turn in an anti-
clockwise direction. The lock handle (Fig. 33,2) snaps out.
Remove the key.
Turn lock handle one quarter turn in an anticlockwise direction. The flap
lock is open.
Closing:
Firmly close the external flap.
Turn lock handle in a clockwise direction until it is horizontal. The flap lock
is now engaged but not locked.
Insert key into locking cylinder.
Press down lock handle with key inserted and turn key a quarter turn in a
clockwise direction. The lock handle will stay bolted.
Remove the key.
Z During rain, water can penetrate the opened flap lock. Therefore close the
lock handle.

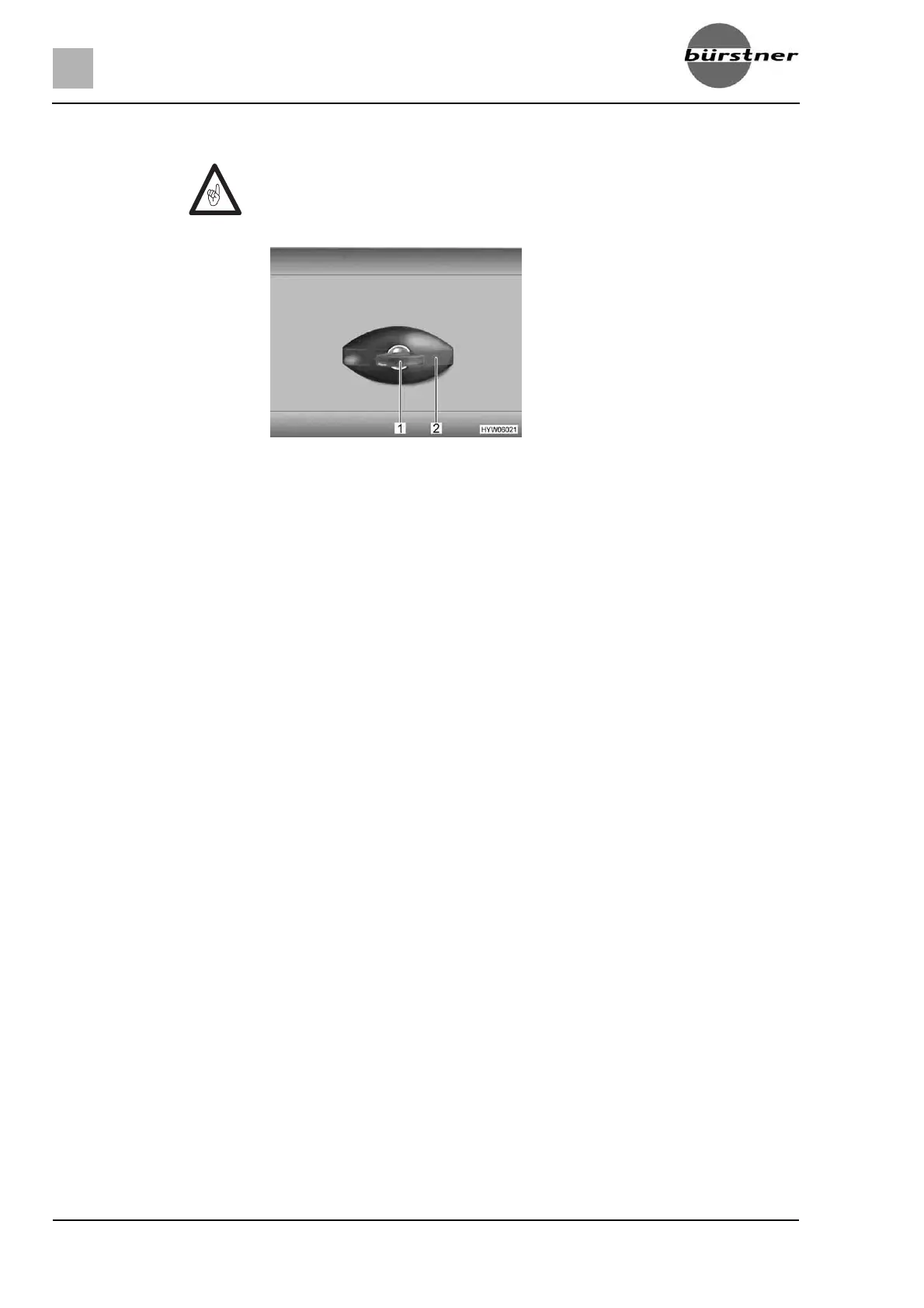

Fig. 33 Flap lock, elliptical-shaped,
closed
