6.2.2 Flap lock with recessed handle
Opening:  Insert key into locking cylinder (Fig. 34,1) and turn a quarter turn. The flap
lock is unlatched.
 Remove the key.
 Pull on the lock handle (Fig. 34,2). The external flap is open.
Closing:
 Firmly close the external flap.
 Insert key into locking cylinder and turn a quarter turn. The flap lock is
locked.
 Remove the key.
6.2.3 Flap lock, rectangular
Opening:  Insert key into locking cylinder (Fig. 35,1) and turn a quarter turn. The lock
handle (Fig. 35,2) snaps out.
 Remove the key.
 Turn the lock handle one quarter turn. The flap lock is open.
Closing:
 Firmly close the external flap.
 Turn lock handle until it is horizontal. The flap lock is now engaged but not
locked.
 Insert key into locking cylinder.
Z To open the external flap, pull all the lock handles fitted to that particular
external flap at the same time.

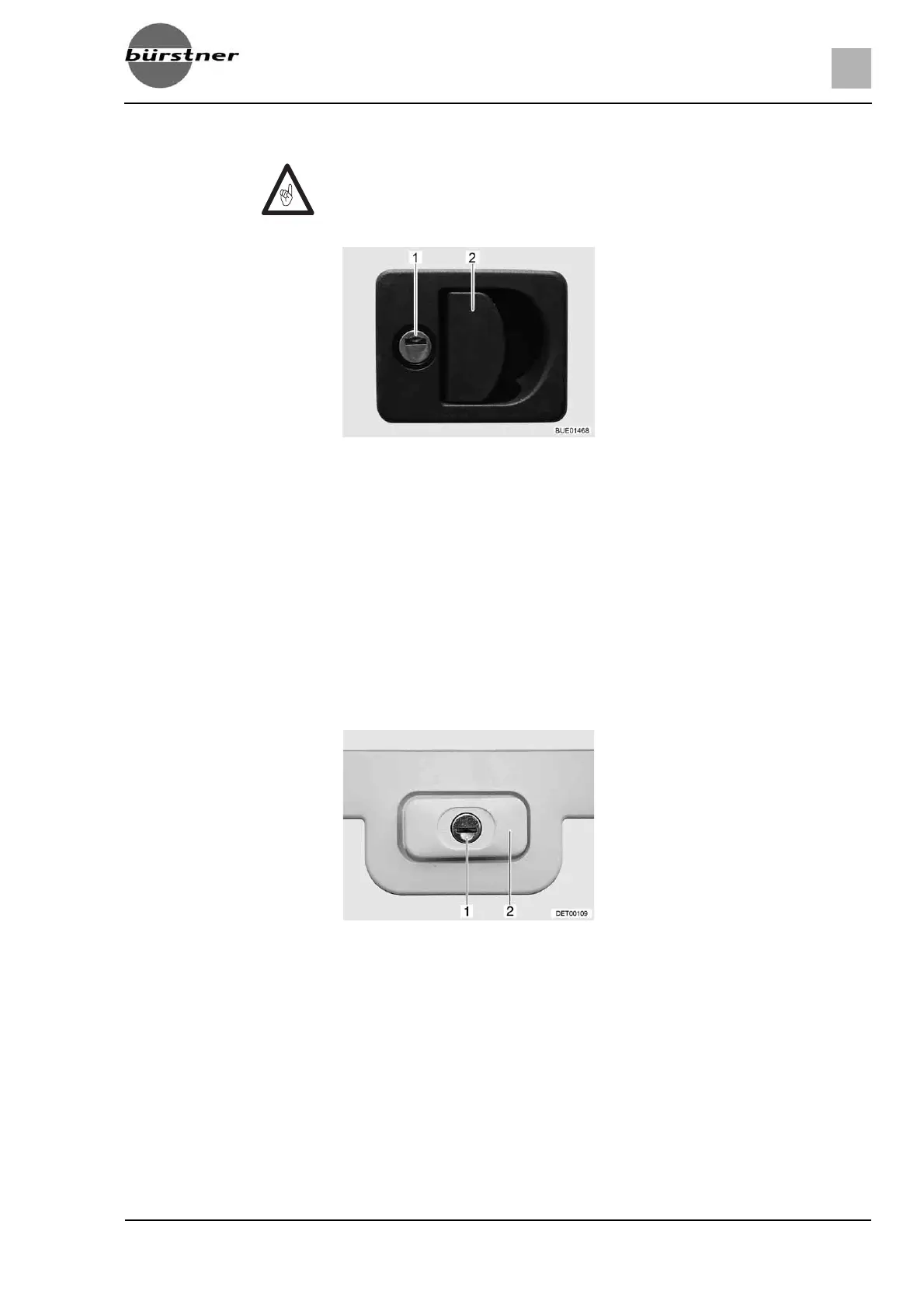

Fig. 34 Flap lock with recessed handle
Fig. 35 Flap lock, rectangular, closed
