Burstner Premio - L-Seating Group with Additional; Cushion

81Premio/Averso - 13/14 - Ausgabe 09/13 - 2354619 - BUE-0048-12EN
Living
6
6.14.7 L-seating group with additional cushion
 Convert the table (Fig. 110,4) to a bed foundation (see section 6.12).
 Remove the back cushions (Fig. 110,1 and 2) and lay them aside.
 Unlatch and fold up the bedding box extension (Fig. 111,5).
 Place support (Fig. 111,6) into the holder on the bedding box extension.
 Place the additional cushion (Fig. 112,8) on the bedding box extension
(Fig. 112,5).
 Place the additional cushion (Fig. 112,7) on the table (Fig. 112,4).
 Place the back cushion (Fig. 112,2) on the table in front of the additional
cushion (Fig. 112,7).

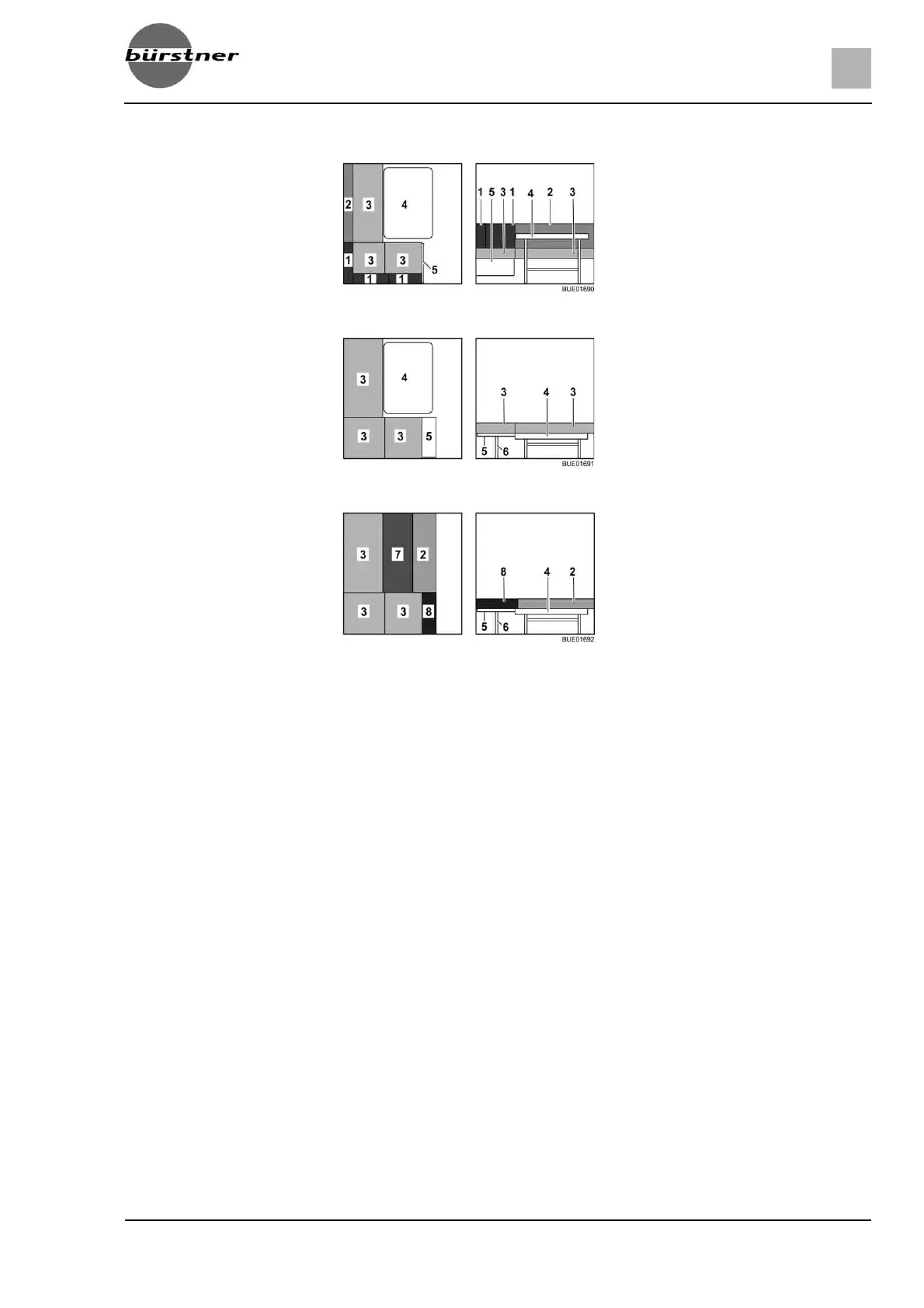

Fig. 110 Prior to conversion
Fig. 111 During conversion
Fig. 112 After conversion
1 Back cushion
2 Back cushion
3 Seat cushion
4 Table
5 Bedding box extension
6 Support
7 Additional cushion
8 Additional cushion
