8.9.2 Circuit diagram, exterior
Z Cable installation can differ depending on the model.

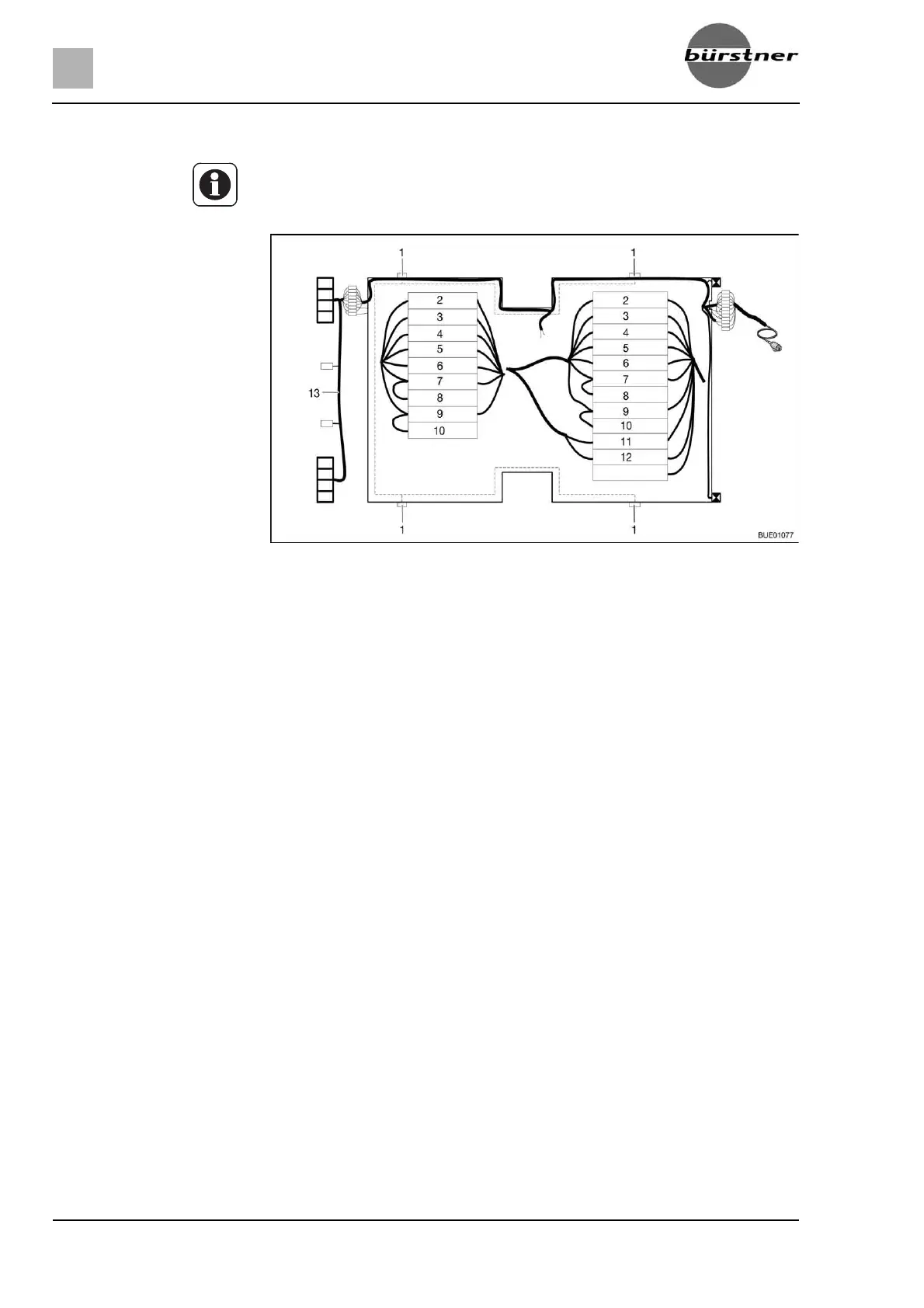

Fig. 137 Circuit diagram, exterior
1 Side marking light (number depends on type)
2 Left direction indicator (yellow)
3 Fog tail light (blue)
4 Earth 1 - 8 (white)
5 Right direction indicator (green)
6 Brake lights (red)
7 Right tail light (brown)
8 Right side marking lamps (brown)
9 Left tail light (black)
10 Left side marking lamps (black)
11 Constant positive (blue)
12 Earth 9 - 12 (brown)
13 Wiring harness, bumper (dependent on type)
