12.8.7 Halogen spotlight (swivelling)
Halogen bulb 12 V/10 W
Changing bulbs:
 Turn outer ring (Fig. 216,2) in an anticlockwise direction until it separates
from the housing.
 Remove retaining ring (Fig. 216,1).
 Remove halogen bulb.
 Put in a new halogen bulb.
 Reassemble the lamp in the reverse order.
12.8.8 Halogen spotlight (movable)
Halogen bulb 12 V/10 W
Changing bulbs:
 Turn the halogen spotlight (Fig. 217,1) by 90° and remove from rail.
 Turn the lamp shade (Fig. 217,3) in an anticlockwise direction.
 Withdraw lamp shade complete with halogen bulb (Fig. 217,4) carefully
from the holder (Fig. 217,2).
 Remove halogen bulb.
 Screw lamp shade onto holder.
 Insert new halogen spot light into the lamp shade and press into holder.
 Insert halogen lamp into the rail.

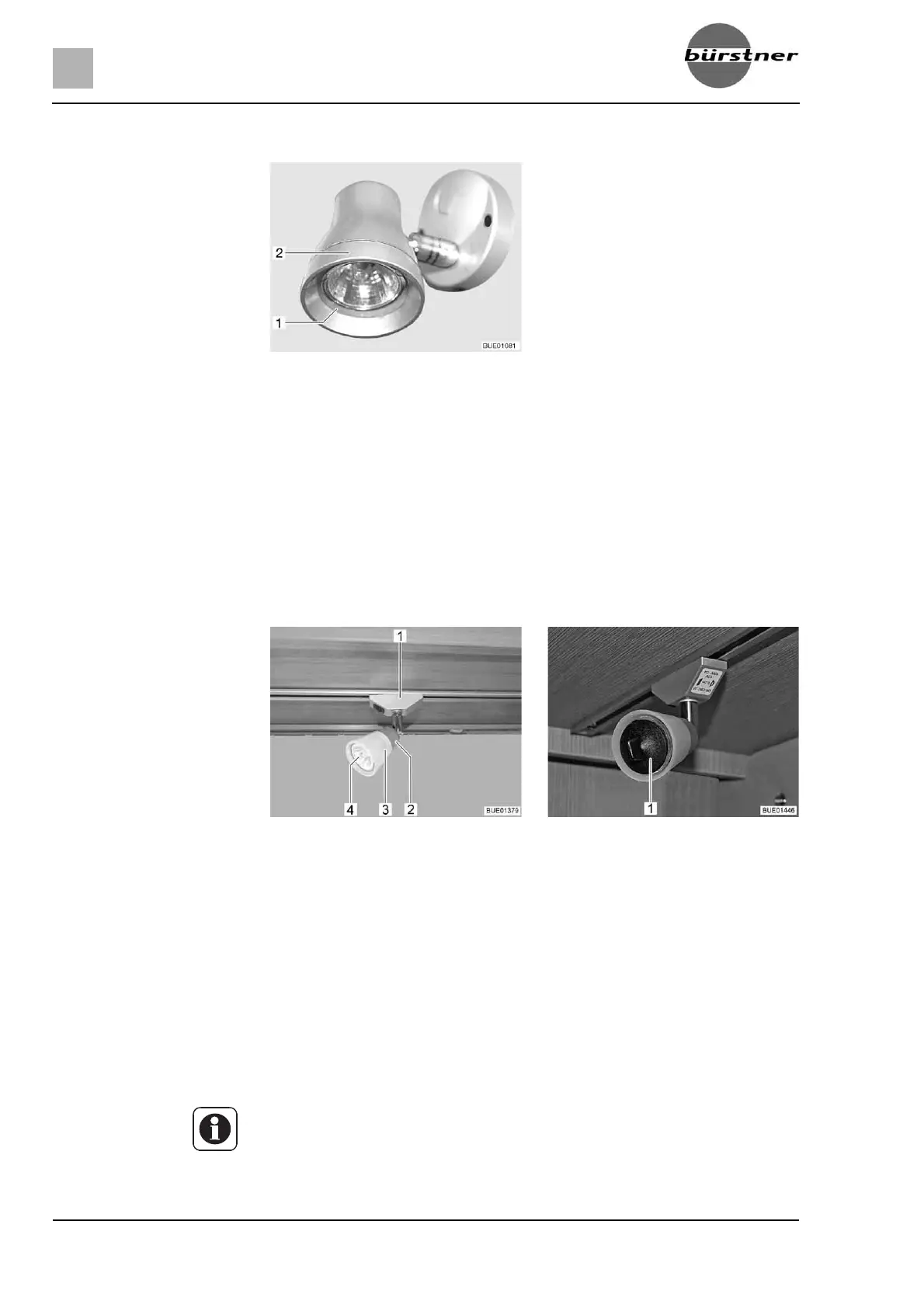

Fig. 216 Halogen spotlight (swivelling)
Fig. 217 Halogen spotlight (movable) Fig. 218 Suction cup for replacing the
lamp
Z A suction cup (Fig. 218,1) is included to help with changing the lamp.
