6.7.3 Holder in the TV cabinet
The flat screen is attached to a console in the TV cabinet.
Positioning:
 Push the unlocking bar (Fig. 54,1) in.
 Pull out the extension (Fig. 54,2) as far as possible.
 Swivel flat screen into the desired position.
Storing away:
 Swing back flat screen into its original position.
 Push in the extension (Fig. 54,2) until the unlocking bar (Fig. 54,1)
engages.
6.7.4 Holder in the TV compartment
The flat screen is fixed to a lifting mechanism in the TV compartment.
Positioning:
 Lightly depress the cover (Fig. 55,1) of the TV compartment in the centre.
The extension column (Fig. 56,3) is released and starts to move upwards.
 Pull the release knob (Fig. 56,1) and swivel holder (Fig. 56,2) with flat
screen to the desired position.
Storing away:
 Turn the flat screen back into the original position until holder (Fig. 56,2)
engages in the lock.
 Press the middle of the cover (Fig. 55,1) downwards against the resistance
of the extension column (Fig. 56,3) until the locking mechanism engages.

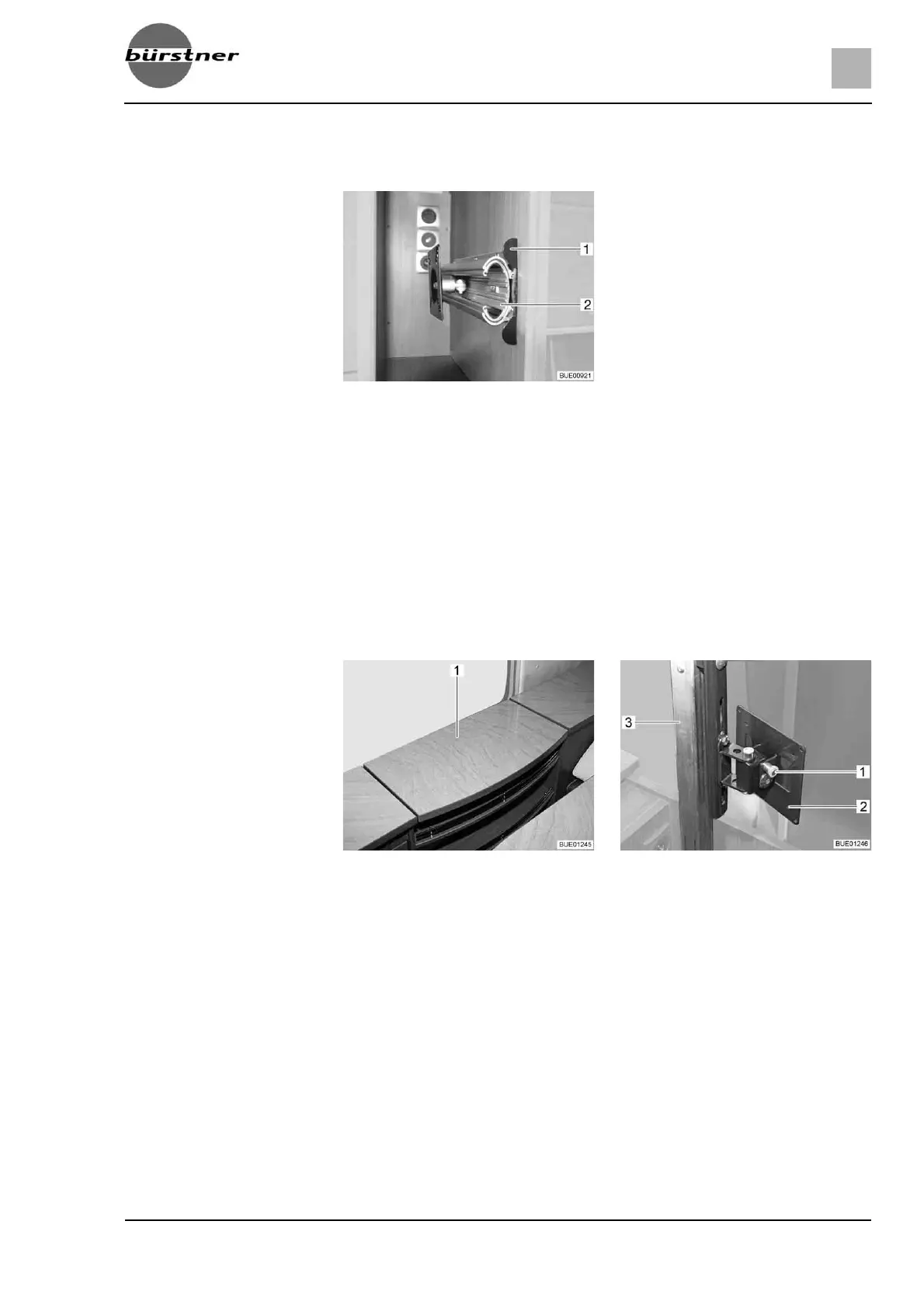

Fig. 54 Holder in the TV cabinet
Fig. 55 TV compartment Fig. 56 Lifting mechanism
