6.11.2 Heki skylight (special equipment)
The Heki skylight may be opened on one side only.
Opening:
 Press the safety knob (Fig. 74,1) and turn the catch lever (Fig. 74,2) one
quarter turn inward.
 Pull the bar (Fig. 74,4) downwards out of the latch.
 Press the Heki skylight upwards using the bar.
 Press the bar back into the latch.
Closing:
 Pull the bar (Fig. 74,4) downwards out of the latch.
 Pull the Heki skylight downward using the bar.
 Turn the catch lever (Fig. 74,2 and Fig. 75,2) one quarter turn. The hook of
the roof lock (Fig. 75,5) must engage in the upper locking fork (Fig. 75,3).
 Press the bar back into the latch.
Ventilation position
(variant 1):
 Open Heki skylight and push lightly outwards.
 Press the safety knob (Fig. 75,1) and turn the catch lever (Fig. 75,2) back.
The hook of the roof lock (Fig. 75,5) must engage in the lower locking fork
(Fig. 75,4).
 Press the bar back into the latch.
Ventilation position
(variant 2):
 Open Heki skylight.
 Insert the bar (Fig. 76,3) into the holder (Fig. 76,1).
 Place the lever (Fig. 76,2) over the bar.

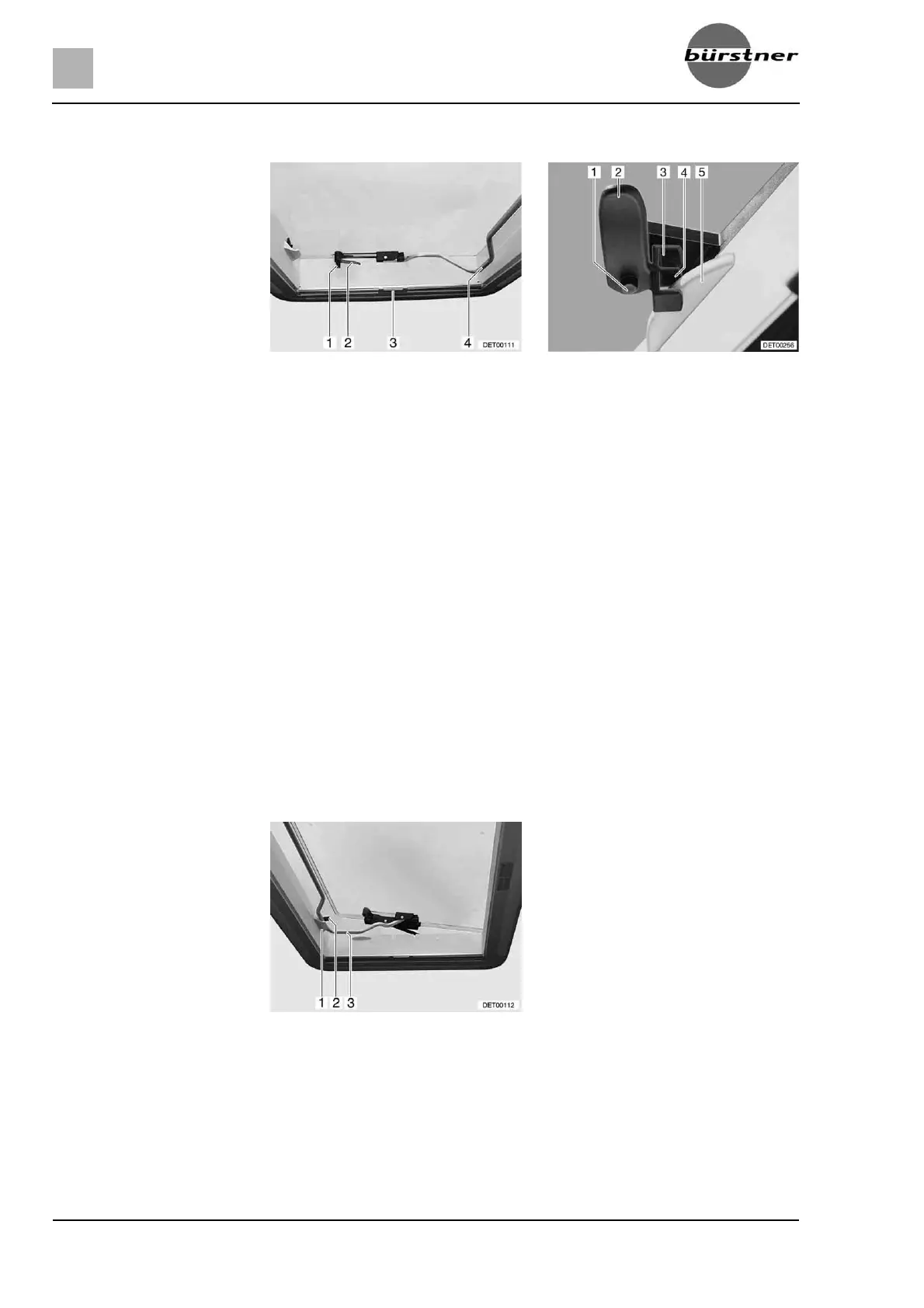

Fig. 74 Heki skylight, closed Fig. 75 Heki skylight in ventilation
position 1
Fig. 76 Heki skylight in ventilation
position 2
