8.7 Thirteen-pin plug connection diagram
Z Note the colours of the connecting cable of the socket which is fitted to the
towing vehicle. This makes any new connection which may be necessary
easier.
Z To connect the thirteen-pin plug to a seven-pin socket, use a commercially
available adaptor.

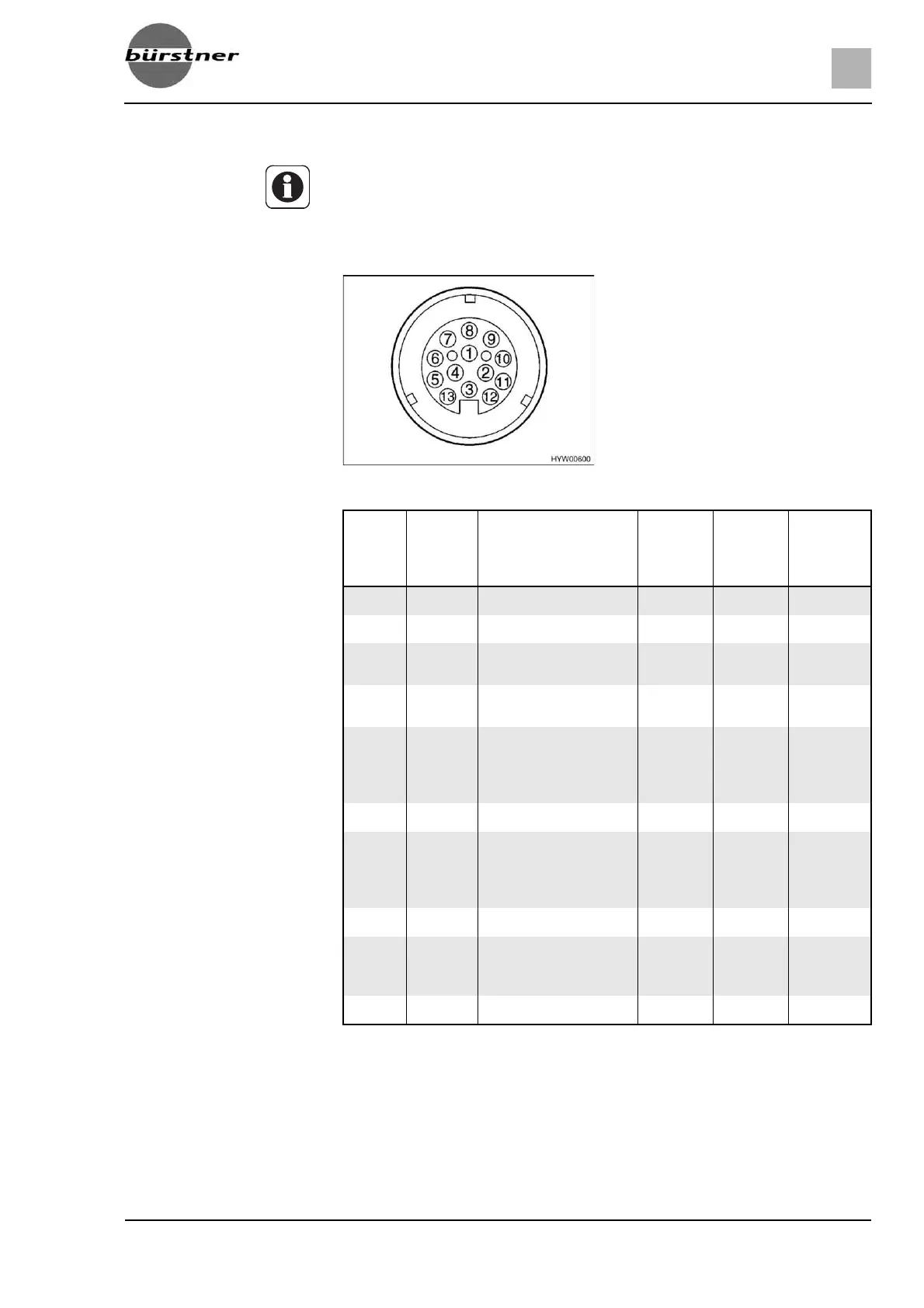

Fig. 132 Contact diagram of the thirteen-pin plug
Con-
tact
no.
DIN-
specifi-
cation
Function Cable
colour
caravan
Cable
colour
plug
Cross
section
of the
wire
Connection diagram
1 L Left direction indicator Yellow Yellow
1.5 mm
2
2 54 G Fog tail light Blue Grey
1.5 mm
2
3
1)
31 Earth (contacts 1, 2,
4-8)
White White
2.5 mm
2
4 R Right direction indica-
tor
Green Green
1.5 mm
2
5 58 R Right tail light, side
marker light (white/
red), clearance light, li-
cence plate light
Brown Brown
1.5 mm
2
6 54 Brake lights Red Red
1.5 mm
2
7 58 L Left tail light, side
marker light (white/
red), clearance light, li-
cence plate light
Black Black
1.5 mm
2
8 Back-up light Grey Purple
1.5 mm
2
9 Constant positive Blue (ca-
ble no.
78)
Blue
2.5 mm
2
10 Positive charging line – Orange
2.5 mm
2
