8.8 External socket (special equipment)
The 230 V socket and the 12 V socket can be used to power electrical devices
in the awning.
Connection possibilities TV socket and SAT socket offer various possibilities for TV operation:
z TV inside the vehicle (Fig. 134,4): Connection to roof antenna (Fig. 134,1)
with connection cable (Fig. 134,2)
z TV inside the vehicle (Fig. 134,4): Connection to external antenna
(Fig. 134,3)
z TV inside the awning (Fig. 135,4): Connection to roof antenna (Fig. 135,1)
with connection cable (Fig. 135,2)
z TV inside the awning (Fig. 135,4): Connection to external antenna
(Fig. 135,3)
11 Earth charging line – Orange-
white
2.5 mm
2
12 Not assigned – – –
13
1)
Earth (contacts 9 - 12) Brown
(cable
no. 78)
Blue-
white
2.5 mm
2
1)
These earth cables may not be connected to electrical conductors on the trailer
side.

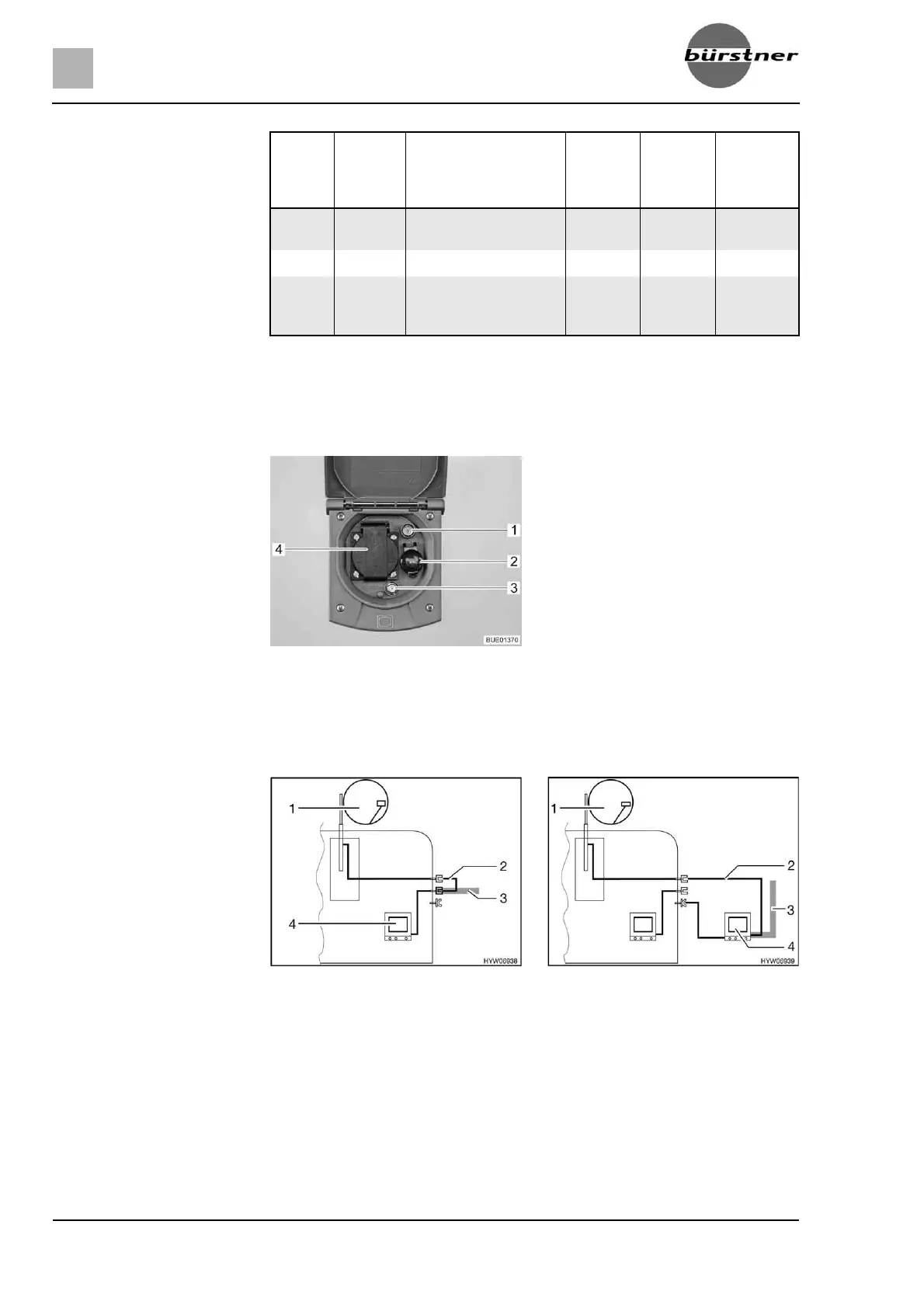

Fig. 133 External socket
1 TV socket
2 12 V socket
3 SAT socket
4 230 V socket
Con-
tact
no.
DIN-
specifi-
cation
Function Cable
colour
caravan
Cable
colour
plug
Cross
section
of the
wire
Fig. 134 TV inside the vehicle Fig. 135 TV in the awning
