Burstner Premio - Recessed Halogen Light; Recessed Halogen Light (Flat)

172 Premio/Averso - 13/14 - Ausgabe 09/13 - 2354619 - BUE-0048-12EN
Maintenance
12
Changing bulbs:  Press the two ends (Fig. 210,2) of the spring ring (Fig. 210,1) together and
remove.
 Remove the housing (Fig. 210,3) with LED from the lamp.
 Pull out the plug and fully replace the housing with LED.
 Reassemble the lamp in the reverse order.
12.8.3 Recessed halogen light
Halogen bulb 12 V/10 W
The recessed halogen light (Fig. 211,1) is installed flush with the panel.
Changing bulbs:
 Use a suitable tool (e.g. a screwdriver) to lever out and remove the cover
(Fig. 211,2).
 Remove halogen bulb.
 Put in a new halogen bulb.
 Reassemble the lamp in the reverse order.
12.8.4 Recessed halogen light (flat)
Halogen bulb G4 12 V/10 W
The recessed halogen light (Fig. 212,2) is installed flush with the panel.
Changing bulbs:
 Use a suitable tool (e.g. a screwdriver) to lever out the internal cover ring
with glass disk (Fig. 212,1) from the housing.
 Remove halogen bulb.
 Put in a new halogen bulb.
 Reassemble the lamp in the reverse order.

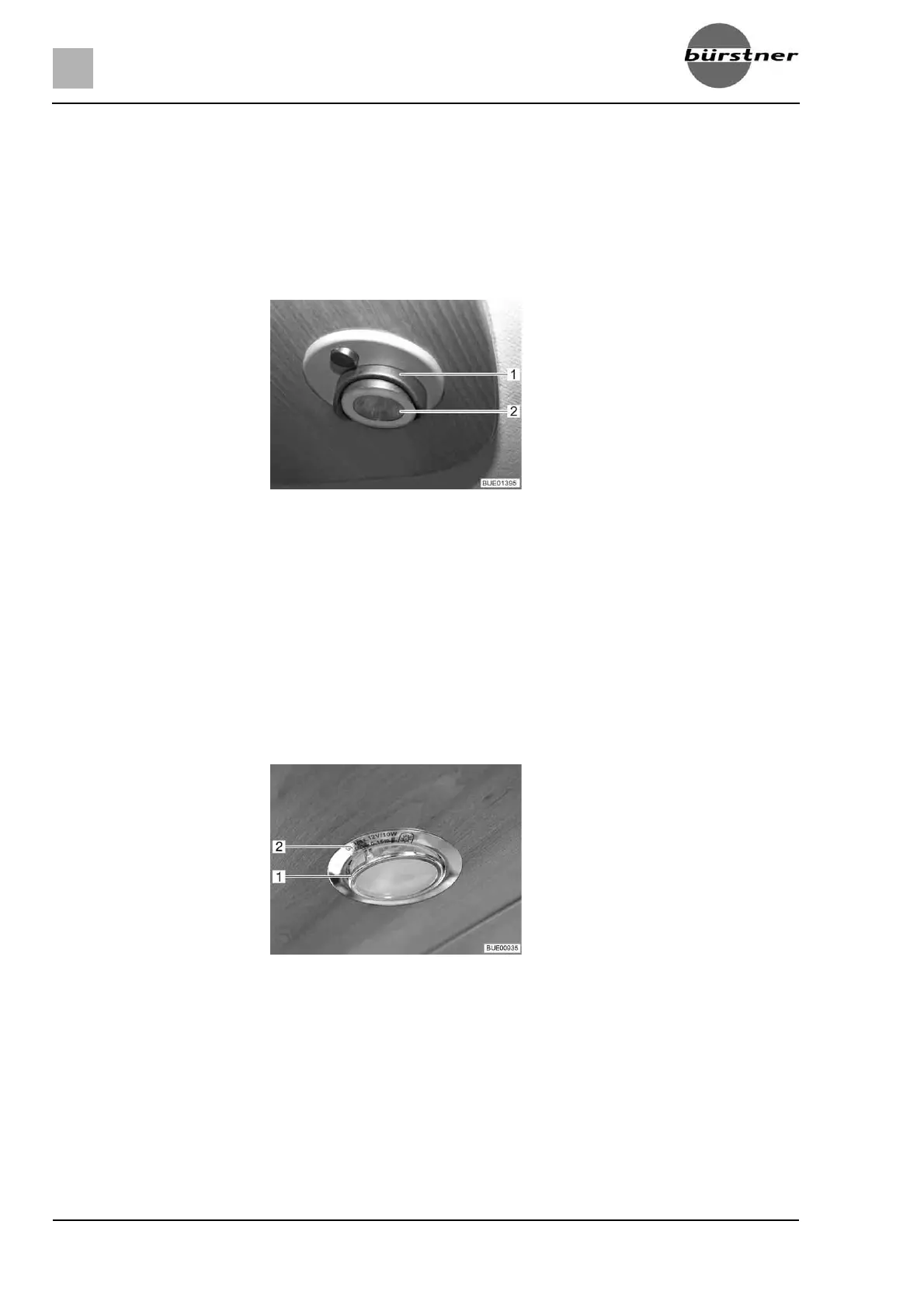

Fig. 211 Recessed halogen light
Fig. 212 Recessed halogen light (flat)
