Burstner Premio - Page 99

99Premio/Averso - 13/14 - Ausgabe 09/13 - 2354619 - BUE-0048-12EN
Electrical system
8
Panel
D Pin header MSFQ/0 6Fh
E
1
2
3
4
5
6
Connections panel
12 V Off white
12 V On green
12 V control
Mains check
– 12 V brown
+ 12 V brown
F Pump
G Pump switch 1
H Pump switch 2
I Circuit 1
J Circuit 2
K Circuit 3
L
1
2
3
4
5
6
Circuit 5
+ Awning light
– Awning light
+ TV
– TV
+ Spare
– Spare
M Connector LF-PA 401 6.3x0.8 - 32-pin
N Solar charge regulator LRS 1214
O MNL-connector socket-3F
P Changeover switch "Blei-Säure/Blei-Gel" (lead-acid/dryfill)
Q Connector cable 6.3x0.8 3 G 1.5 L = 1.2 m 230 V∼ 50 Hz

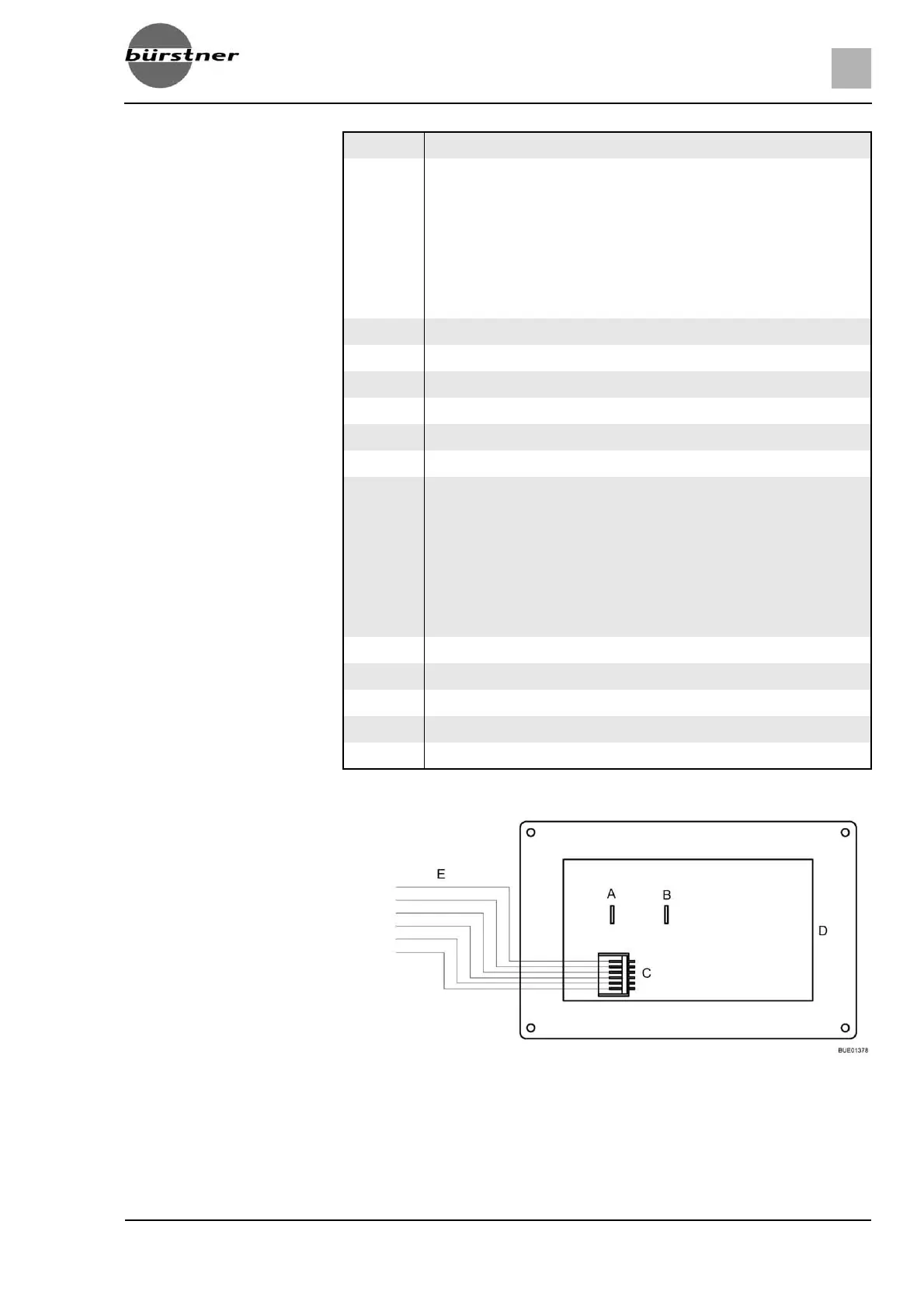

Fig. 124 Connection diagram
