Battery Adapters
Adapters are designed to fit specific battery types and shapes. The snap-lock latch allows
easy insertion and removal. There are two types of Battery Adapters:
•
Custom Adapters accommodate a specific battery shape. There are over 1000 custom
adapters available.
• Universal Adapters are used when a custom adapter is not available. Pins or alligator
clips attach to the positive and negative terminals and include a magnetic
temperature sensor.

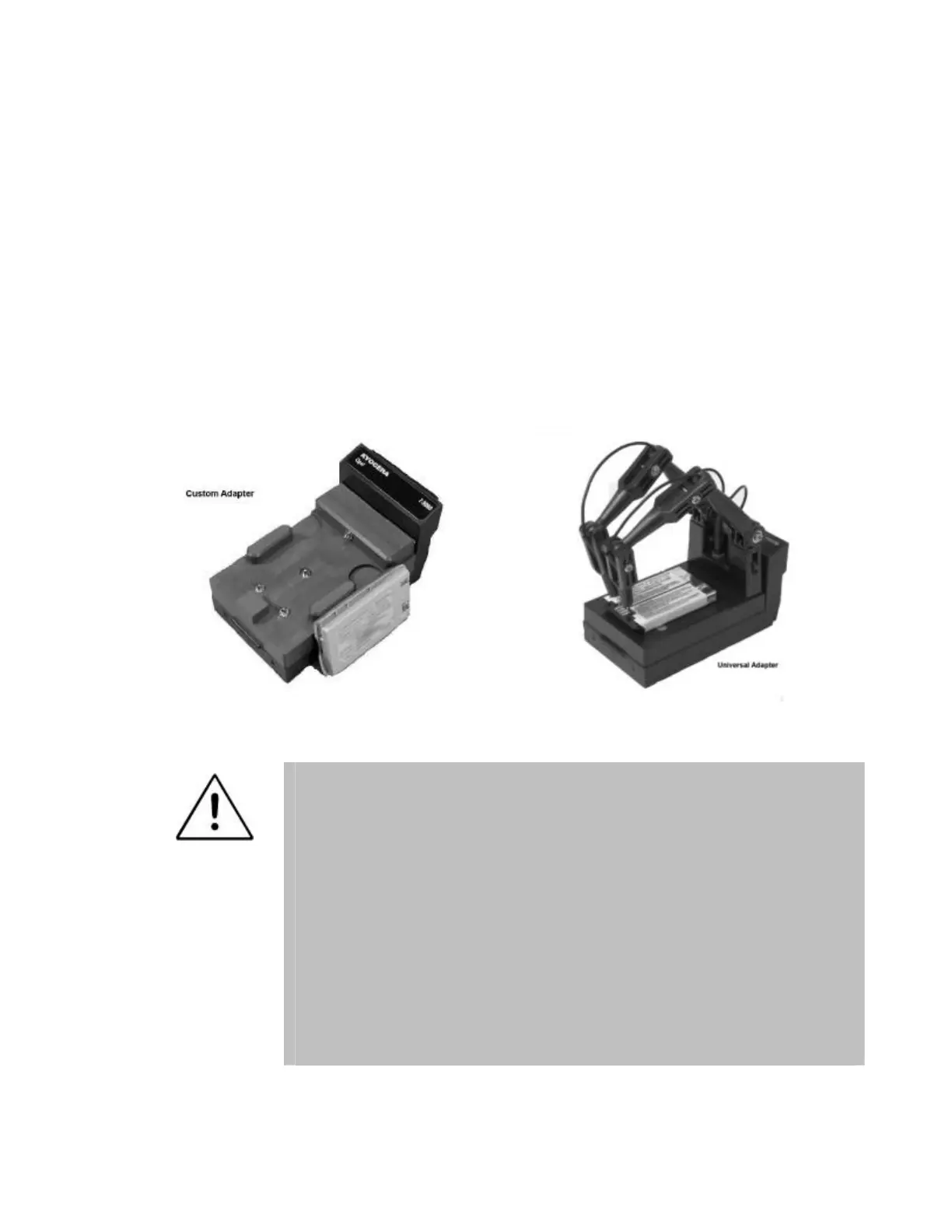

Figure 5: Different types of Battery Adapters
ADAPTER HANDLING PRECAUTIONS
• Do not touch the adapter’s gold contacts at the rear or on the
analyzer station adapter connector. The static charge can damage
microcircuits on the adapter.
• Do not remove the adapter from the analyzer while it is servicing a
battery. Remove the battery first and then the adapter.
• ESD HANDLING PRECAUTIONS: When the adapter is NOT installed in
analyzer:
