Chapter 4
Basic Battery Service
This chapter covers the basic procedures for servicing a battery including: turning on the
unit; inserting the Battery Adapter; selecting the correct C-Code and program; inserting
the battery; confirming the setting; starting service and recording the results.
To service a battery
1.
Turn the power on using the ON/OFF power switch on the rear panel. A boot-up
screen appears for 5 seconds: It displays the firmware version on the bottom left (in
this case, it is V1.00) and the security level (in this case, it has not been set). This
screen can also be cleared after 5 seconds by pressing the
ESC
key.
2. Insert the Battery Adapter into a station by sliding the lower-front part of the adapter
into the station towards the display. Press the back end down to close with a click. If

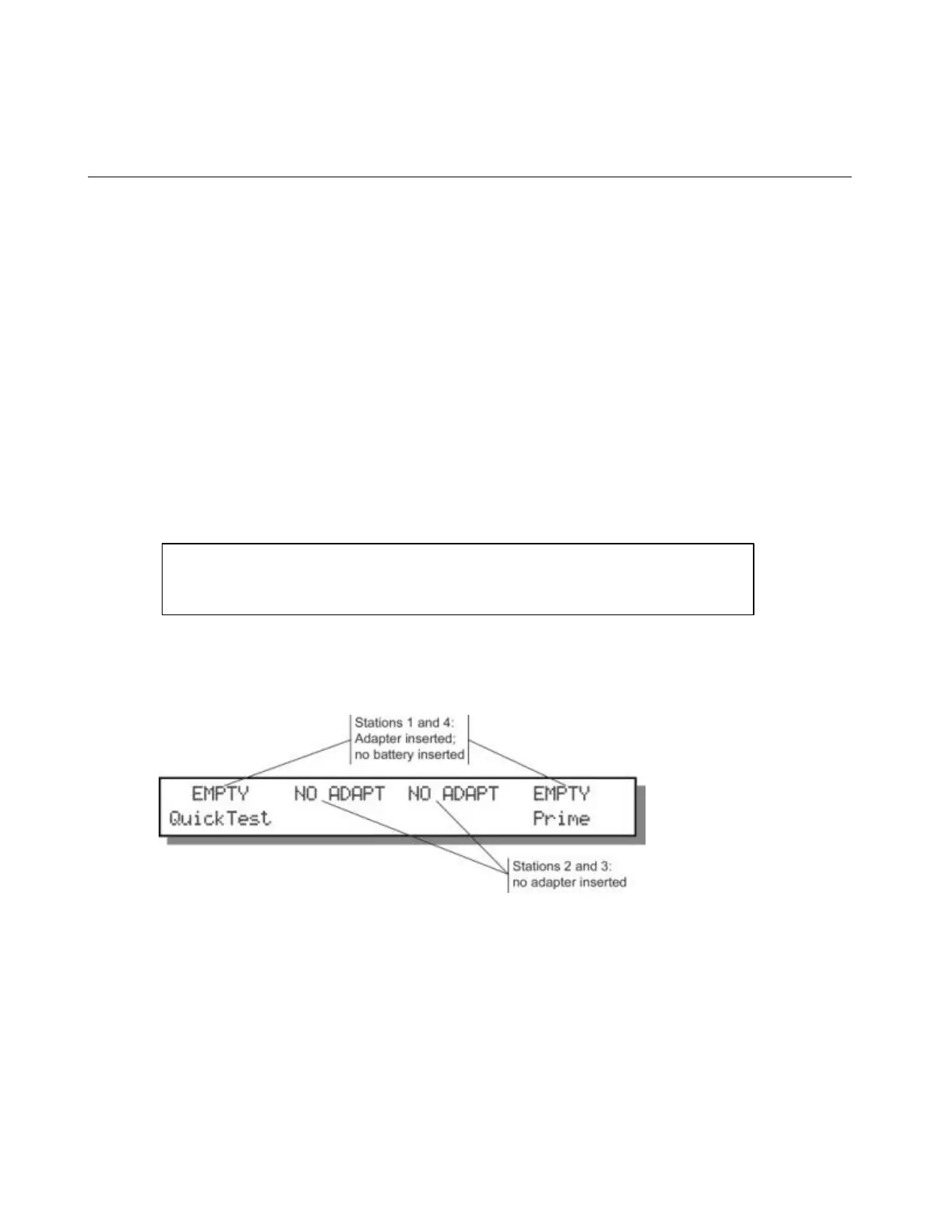

adapters are inserted in Stations 1 and 4, a display like this appears:
If a Universal adapter is used for the first time, N
ULL
C
ODE
appears on the display. Create a
custom C-Code (see Create or Edit a C-Code, page 55).
3.
Insert a battery into the adapter.
C7400-C (C)2006 CADEX ELECTRONIICS INC.
V1.00/1.00 ** DIAGNOSTICS PASSED **
