PART 13 PIPING DIAGRAMS

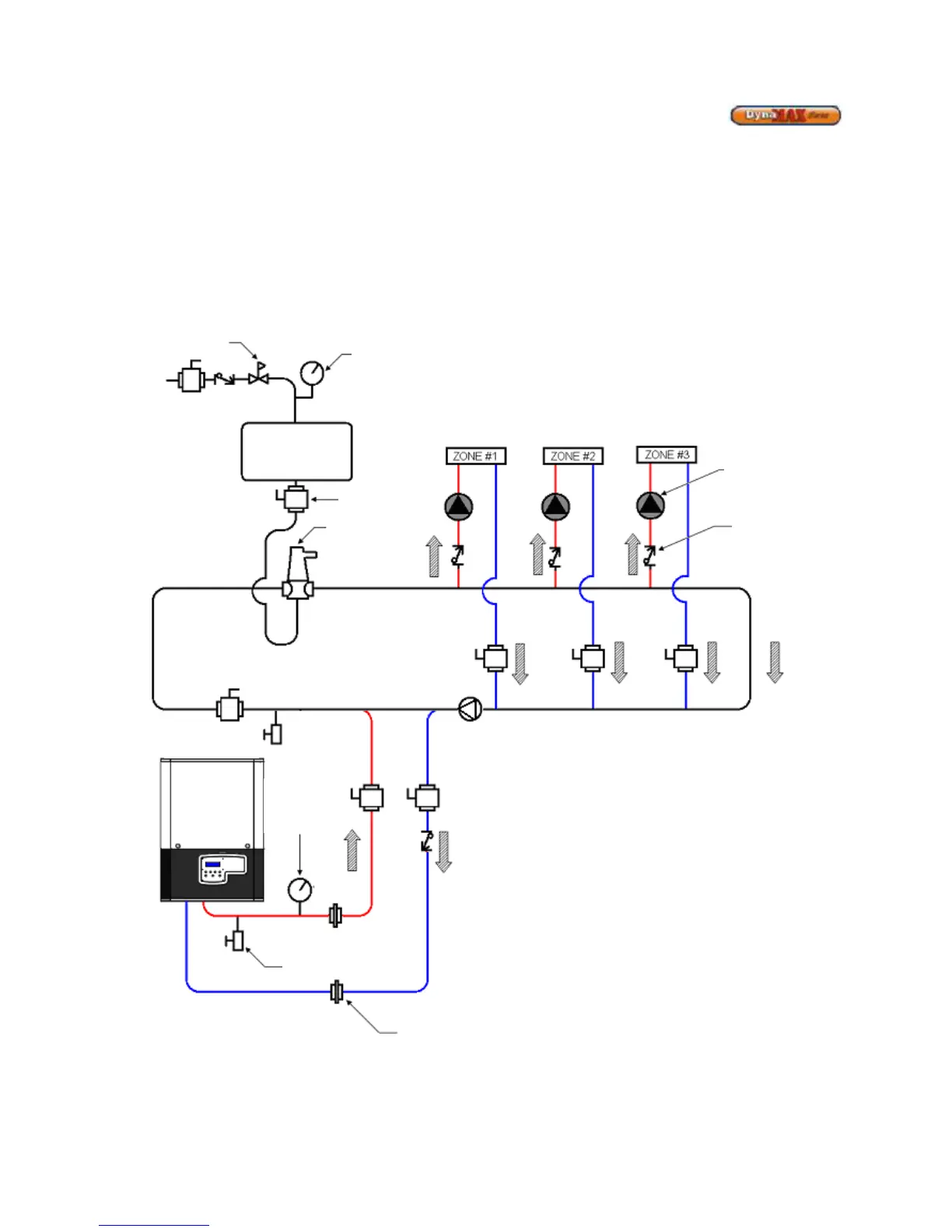

Figure 69: Single Boiler Hydronic Heating Zoned Piping Arrangement
This piping arrangement is designed for:
Central Heating Mode: 0, 1, 2, or 3
DHW Mode: 0
Boiler Address: 100
Note:
1) Size main header to minimize induced flow
through zones
2) Separate boiler loop as shown is recommended
for system piping greater than 50 equivalent
feet.
Pressure Reducing
Valve
Pressure Gauge
Ball Valve
Air
Separator
Zone
Circulator
Flow Check
Valve
DynaMax Boiler
Drain
Union
Temperature
/ Pressure
Gauge
Expansion
Tank
