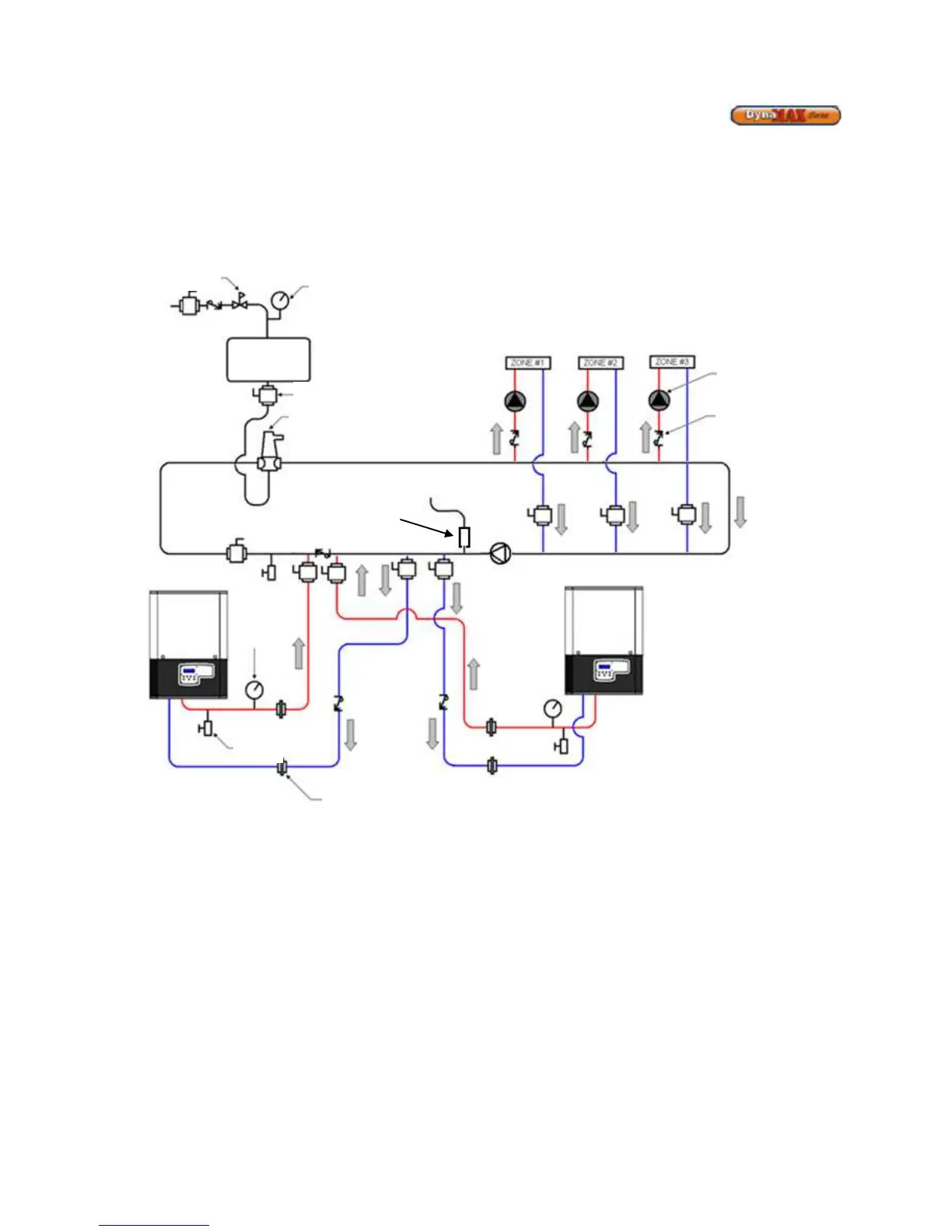

Figure 74: Multiple Boiler Hydronic Heating Zoned Piping Arrangement
Central Heating Mode: 0, 1, 2, 3
DHW Mode: 0
Boiler Address: Master Boiler Address = Master Boiler 1 (M1)
Slave Boiler Address = Slave Boiler 2 (S2)
Pressure Reducing
Valve
Pressure Gauge
Air
Separator
Expansion
Tank
Ball Valve
Zone
Circulator
Flow Check
Valve
DynaMax
Boiler
(Master, M1)
Temperature/
Pressure
Gauge
Drain
Union
DynaMax Boiler
(Slave, S2)
System
Sensor
Note:
1) Size main header to minimize induced flow
through zones
