MAINTENANCE PROCEDURES
The installation is the reverse of the re-
moval procedure.

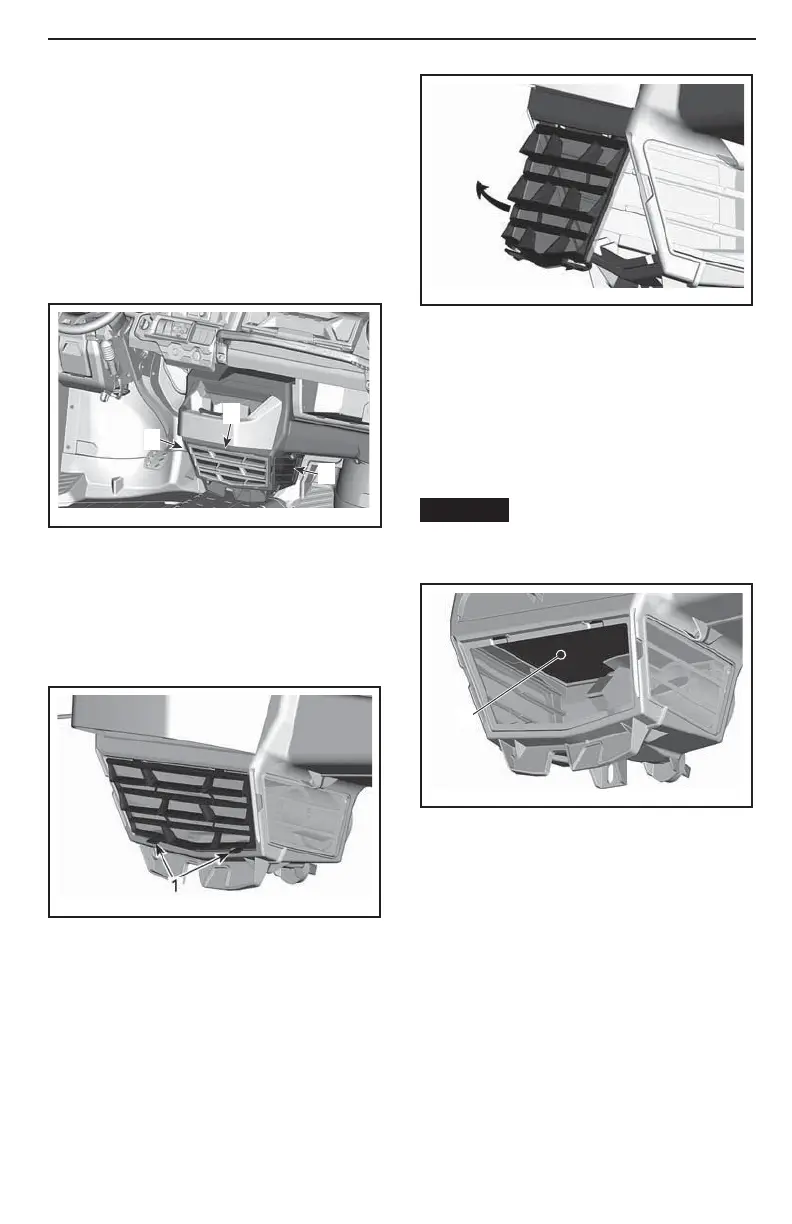

Cockpit Air filters
Cockp it air fil ters are located at the bot-
tom of the c enter consol e. There are 3
filters.
– One at the front of the u nit
– One on eac h side of the unit.
1
2
3
219002059-075
1. Front cockpit air filter
2. Lateral cockpit air filter - passenger side
3. Lateral cockpit ai r filter - driver side
Front Cockpit Air Filter
To remove this filter, lift the grille tabs
and pul l up.
219002086-013
219002086-014
Clean air filter by washing it in luke-
warm water with mild soap. Remove
excess water and air dry before instal-
lation.
Before installing the filter, clean the in-
side of the heating/a ir c onditio ning unit
and the evaporator coil using vacuum
and a soft brush.
NO TICE
Be careful when brushing
to avoid damaging the evaporator
coil fins.
1
219002059-303
1. Evaporator
The installation is the reverse of the re-
moval procedure.
Lateral Cockpit Air Filters
To rem ove these filters, grab the grille
tab and pul l.
______________
129
