MAINTENANCE PROCEDURES

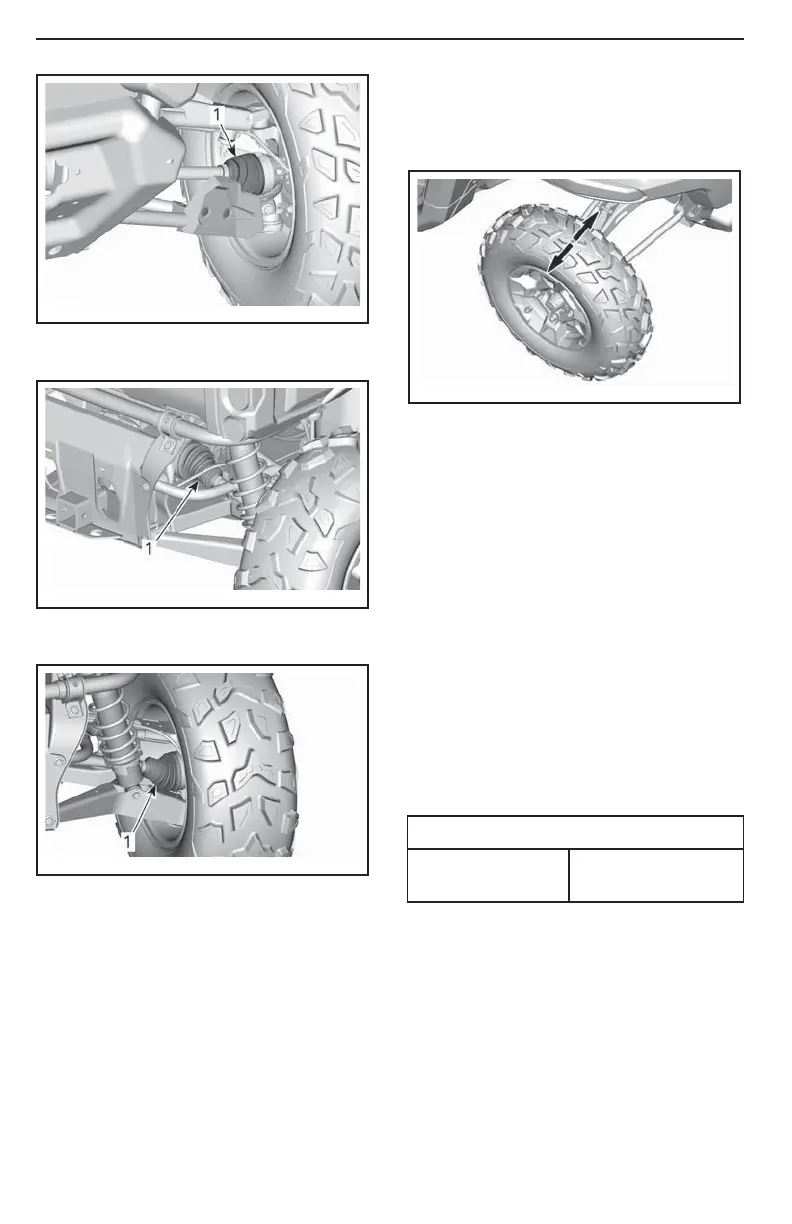

tmo2016-010-053_a
FRONT OF VEHICLE
1. O uter drive shaft bellows
tmo2016-010-045_a
REA R OF VE HICLE
1. Inner drive shaft bellows
tmo2016-010-046_a
REA R OF VE HICLE
1. O uter drive shaft bellows
Wheel Bearing
Wheel Bearing Inspection
Lift a nd s upport veh icle. Refer to
LIFT-
ING AND SUPPORTING THE VEHI-
CLE
.
Push and pull the wheels from the up-
per edge to feel the play.
See a n authorized C a n-Am dealer, a re-
pair shop or person of y our choosing if
there is an excessive play.
tmo2016-010-047_a
TYP ICAL
Wheels and Tires
Wheel Removal
Loosen nuts then lift and s upport v ehi-
cle. Refer to
LIFTING AND SUP PORT-
ING VEHICLE
.
Remove n uts then remove whe el.
Wheel Installation
Inspect studs and nuts. Replace if
needed.
The tires are unidirectional and thei r ro-
tation must be k ept in a s pec ific direc-
tion for proper operation.
Tighten wheel lug nuts in accordance
with the following illustration.
TIGHTENING TORQUE
Wheel lug nuts
100 N•m ± 10 N•m
(74lbf•ft ± 7lbf•ft)
142
