MAINTENANCE PROCEDURES
4. Clean inside the CVT air inlet with a
vacuum cleaner.
CVT Air Filter Installation
Reinstall CVT air filter and lower cargo
box.
NOTE: Maintaining a clean CVT air
filter will maximize air flow for an opti-
mum CVT components lifespa n.
Evaporative Emi ssi on
System Pre-Filte r (If
Equi pped)
Evaporative Emission System
Pre-Filter Replacement
1. Tilt cargo box, refer to
CARGO BOX
TILT RELEASE HANDLE
.
2. Remove the hose clamps.
3. R emove the r eta ini ng screws.
4. Remove the pre-filter assemb ly.

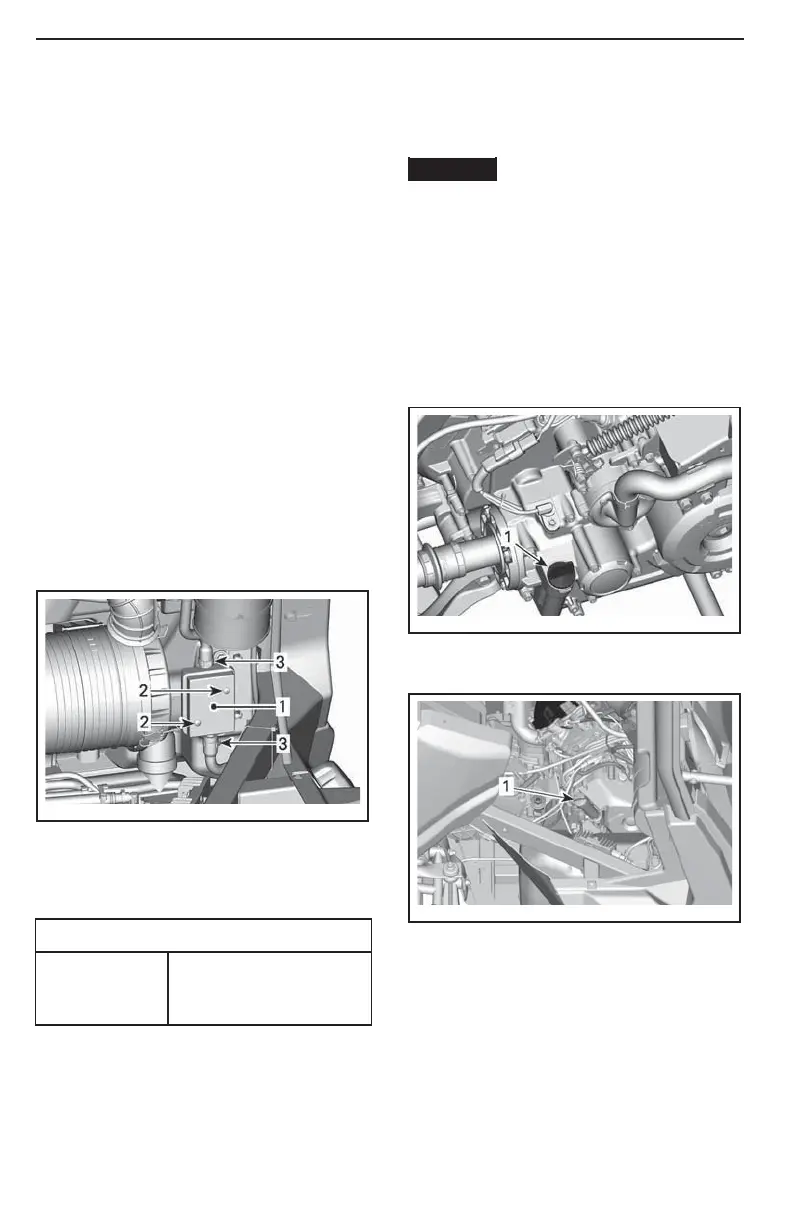

219001807-003_a
1. Pre-Filter
2. Retaining screw
3. Clamps
5. Install a n ew pre-filter assembly.
TIGHTENING TORQUE
Pre-fi lter
retaining
screw
2.5 N•m ± 0.5 N•m
(22 lbf•in ±4lbf•in)
6. Secure hoses with clamps.
Engi ne Oil
Engine Oil Level Verification
NO TICE
Operating the engine
with an improper level may severely
damage engine.
NOTE: Check oil level when engine is
cold.
1. Place vehicle on a level surface.
2. Open cargo box.
3. Uns c rew dipstick then remove it
andwipeclean.
219001750-007_a
HD5
1. Engine oil dipstick
tmo2016-010-030_a
HD8 A ND HD10
1. Engine oil dipstick
4. Reinstall dipstick, screw in it com-
pletely.
5. R em ov e dipstick and check oil level.
It should be near or equal to the up-
per mark.
122
