MAINTENANCE PROCEDURES
TIGHTENING TORQUE
Tailpipe retaining
screws
31.5 N•m ± 3.5 N•m
(23 lbf•f t ± 3 lbf•ft)

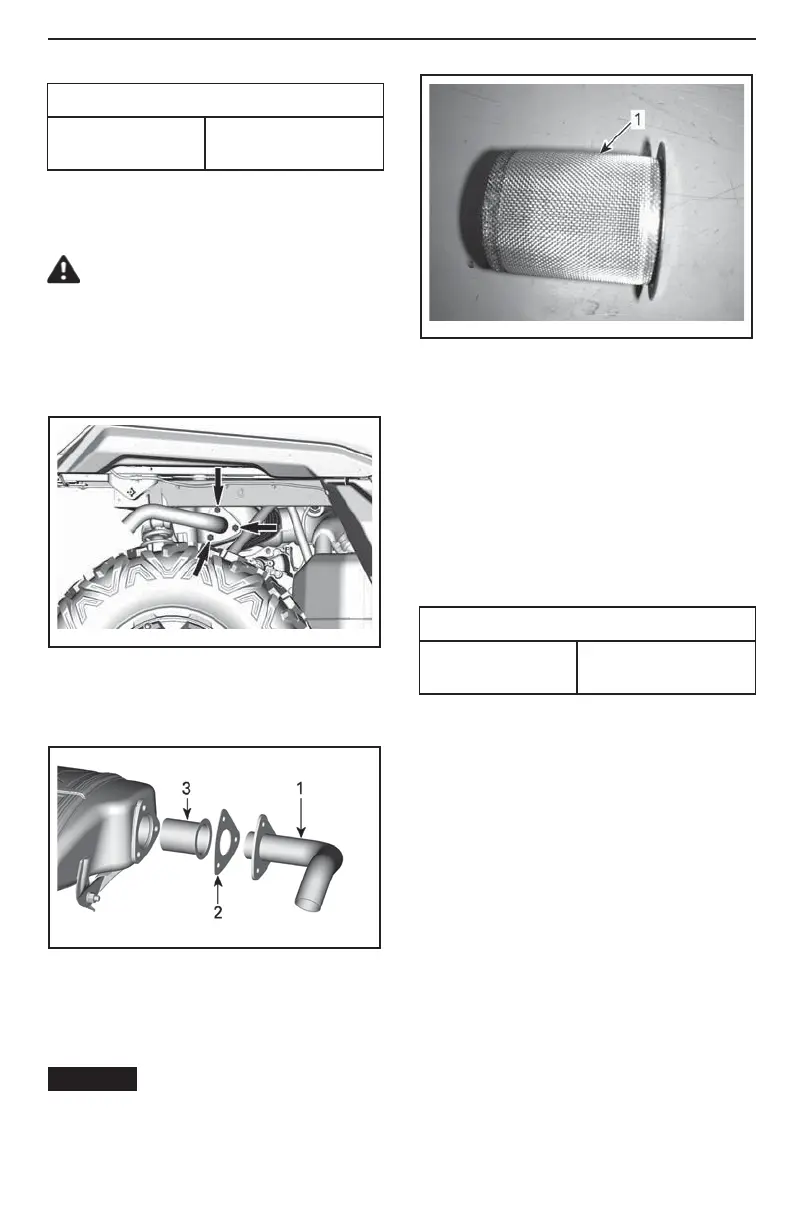

Muffler Spark Arrester Cleaning and
Inspection (HD10)
CAUTION Never perform this
operation immediately after the en-
gine has been running as exhaust
system is very hot.
Remove and discard the tail pipe retain-
ing screw s.
219002066-020
TA IL PIPE RETAINING SCREWS
Remov e exhaust tail pipe, ga sket (dis-
card) and spark arrester.
219002066-021
1. Tailpipe
2. Gasket
3. Spark arrester
Remove carbon deposits from the
spark arrester us ing a brus h.
NO TICE
Use a metallic soft brush
and be careful to avoid damaging
spark arrester mesh.
tmo2011-001-043_a
1. Clean spark arrester
Inspect m es h of spark arrester fo r any
damage. Replace a s required.
Inspect spark arrester cham ber in muf-
fler. R emove any deb ris as r equired.
Reinstall the muffler spark arrester in
the rev ers e of the removal procedure.
However pay attention to the follow-
ing.
Install new gasket and fasteners.
Tighten to spec ification.
TIGHTENING TORQUE
Tailpipe retaining
screw
31.5 N•m ± 3.5 N•m
(23 lbf•f t ± 3 lbf•ft)
Gearbox Oil
Gearbox Oil Level Verification
Place the vehi cle on a level surface.
Select PARK position.
Check the gearbox oil level by remov-
ing t he gea rbox oil dipstick.
______________
131
