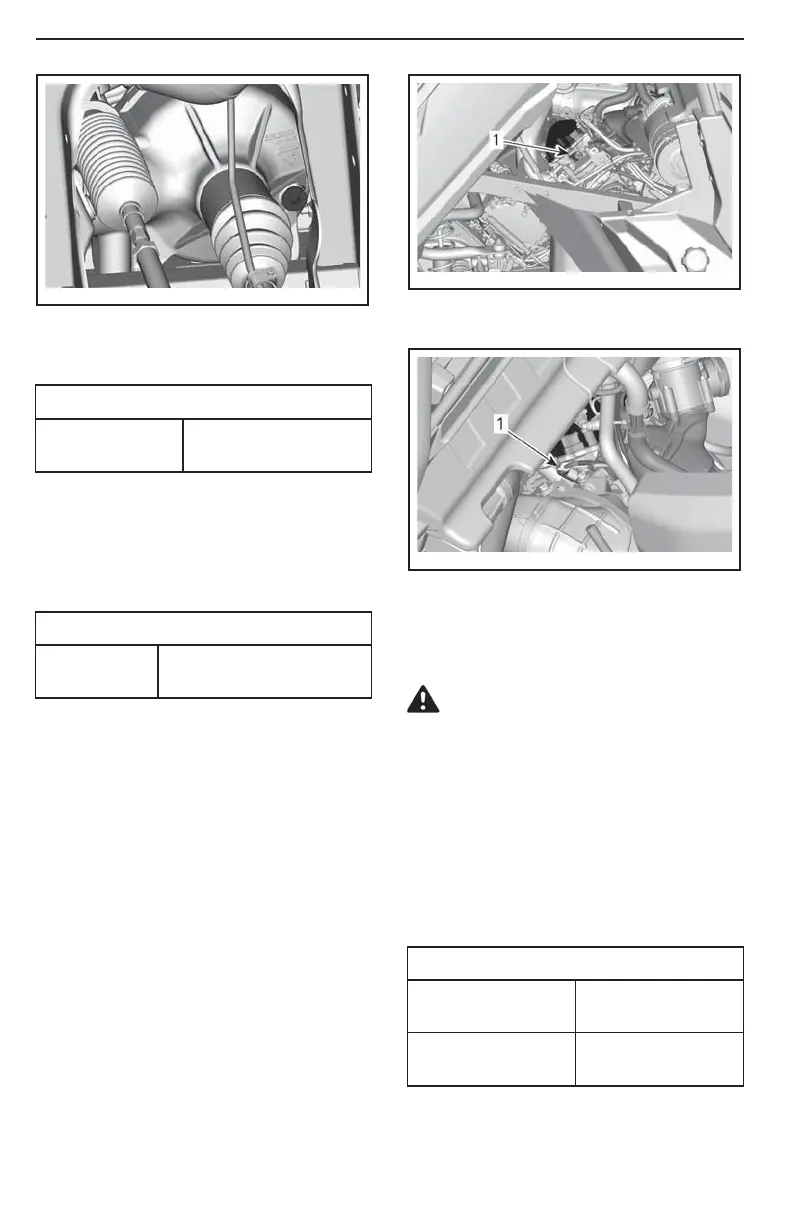

MAINTENANCE PROCEDURES
219001807-006
TYP ICAL VISCO-LOC- FRONT RIGHT SIDE
OF VEHICLE
Install drain plug.
TIGHTENING TORQUE
Drain plug
2.7 N•m ± 0.3 N•m
(24 lbf•in ±3lbf•in)
Refill front differential with recom-
mended oil.
For the differential oil capacity, refer to
SPECIFICATIONS
.
Reinstall filler plug.
TIGHTENING TORQUE
Filler plug
16.5 N•m ± 2.5 N•m
(146 lbf•in ±22lbf•in)
Spark Plugs
Access to Spark Plugs
Open cargo box .
Spark Plug Removal
Open the cargo box.
Unplug spark plug cable.
tmo2016-010-032_a
REA R CYLINDER (ON THE RH SIDE)
1. Spark plug
tmo2016-010-033_a
FRONT CYLINDER (ON THE LH SIDE)
1. Spark plug
Clean spark pl ug and cylinder hea d
with pressurized air.
CAUTION Always wear safety
goggles when using pressurized air.
Unscrew spar k plug completel y using
a spark plug socket, then remove it.
Spark Plug Installation
Prior to installation make sure that con-
tact surface of cylinder head and spark
plug is free of grime.
Using a feeler gauge, set t he s pa rk plug
gap.
SPARK PLUG GAP
HD8
0.7 mm to 0.9 mm
(.028 in to .035 in)
HD10
0.8 mm - 0.9 mm
(.031 i n - .035 in)
134
