4.5" DIG ITAL DISPLAY
219002117-001

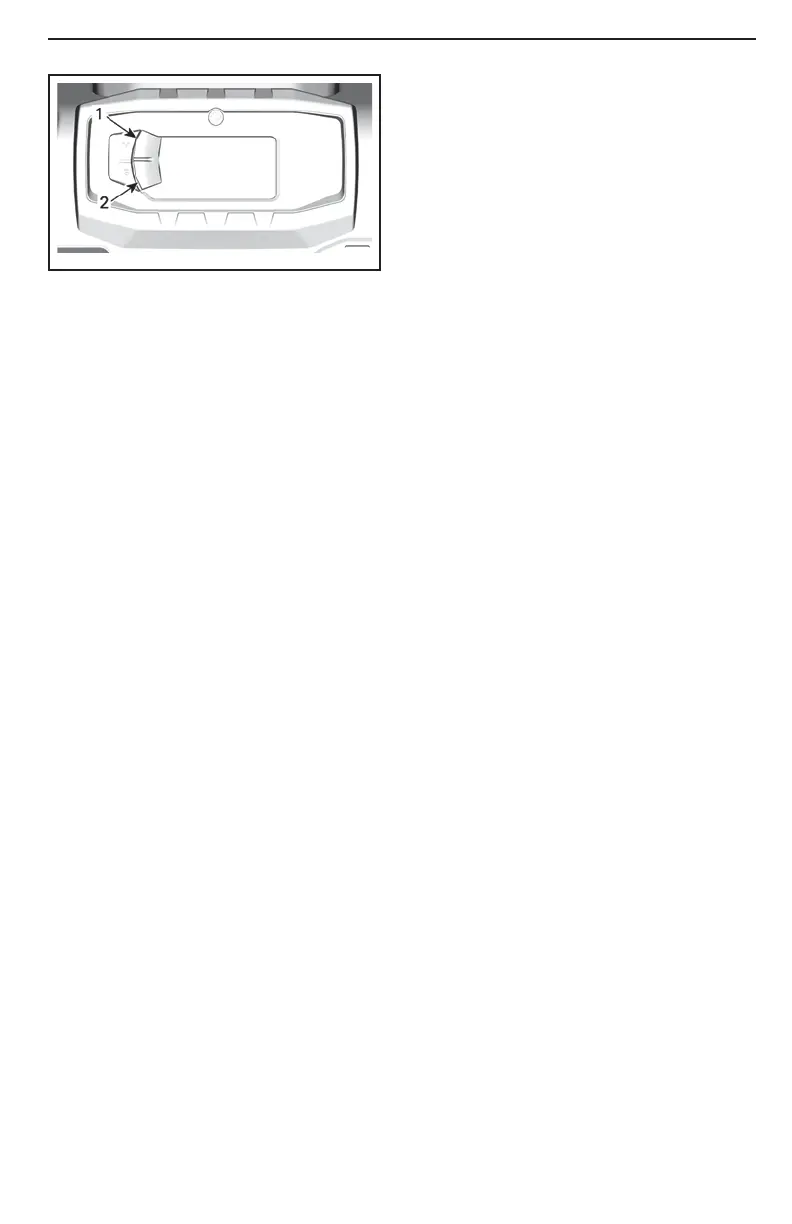

TYP ICAL
1. Upper button
2. Lower button
Setup
Using LOWER button, Sel ect SET-
TINGS and hold to ente r setting menu.
Maintenance Reset
NOTE: Only when the maintenance is
due.
Using LOWER button, Select RES
MAINT a nd ho ld to reset maintenance.
Fault Codes
NOTE: Only when codes are a c t ives .
Using LOWE R button, Select CODES
and hold to see actives fault codes.
Fault codes will be scrolled on the
Lower Displ ay.
Reset Stats
Using LOWER button, selec t RESET
STAT and hold to reset.
Unit Selection
This multifunction ga uge is factory pre-
set in Metric units but it is possibl e to
change it to Imperial units.
Using LOWER button, Select UNITS
and hold button to change units.
Setting Clock
Using LOWER button, Select CLOCK
and hold to adjust c lock .
1. Press LOWER button to s elect clock
display.
2. Push and hold LOWER bu tton for 1
second.
3. Press LOWER button to select
12:00 AM PM or 24:00 time ba s e.
4. Push and h old LOWER button to ac-
knowledge selection.
5. Press LOWER button to change
hours (hours flash).
6. Push and h old LOWER button to ac-
knowledge hour s election.
7. Press LOWER button to switch to
minutes (minutes flash).
8. Push and h old LOWER button to ac-
knowledge minutes s election.
Setting Language
The gauge display language can be
changed. Refer to an a uthoriz ed
Can-Am dea ler for lan gua ge availability
and to setup the g au ge to your prefer-
ence.
Setting Brightness
The brightness of the LCD display can
be adju ste d.
Using LOWER button, select BRIGHT-
NESS andholdbuttontochange
brightness.
Using LOWER button, adjust bright-
ness then push an d h old LOWER but-
ton to ack nowledg e selec tion.
