Canon imageCLASS MF264dw - Page 80

Electric code Name
UNIT13 Contact Image Sensor
M3 Reader Motor
M4 DADF Motor
PS6 DADF Document End Sensor
PS7 DADF Document Sensor
SL4 DADF Solenoid

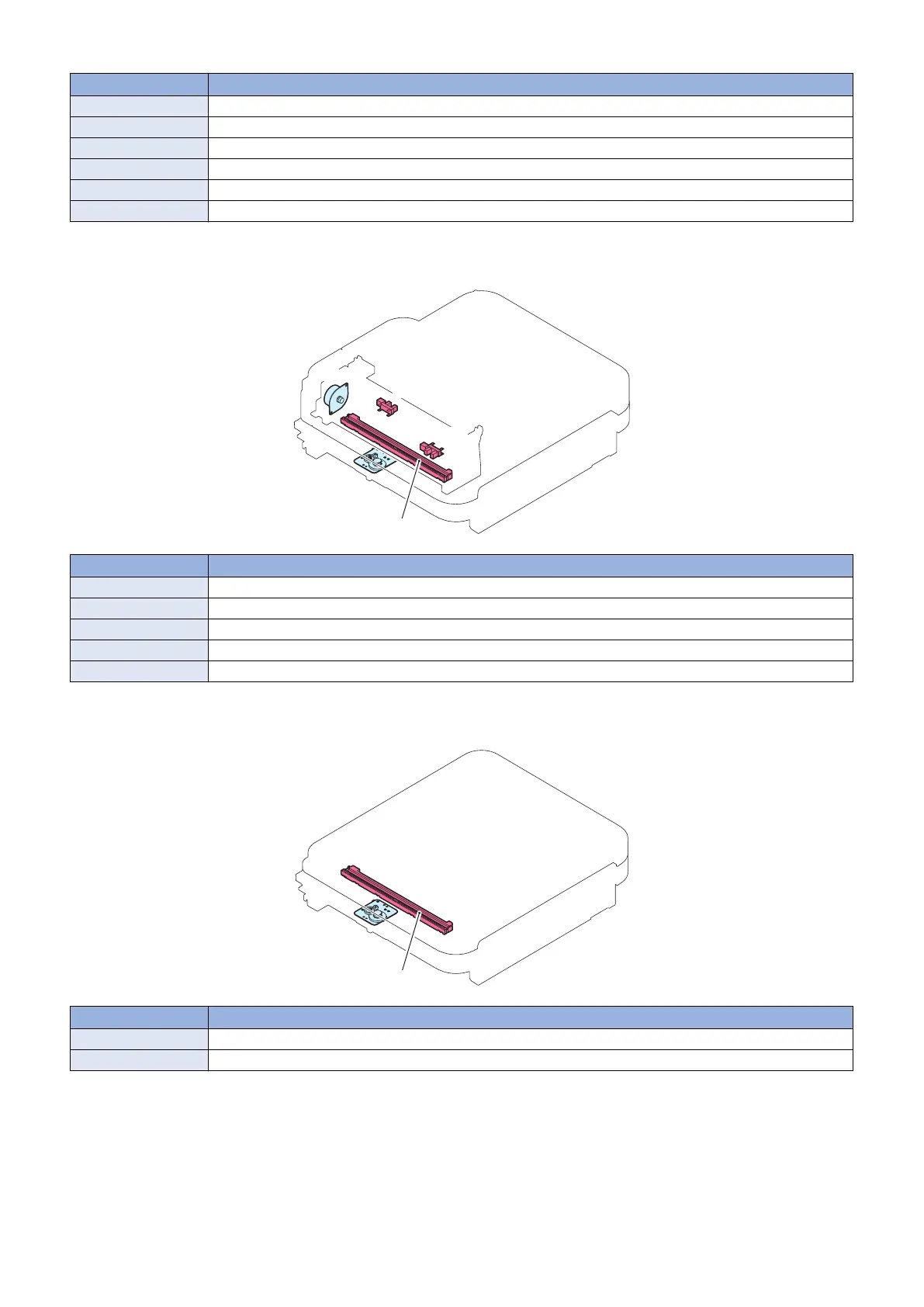

■ SADF Unit + Reader Unit
M5
M3
PS8
PS9
UNIT13
Electric code Name
UNIT13 Contact Image Sensor
M3 Reader Motor
M5 SADF Motor
PS8 SADF Document End Sensor
PS9 SADF Document Sensor
■ Copyboard Cover + Reader Unit
M3
UNIT13
Electric code Name
UNIT13 Contact Image Sensor
M3 Reader Motor
4. Parts Replacement and Cleaning
72
