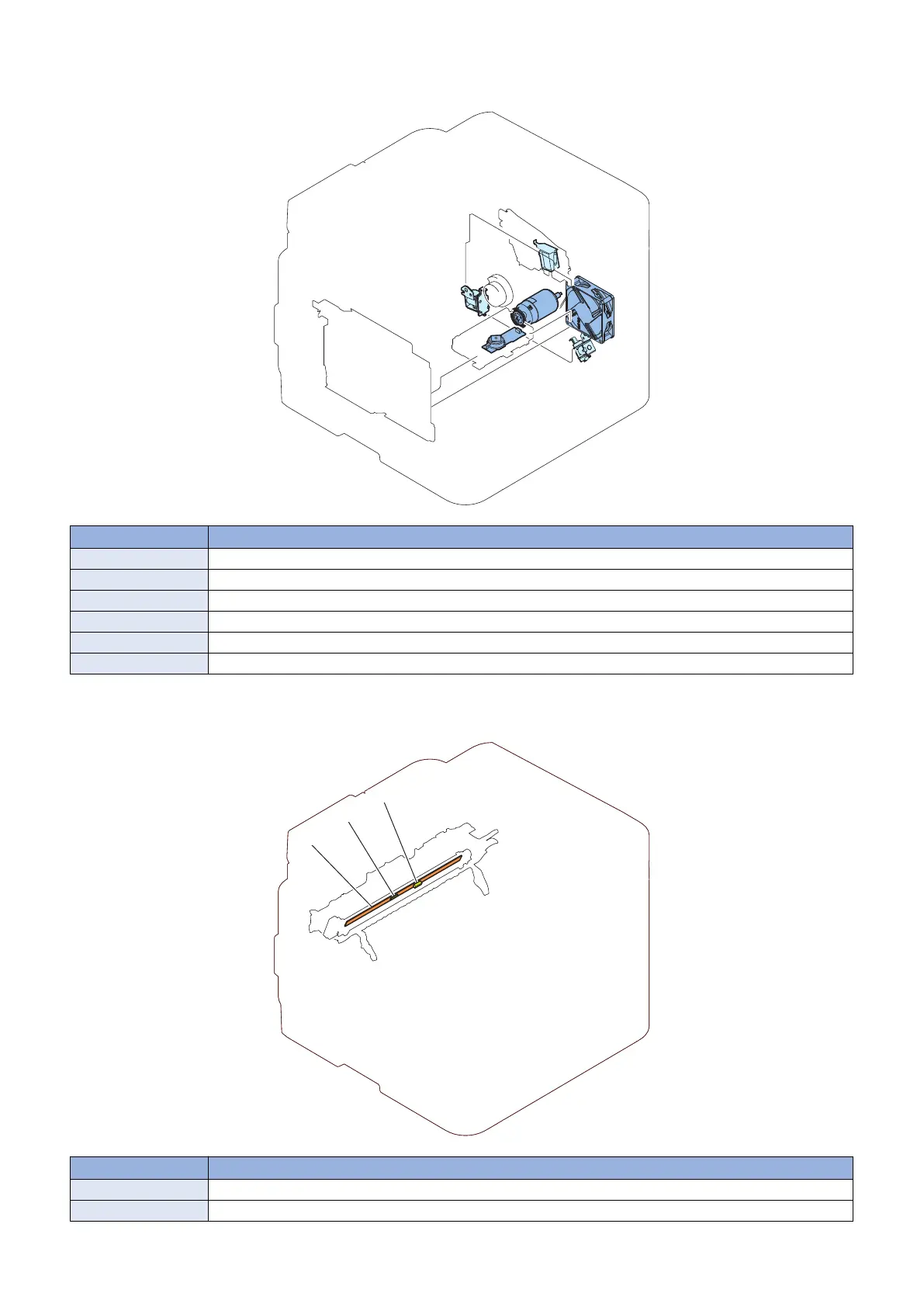

■ Motor/Fan/Solenoid
SL2
SL3
FM1
M2
SL1
M1
Electric code Name
M1 Scanner Motor
M2 Main Motor
FM1 Main Fan
SL1 Pickup Solenoid
SL2 Developer Disengagement Solenoid
SL3 Duplex Reverse Solenoid
■ Heater
TH1
TP1
H1
Electric code Name
H1 Fixing Heater
TH1 Thermistor
