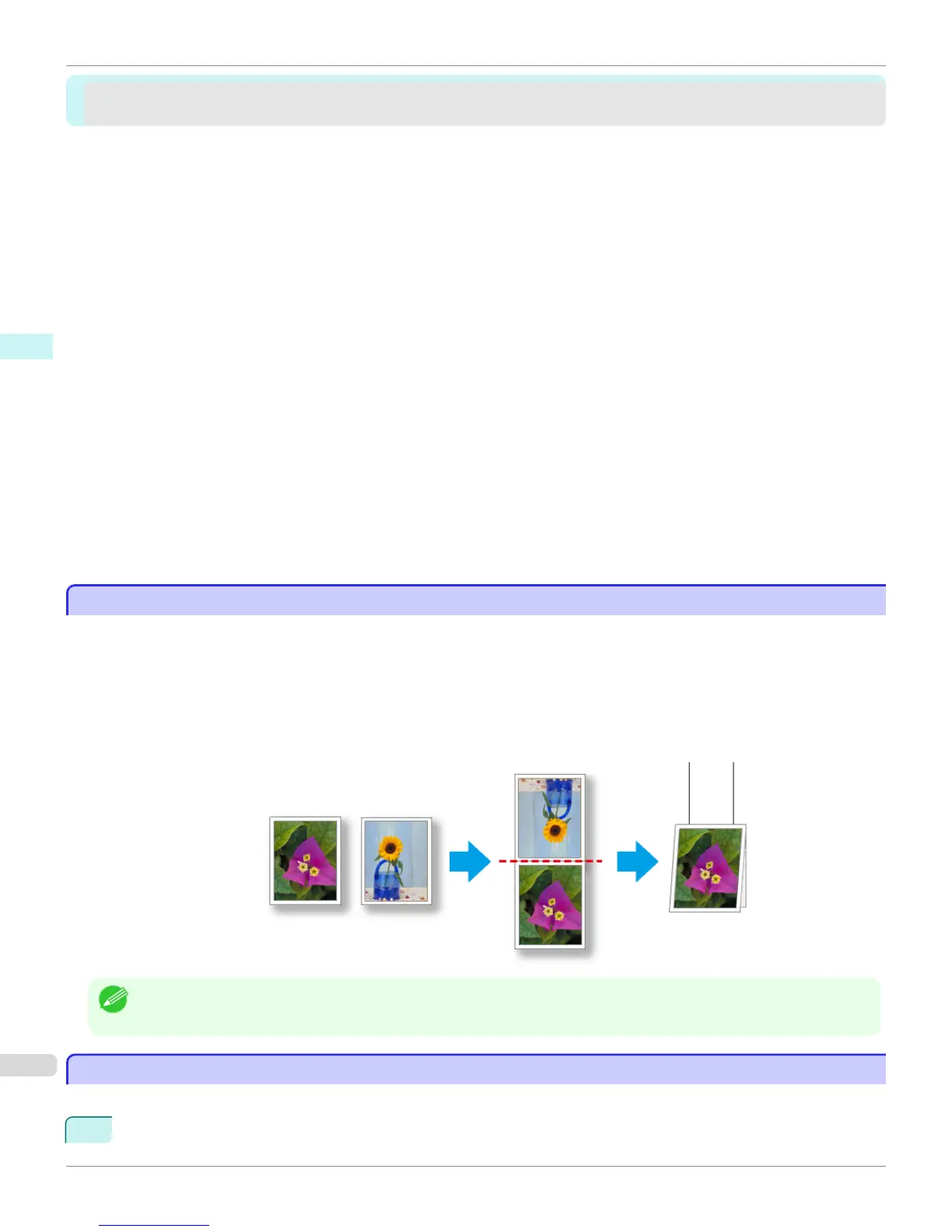

The Features of Free Layout
The Features of Free Layout
The main features of Free Layout are as follows.
• Allows you to lay out at will and print a document created with application software.
• You can not only lay out multiple pages on one page but also lay out and print a multiple-file document on one
page, or lay out and print a document created with multiple application programs on one page.
• Any two pages can be arranged and printed in a layout that becomes duplex on folding.
This can be used such as for advertising posters that are suspended from the ceiling.
Note
• The media type, image size, detailed media settings, and the printer settings can cause the actual print output to differ from
the Free Layout settings.
Starting Free Layout
Starting Free Layout
Follow the procedure below to start the Free Layout.
1 Start the apllication software which you use.
The Features of Free Layout (Windows)
iPF6400
User's Guide
Windows Software Free Layout
218
