Canon imagePROGRAF iPF6400 User Manual

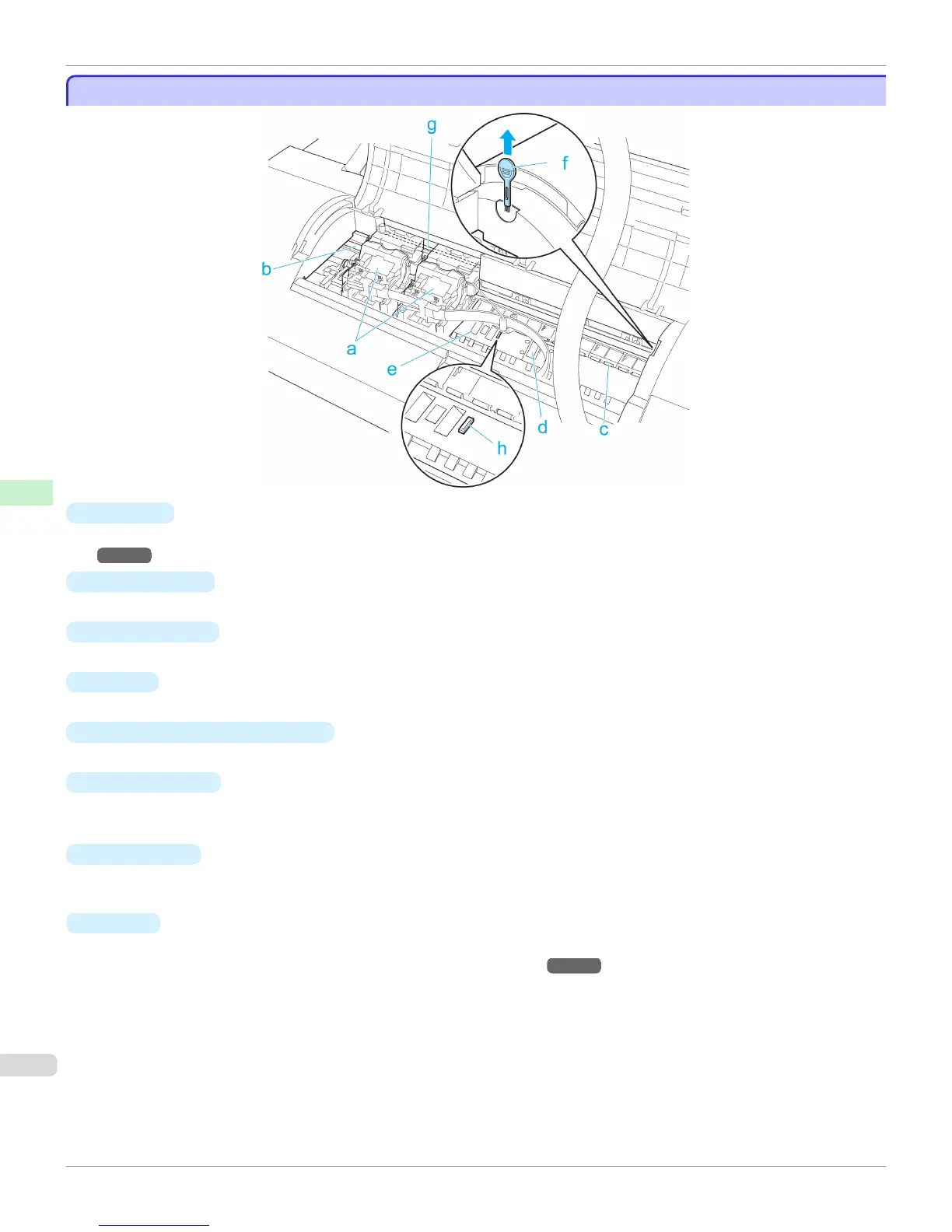

Top Cover (Inside)
Top Cover (Inside)
a
Carriage
Mounts the Printhead, and moves to the left and right. This is an important part for printing. (See "Carriage.")
→P.668
b Carriage Shaft
The Carriage slides along this shaft.
c
Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
d Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
e Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
f
Cleaning Brush
When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on the Platen.
Also use the brush to move the blue Switch on the Platen.
g Linear Scale
The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when clean-
ing inside the Top Cover or clearing paper jams.
h Switch
Set the switch to the side opposite ● if the edges of printed images are blurred. Set the switch to the ● side before
borderless printing. (See "Setting the Blue Switch on the Platen.") →P.896
Top Cover (Inside)
iPF6400
User's Guide
Printer Parts Printer parts
666

Canon imagePROGRAF iPF6400 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Grey, Magenta, Matte black, Photo cyan, Photo grey, Photo magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO
Maximum print size	-
Maximum roll length	18 m
ISO A-series sizes (A0...A9)	A1, A2
ISO B-series sizes (B0...B9)	B2
Internal memory	384 MB
Sound pressure level (printing)	47 dB
Power supply	100 W
Power consumption (off)	5 W
Power consumption (standby)	6 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
USB port	No
USB 2.0 ports quantity	0
