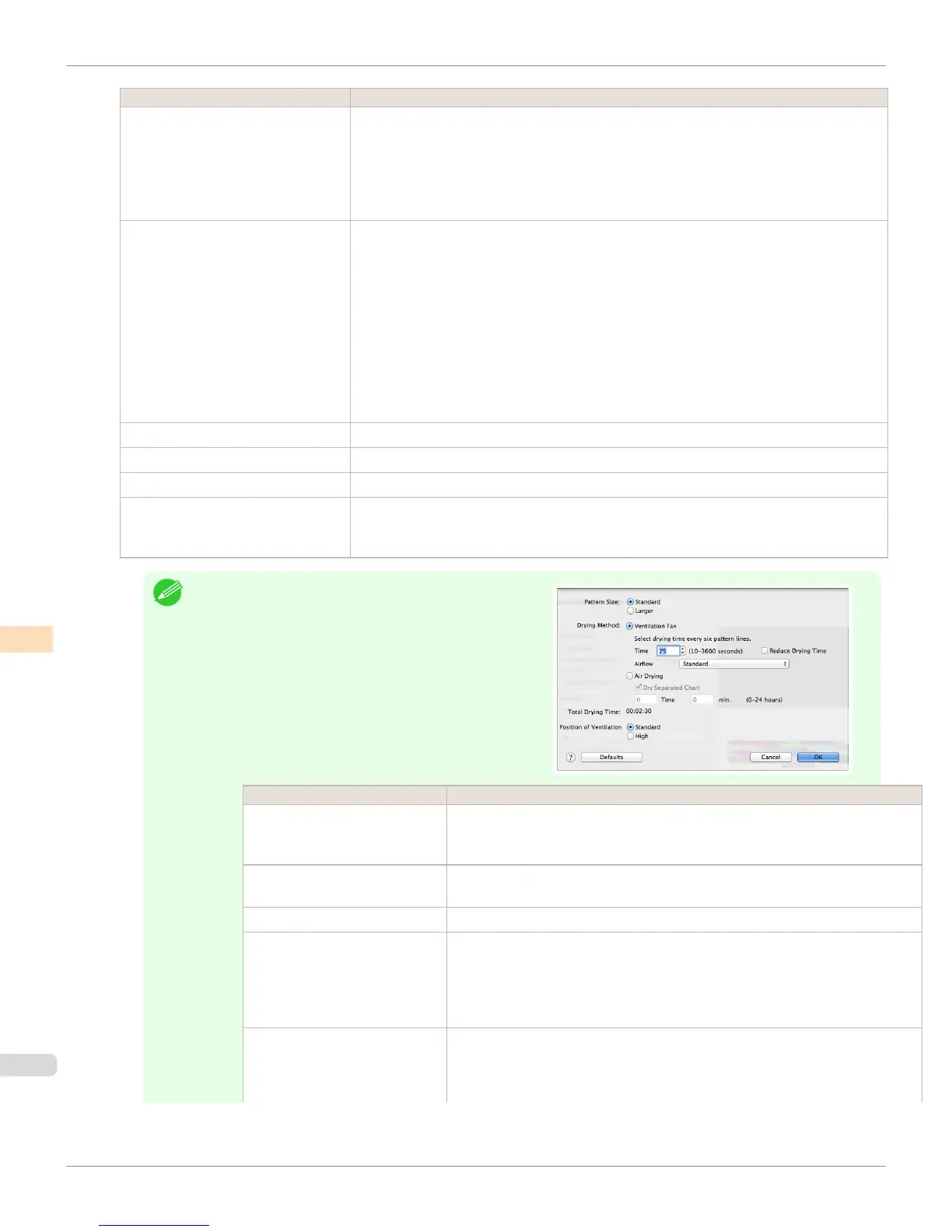

Setting Item Details
Color Measurement Preferences Configures the pattern size to print the color charts and the drying settings for the printed color
charts.
Choose Standard to print at the standard pattern size and dry using the standard setting val-
ues.
Click the Settings button to display the Color Measurement Preferences dialog box, which
allows you to configure the pattern size and drying method in detail.
Reduce Drying Time Selecting this check box reduces the drying time.
Once the time configured in the Color Measurement Env. sheet in the Preferences dialog box
has elapsed, color measurement proceeds without performing any further drying with the venti-
lation fan.
Specify a time that offers sufficient drying by air drying in the Preferences dialog box. If you
perform color measurement while the ink is not dry, the measurements may not be correct.
The Preferences dialog box is displayed when you click Preferences in the imagePROGRAF
Color Calibration Management Console menu.
If the number of patterns is small, drying will finish in a shorter amount of time than the time
configured in the Preferences dialog box. If this happens, the drying time will not be reduced
even if the Reduce Drying Time check box is selected.
Illumination Select the illumination from D50, D65, and A.
Observer Angle Selects the observer angle.
UV Cut Selects whether or not UV cut is used.
Color Measurement Value Saves the color measurement data for the color measurement values where the check box is
selected.
The Lab check box cannot be cleared.
Note
•
If you want to enlarge the color chart pattern or configure
the color chart drying settings in detail, click the Settings
button to display the Color Measurement Preferences di-
alog box.
Setting Item Details
Pattern Size Selects the pattern size of the color chart.
We recommend Larger when you want to prioritize the color measurement preci-
sion.
Drying Method Choose Ventilation Fan to dry using the ventilation fan or Air Drying to dry without
using the ventilation fan.
Ventilation Fan Configures the drying time and airflow for the ventilation fan.
Time Configures the drying time for the ventilation fan for each pattern.
The number of lines that are dried at one time by the ventilation fan varies depend-
ing on the size selected in Pattern Size.
As the time increases, the adhesion of the ink improves and the color tones become
more stable.
Reduce Drying Time Selecting this check box reduces the drying time.
Once the time configured in the Color Measurement Env. sheet in the Preferen-
ces dialog box has elapsed, color measurement proceeds without performing any
further drying with the ventilation fan.
Acquiring Color Measurement Data For Any Color Chart (Mac OS X)
iPF6400
User's Guide
Color Management Color Calibration Management Console (Mac OS X)
824
