Chapter 19
19-1
19.1 Service Tools
19.1.1 Special Tools Table
0007-1209
iR105i/iR105+ / iR9070 / iR8070
You will need the following tools in addition to the standard tools set to service the copier.

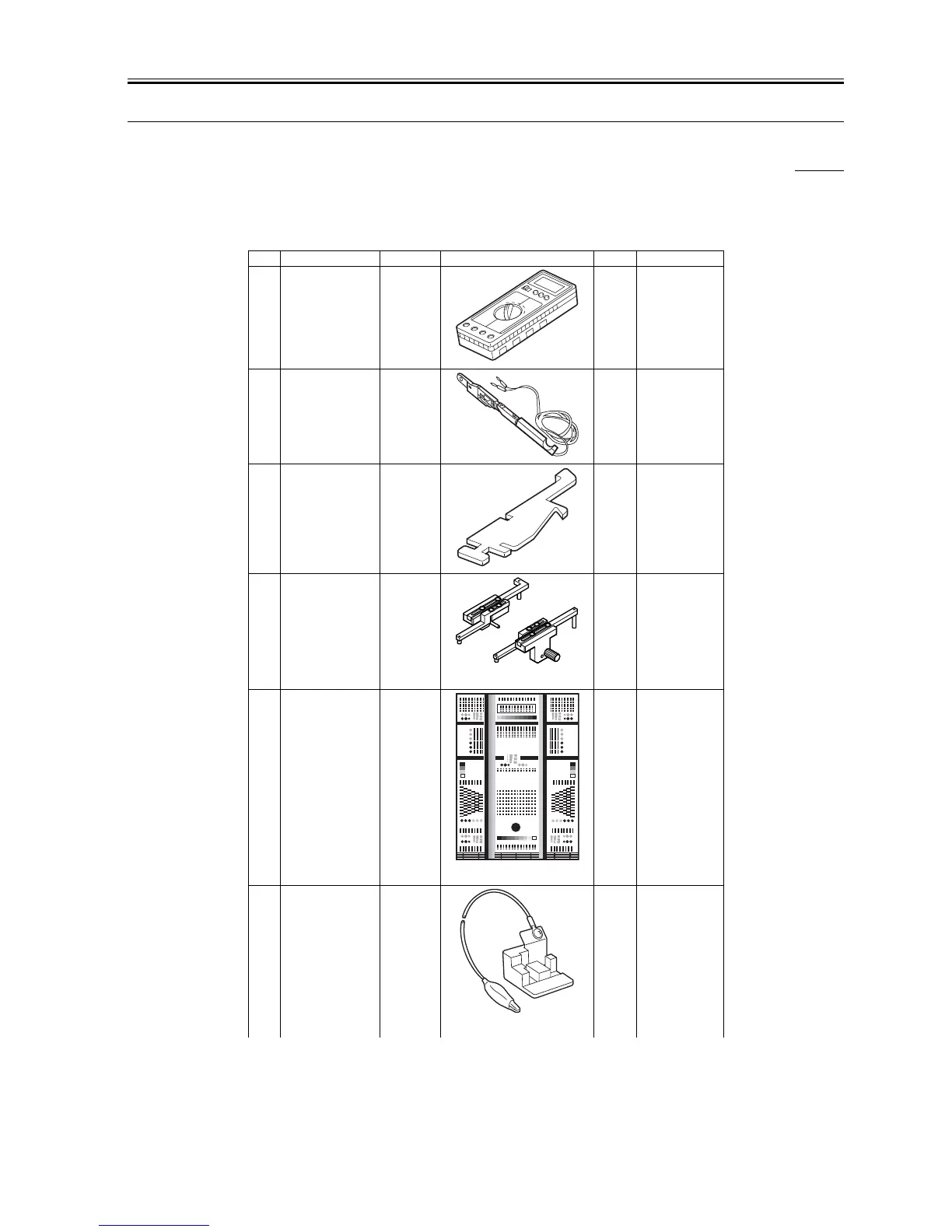

T-19-1
No. Tool name Tool No. Shape Rank* Remarks
1 Digital multimeter FY9-2002 A For adjusting the
laser intensity
together with the
laser power checker
(for electrical
checks).
2 Laser power checker FY9-4008 A For adjusting the
light intensity
together with the
digital multimeter.
3 Door switch TKN-0093 A
4 Mirror positioning tool
(front, rear)
FY9-3040 B For adjusting the
distance between
No. 1 and No. 2
mirrors.
5 NA-3 test sheet FY9-9196 A For adjusting
images and making
checks.
6 Potential sensor tester
electrode
FY9-3041 B For checking the
zero level of the
surface potential
sensor.
