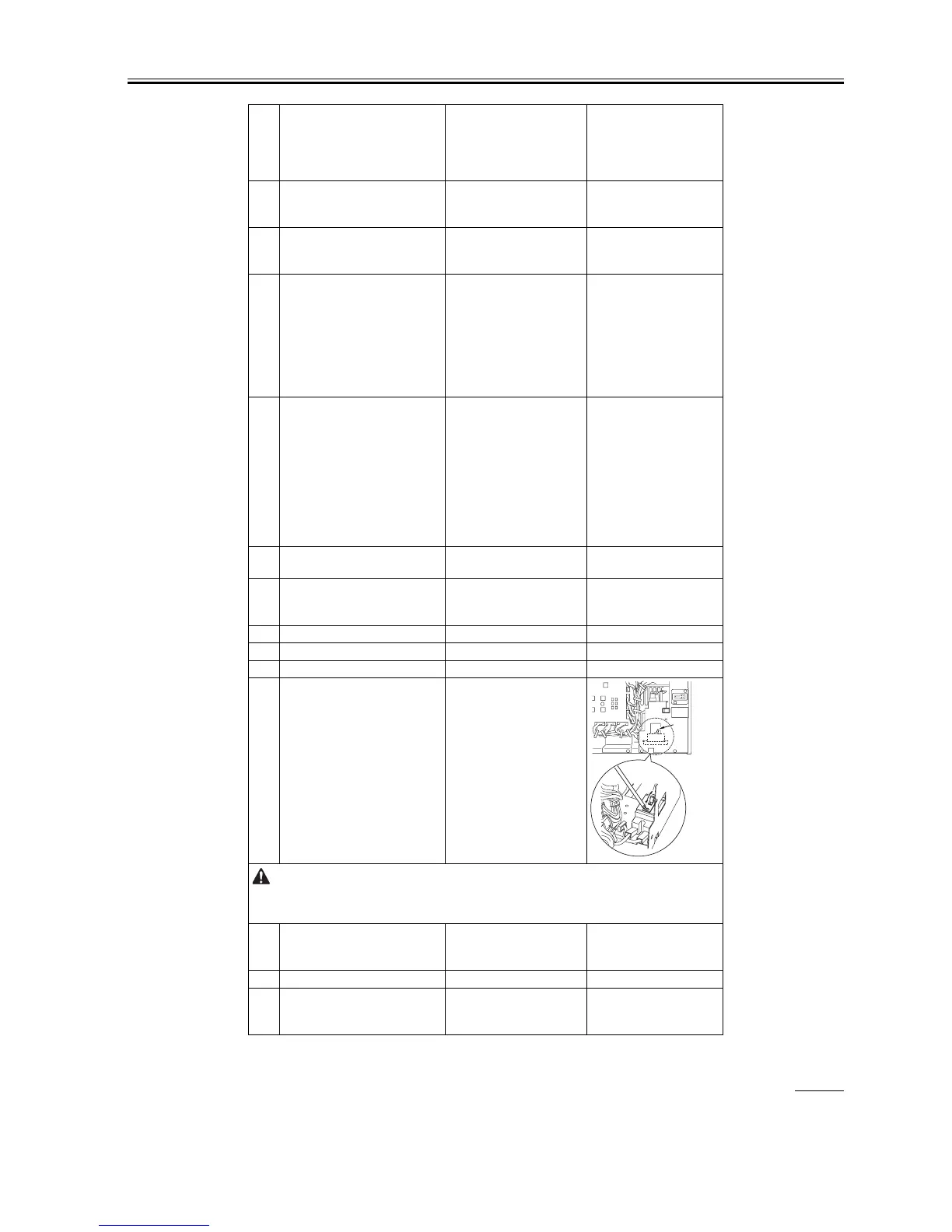

13.3.4 Scheduled Service Chart
0008-9076
iR85+
7 Clean the waste toner collection
case.
If more than 50% of the
waste toner is full, dispose of
the waste toner in a plastic
bag; or, replace the waste
toner collection case.
8 Clean the filters:
- Ozone filter
- Dust-proofing filter
Remove the dust collecting
on the filter surface.
9 Clean the developing assembly:
- Developing assembly member
Clean the developing
assembly
member.
10 Clean the pickup/feeding
assembly:
- Transfer guide (upper/lower)
plate
- Registration roller (upper/lower)
- Feeding belt
- Feeding rollers
11 Clean the fixing/delivery
assembly:
- Separation claw (upper/lower)
- Feeding rollers
- Inlet guide
- Web (check)
- Web oil pan
- Thermistor
- Sub thermistor
- Thermal switch
12 Clean the cleaner assembly:
- Side scarper
13 Clean the duplexing unit:
- Duplex horizontal registration
sensor
14 Clean the copyboard glass.
15 Make test copies.
16 Make sample copies.
17 Press the leakage breaker test
switch to make sure that the
breaker operates normally.
Thereafter,
turn off the power switch,
and shift the lever to ON position;
then, turn on the power switch.
Press the test switch while
the power switch is ON and
the lever [1] of the leakage
breaker is at ON; if normal,
the lever should shift to OFF
position to cut off the power
(Pay attention to the
orientation
whenever replacing the
breaker. If you have replaced
the breaker, be sure to check
its operation).
Check to make sure that the grounding is correct; otherwise, leakage may not trigger the
leakage breaker.
18 Put the sample copies in order, and
clean up the area around the
machine.
19 Record the latest counter readings.
20 Record the latest counter readings. Record the results of the
check made on the leakage
breaker in the Service Book.
