Chapter 9
9-73
Take care not to trap your hand between the grip and the rail. Do not
place the duplexing unit where it is subjected to damage.

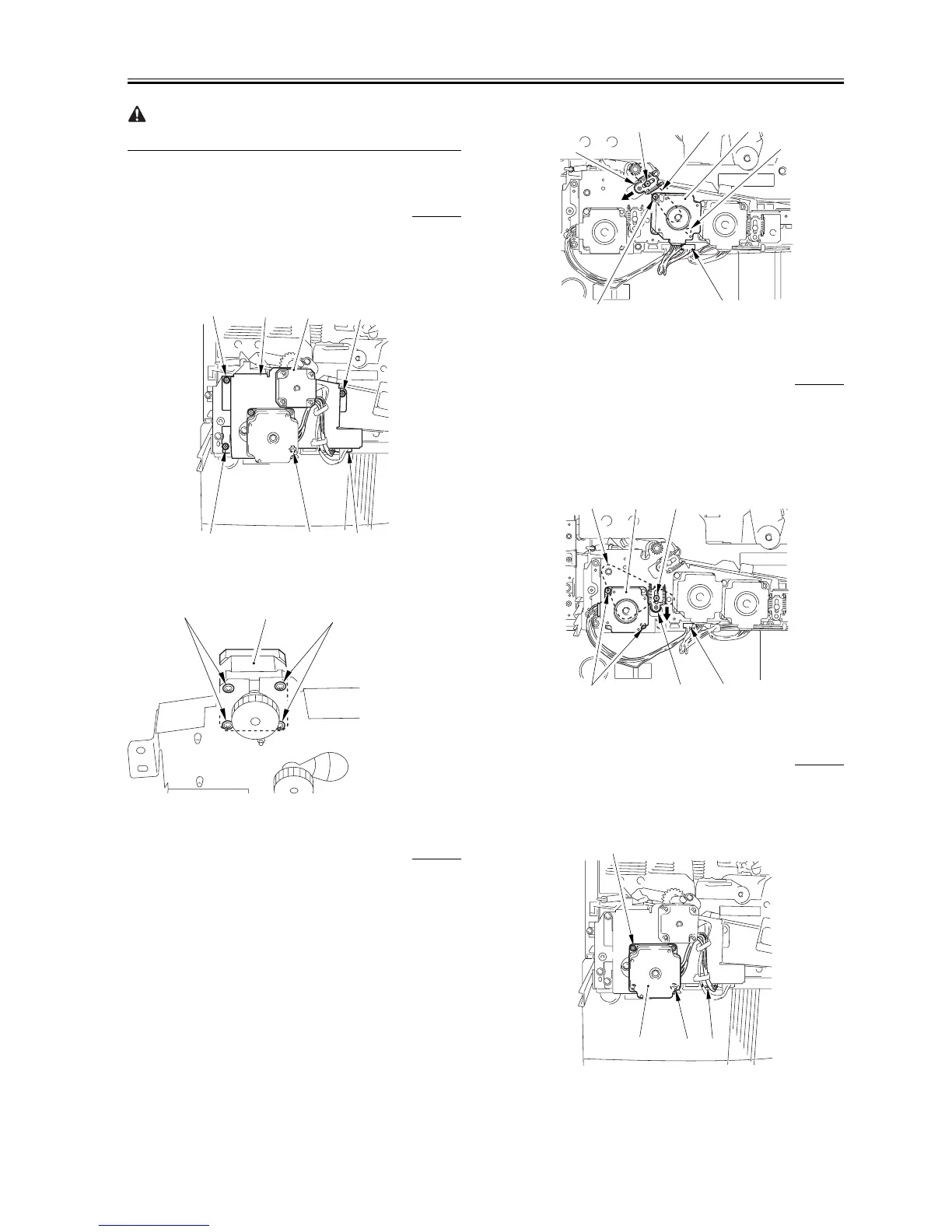

9.10.20.2 Removing the Reversal Motor
0008-8187
/ iR85+ / iR8070
1) Remove the front cover of the duplexing unit.
2) Disconnect he two connectors [1], and remove the four screws [2]
then, detach the reversal motor[3] together with the motor support
plate [4].
F-9-173
3) Remove the four screws [1], and detach the reversal motor [2].
F-9-174
9.10.20.3 Removing the Reversal Motor
0007-2870
iR105i/iR105+ / iR9070
1) Remove the duplex feed fan unit.
2) Loosen the screw [1]; then, while pulling the tension support plate [2]
in the direction of the arrow, tighten the screw [1] (to loosen the
tension of the belt [2]).
3) Disconnect the connector [4], and remove the 2 screws [5]; then,
detach the reversal motor [6].
F-9-175
9.10.20.4 Removing the Duplex Left Feed Motor
0007-2871
iR105i/iR105+ / iR9070 / iR85+ / iR8070
1) Remove the duplex feed fan unit.
2) Loosen the screw [1]; then, while pulling the tension support plate [2]
in the direction of the arrow, tighten the screw [1] (to loosen the
tension of the belt [3]).
3) Disconnect the connector [4], and remove the 2 screws [5]; then,
detach the duplex left feed motor [6].
F-9-176
9.10.20.5 Removing the Lower Feed Motor
0008-8188
/ iR85+ / iR8070
1) Remove the duplexing unit front cover (four screws, three knobs).
2) Disconnect the connector [1], and remove the two screws [2]; then,
detach the lower feed motor [3].
F-9-177
[2]
[2]
[4]
[2]
[3]
[2]
[1]
[1]
[1]
[2]
[2]
[1]
[3] [6]
[5]
[5]
[4]
[3]
[1]
[6]
[5]
[2]
[4]
[2]
[3] [2] [1]
