Chapter 14
14-60

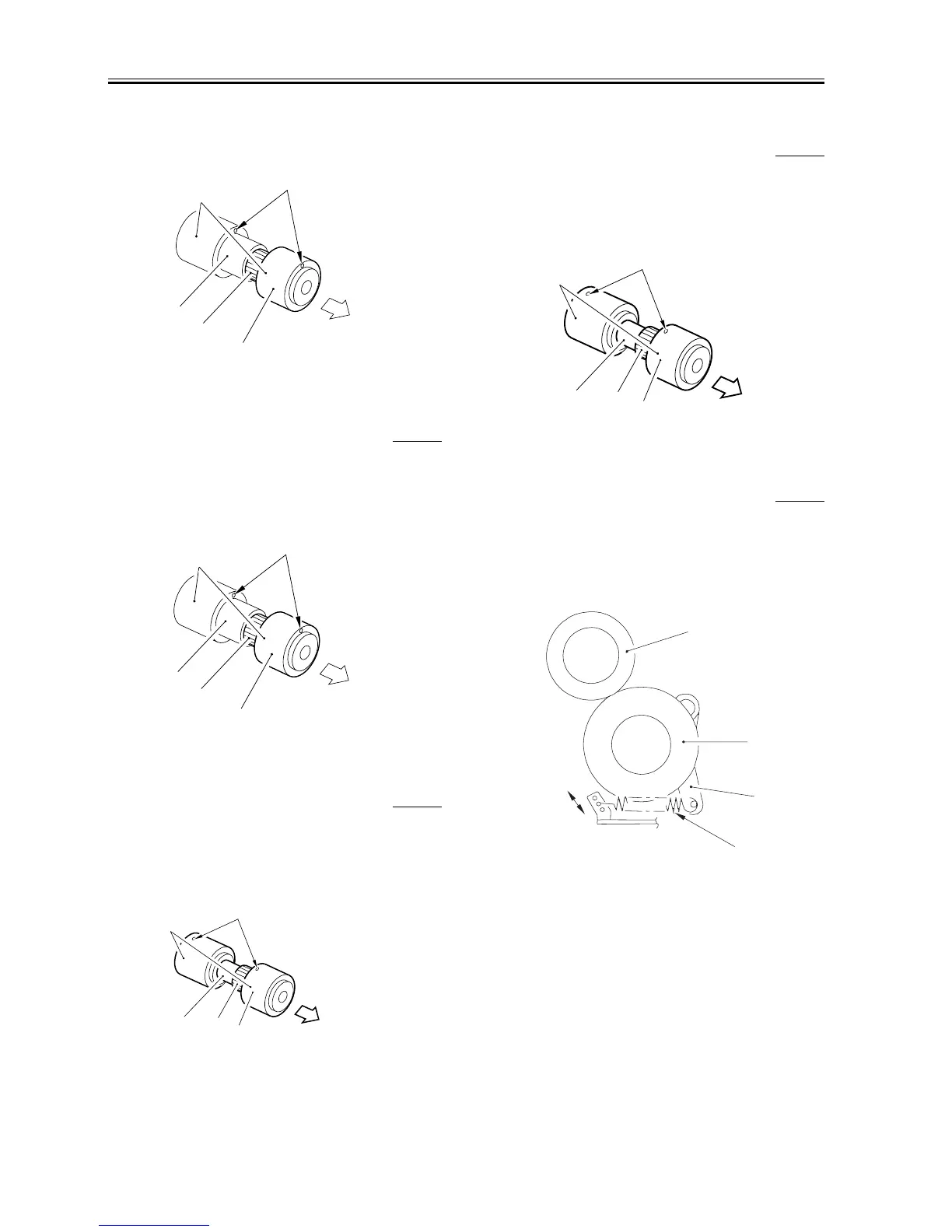

When mounting the feeding roller assembly [1] to the manual feed tray
pickup assembly, be sure that the belt pulley [2] is toward the front of
the machine. When mounting the feeding roller [3] to the feeding roller
shaft [4], be sure that the round marking [5] is toward the front of the
machine.
F-14-119
14.8.10 Orientation for the Feeding Roller of the
Manual Feed Tray
0008-8378
/ iR85+ / iR8070
When mounting the feeding roller assembly [1] to the manual feed tray
pickup assembly, be sure that the belt pulley [2] is toward the front of
the machine. When mounting the feeding roller [3] to the feeding roller
shaft [4], be sure that the round marking [5] is toward the front of the
machine.
F-14-120
14.8.11 Orientation of the Feeding Roller of the Side
Paper Deck
0007-0576
iR105i/iR105+ / iR9070
When mounting the feeding roller assembly [1] to the side paper deck
pickup assembly, be sure that the belt pulley [2] is toward the front of
the machine. When mounting the feeding roller [3] to the feeding roller
shaft [4], be sure that the round marking [5] is toward the rear of the
machine.
F-14-121
14.8.12 Orientation of the Feeding Roller of the Side
Paper Deck
0008-8379
/ iR85+ / iR8070
When mounting the feeding roller assembly [1] to the side paper deck
pickup assembly, be sure that the belt pulley [2] is toward the front of
the machine. When mounting the feeding roller [3] to the feeding roller
shaft [4], be sure that the round marking [5] is toward the rear of the
machine.
F-14-122
14.8.13 Adjusting the Pressure of the Deck/Cassette
Separation Roller
0007-0577
iR105i/iR105+ / iR9070
If double feeding or pickup failure occurs during pickup, adjust the
position of the pressure spring of the separation roller.
- If double feeding occurs, move the hook of the spring in the direction
of arrow B.
- If pickup failure occurs, move the hook of the spring in the direction of
A.
F-14-123
T-14-9
(front)
[3]
[4]
[2]
[1]
[5]
(front of
machine)
[3]
[4]
[2]
[1]
[5]
(front of machine)
[3]
[4]
[2]
[1]
[5]
(front)
[3]
[4]
[2]
[1]
[5]
[1]
[2]
[3]
[4]
A
B
[1] Feeding roller [2] Separation roller
