Chapter 4
4-20
F-4-19
4.5.5 Construction of the Image Processing Module
0008-8670
iR85+
The machine's major image processing is executed by the main controller PCB.

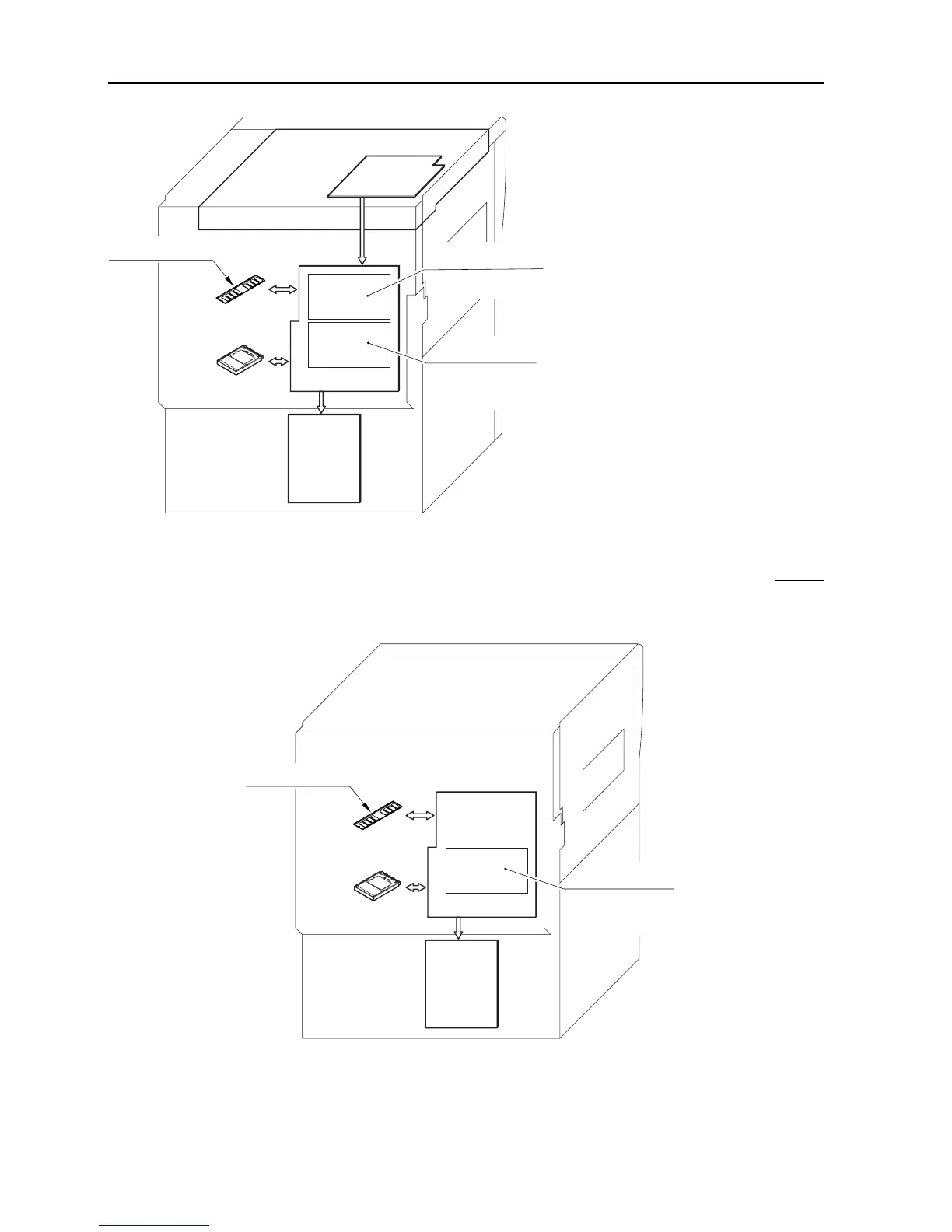

The following shows the construction of the modules associated with image processing:
F-4-20
SDRAM
Reader controller PCB
HDD
- image memory
- program (temporary storage)
Processes the image
data read by the reader unit.
Reader unit input
processing block
Processes image data for
output to the printer unit.
Printer unit output image
processing block
Main controller PCB
DC controller PCB
Reader unit
SDRAM
HDD
- image memory
- program (temporary storage)
Processes image data for
output to the printer unit.
Printer unit output image
processing block
Main controller PCB
DC controller PCB
