Chapter 15
15-21

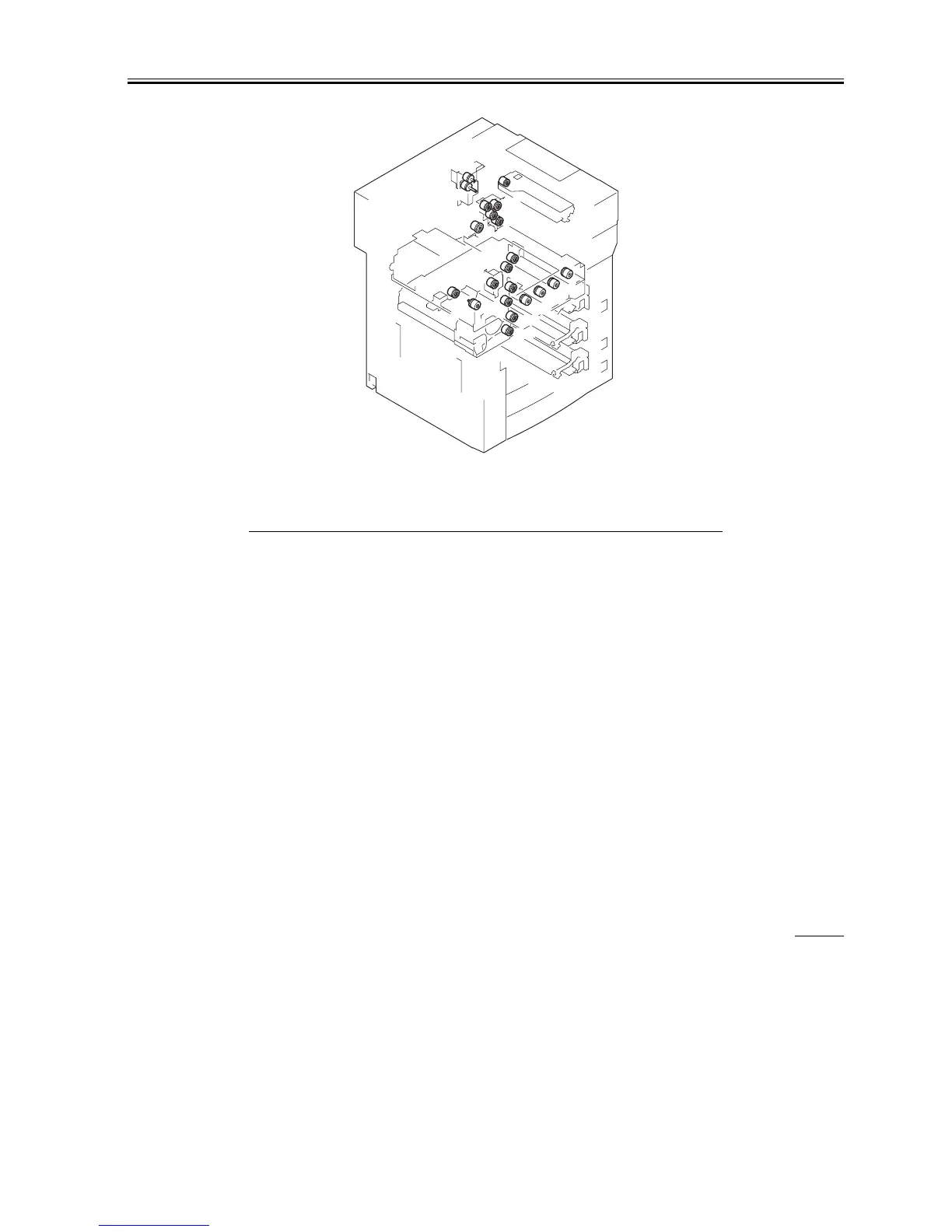

F-15-12
T-15-4
15.3.1.4 Solenoids
0007-0931
iR105i/iR105+ / iR9070
Name Notation Function
Inside hopper magnet roller drive clutch CL1 Drives the inside hopper magnet roller.
Registration clutch CL2 Drives the registration roller.
Registration brake clutch CL3 Drives the registration brake.
Development 1 clutch CL4 Drives the developing cylinder (1).
Pre-registration clutch CL5 Drives the pre-registration roller.
Pre-registration brake clutch CL6 Drives the pre-registration brake.
Manual feed tray pickup clutch CL7 Drives the manual feed tray pickup roller.
Vertical path 1 clutch CL8 Drives the vertical path 1 roller.
Vertical path 2 clutch CL9 Drives the vertical path 2 roller.
Deck (right) pickup clutch CL10 Drives the deck (right) pickup roller.
Deck (left) pickup clutch CL11 Drives the deck (left) pickup roller.
Cassette 3 pickup clutch CL12 Drives the cassette 3 pickup roller.
Vertical path 3 clutch CL13 Drives the vertical path 3 roller.
Cassette 4 pickup clutch CL14 Drives the cassette 4 pickup roller.
Vertical path 4 clutch CL15 Drives the vertical path 4 roller.
Lower feeder middle clutch CL16 Dives the lower feeder middle roller.
Lower feeder right clutch CL17 Drives the lower feeder right roller.
Manual feed tray feeding clutch CL18 Drives the manual feed tray drive roller.
Deck (left) feeding clutch CL19 Drives the deck (left) feeding roller.
Developing 2 clutch CL20 Drives the developing cylinder (2).
Delivery speed switching clutch CL21 Switches delivery speed.
CL18
CL7
CL5
CL6
CL1
CL4
CL9
CL2
CL17
CL16
CL19
CL14
CL15
CL13
CL12
CL8
CL10
CL11
CL21
CL3
CL20
