Chapter 9
9-39
F-9-44

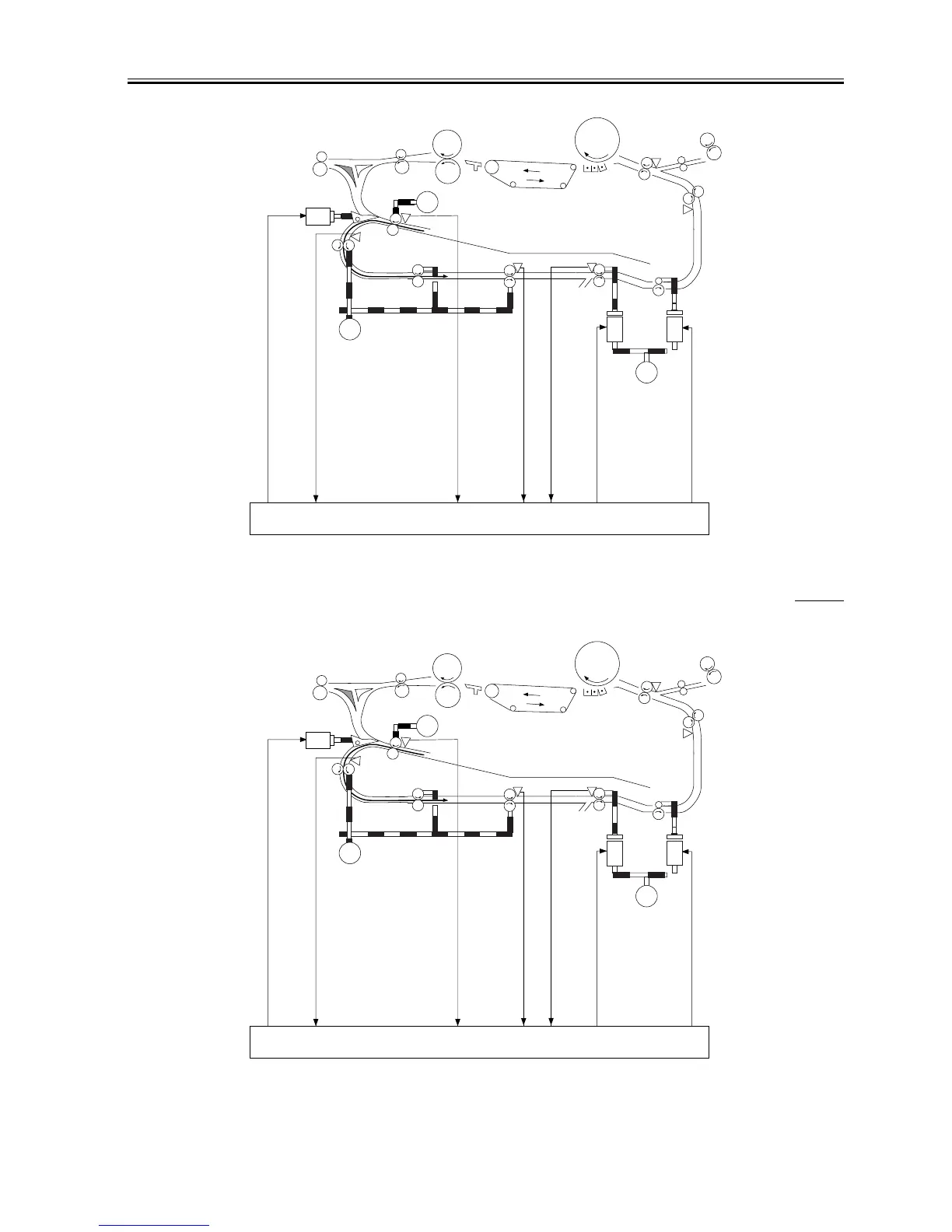

9.8.4 Printing on the Second Side
0008-8990
iR85+
F-9-45
Lower feeder
motor
Pickup motor
PS14
PS12
PS13
PS5
Reversal motor
M11
SL11
M12
J519-B5
Pre-confluence detection
signal (PS14S)
DC controller PCB
PS15
Reversing flapper solenoid drive signal (SL11D)
U-turn paper detection signal (PS13S)
Post-confluence paper detection signal (PS15S)
J519-B7
J519-B8
J519-B9
Duplexing reversal paper
detection signal (PS12S)
J519-B6
CL16
M2
Lower feeding middle clutch drive
signal (CL16D)
Lower feeding right clutch drive signal (CL17D)
J519-B9
J519-B9
CL17
Lower feeder
motor
Pickup motor
PS14
PS12
PS13
PS5
Reversal motor
M11
SL11
M12
J519-B5
Pre-confluence detection
signal (PS14S)
DC controller PCB
PS15
Reversing flapper solenoid drive signal (SL11D)
U-turn paper detection signal (PS13S)
Post-confluence paper detection signal (PS15S)
J519-B7
J519-B8
J519-B9
Duplexing reversal paper
detection signal (PS12S)
J519-B6
CL16
M2
Lower feeding middle clutch drive
signal (CL16D)
Lower feeding right clutch drive signal (CL17D)
J519-B9
J519-B9
CL17
