Canon ImageRunner iR8500 Series User Manual

Chapter 5
5-46

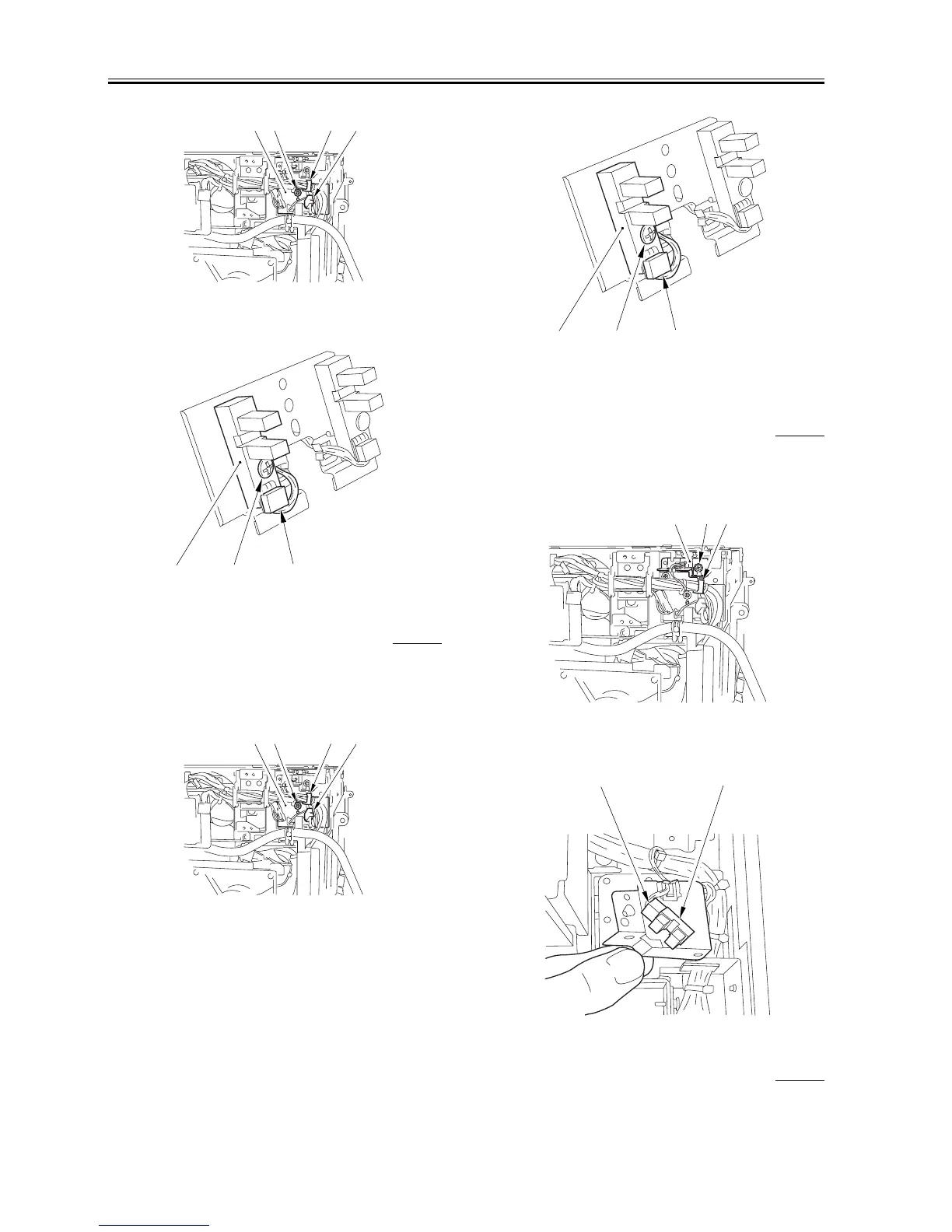

F-5-144
3) Disconnect the connector [1], and remove the screw [2]; then, detach
the scanner home position sensor [3].
F-5-145
5.4.14.3 Removing the Scanner Home Position Sensor
0007-2549
iR105i/iR105+ / iR9070
1) Remove the transformer unit.
2) Free the harness from the wire saddle [1]; then, disconnect the
connector [2], remove the screw [3], and detach the sensor mounting
plate [4].
F-5-146
3) Disconnect the connector [1], and remove the screw [2]; then, detach
the scanner home position sensor [3].
F-5-147
5.4.15 Copyboard Glass Sensor
5.4.15.1 Removing the Copyboard Glass Sensor
0007-2552
iR105i/iR105+ / iR9070
1) Remove the transformer unit.
2) Free the harness from the wire saddle [1], and remove the screw [2];
then, detach the sensor mounting plate [3].
F-5-148
3) Disconnect the connector [1], and detach the copyboard glass sensor
[2].
F-5-149
5.4.15.2 Removing the Copyboard Glass Sensor
0008-8024
[1] [2][3][4]
[3]
[2]
[1]
[1] [2][3][4]
[3]
[2]
[1]
[2] [1][3]
[1]
[2]
