Canon ImageRunner iR8500 Series User Manual

Chapter 11
11-27

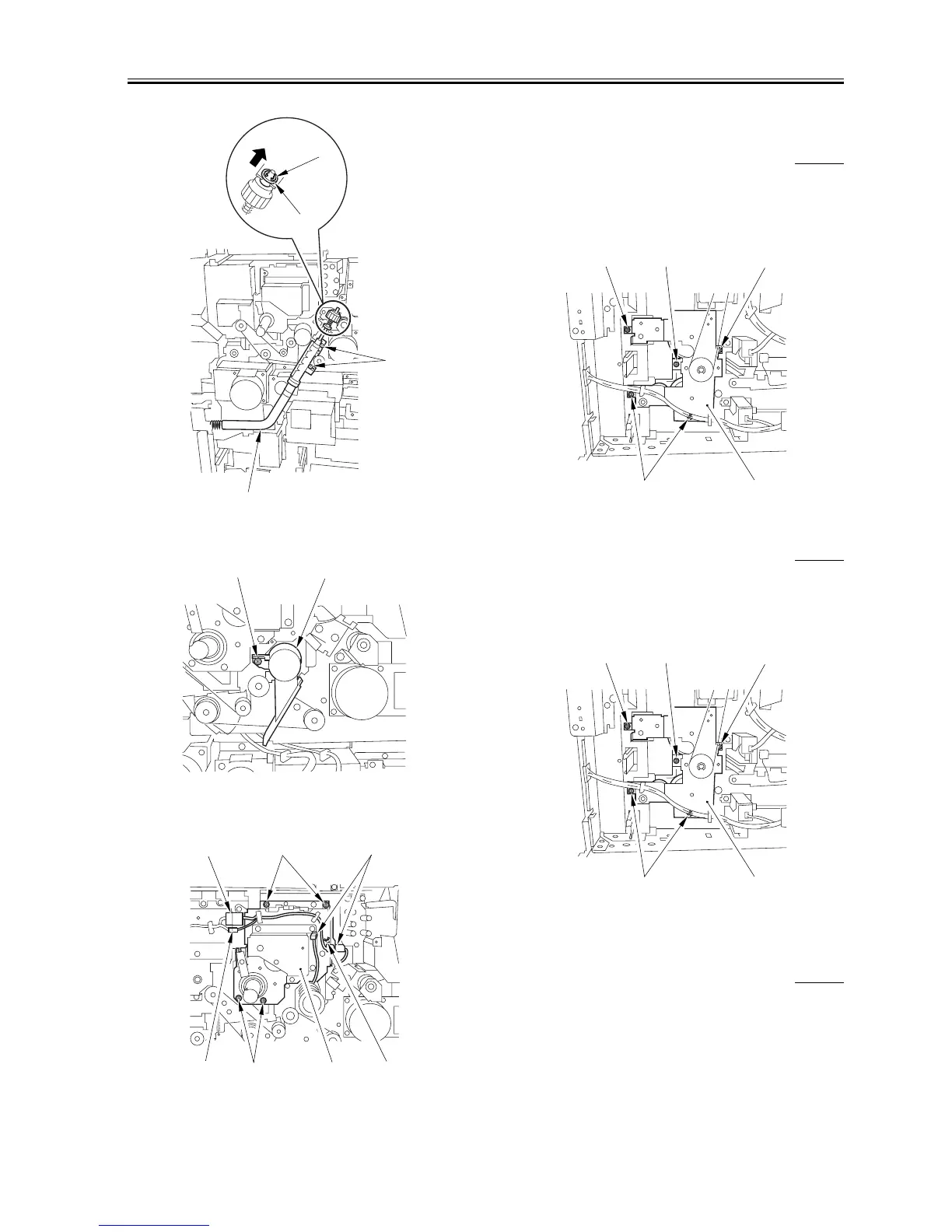

F-11-42
66) Remove the screw [1], and detach the drum cleaner pipe cover [2].
F-11-43
7) Disconnect the 4 connectors [1], and remove the 5 screws [2]; then,
detach the drum drive assembly [3].
F-11-44
11.5.10 Cassette Pickup Drive Assembly
11.5.10.1 Removing the Cassette Pickup Drive Assembly
0007-3073
iR105i/iR105+ / iR9070
1) Remove the waste toner case base.
2) Remove the cassette pickup assembly (upper, lower).
3) Remove the 5 screws [1], and detach the cassette pickup drive
assembly [2].
F-11-45
11.5.10.2 Removing the Cassette Pickup Drive Assembly
0008-9283
/ iR85+ / iR8070
1) Remove the waste toner case base.
2) Remove the cassette pickup assembly (upper, lower).
3) Remove the 5 screws [1], and detach the cassette pickup drive
assembly [2].
F-11-46
11.5.11 Toner Cartridge Drive Assembly
11.5.11.1 Removing the Toner Cartridge Drive Assembly
0007-1975
iR105i/iR105+ / iR9070 / iR85+ / iR8070
1) Remove the upper right cover.
2) Open the toner cartridge cover, and slide out the toner cartridge.
3) Remove the four screws [1], and disconnect the connector [2]; then,
detach the toner cartridge drive assembly [3].
[2]
[3]
[4]
[1]
[1]
[2]
[2]
[1]
[1]
[1]
[2]
[2]
[3]
[1]
[1]
[1]
[1]
[2]
[1]
[1]
[1]
[1]
[2]
