Chapter 11
11-47
F-11-150

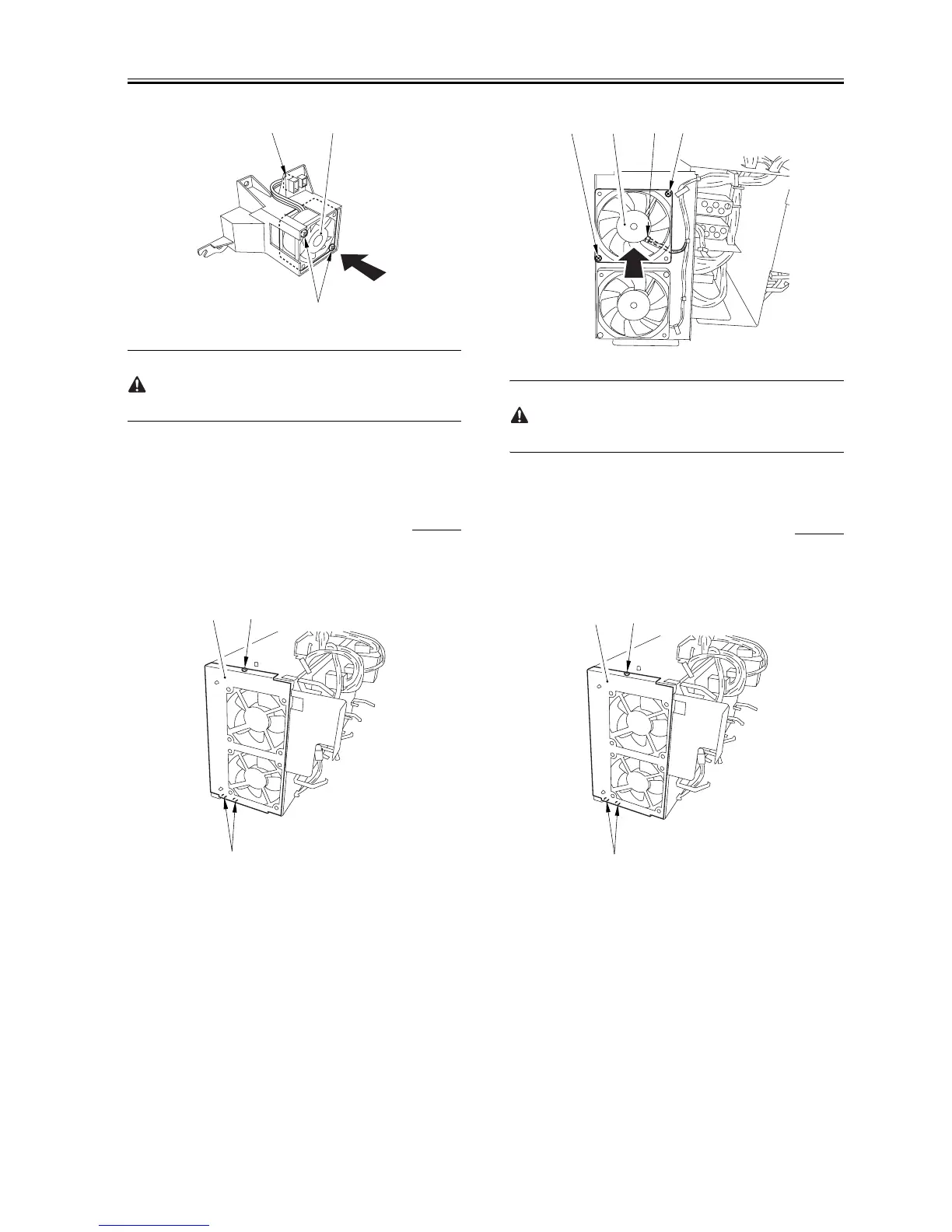

When mounting the fan, be sure that the direction of air current is as
indicated by the arrow.
11.5.36 Power Supply Cooling Fan 1
11.5.36.1 Removing the Power Supply Cooling Fan 1
(FM11)
0007-3058
iR105i/iR105+ / iR9070
1) Remove the left lower cover. (4 screw)
2) Remove the power supply unit.
3) Remove the 3 screws [1], and detach the fan mounting base [2].
F-11-151
4) Remove the 2 screws [1], and disconnect the connector [2]; then,
detach the power supply cooling fan [3].
F-11-152
When mounting the fan, be sure that the direction of air current is as
indicated by the arrow.
11.5.36.2 Removing the Power Supply Cooling Fan 1
(FM11)
0008-8263
/ iR85+ / iR8070
1) Remove the left lower cover (4 screw).
2) Remove the power supply unit.
3) Remove the 3 screws [1], and detach the fan mounting base [2].
F-11-153
4) Remove the 2 screws [1], and disconnect the connector [2]; then,
detach the power supply cooling fan [3].
[1]
[3]
[2]
[2]
[1]
[1]
[1]
[3]
[1]
[2]
[2]
[1]
[1]
