Canon ImageRunner iR8500 Series User Manual

Chapter 9
9-21
F-9-21
9.4.2 Detecting the Presence/Absence of Paper
0007-0216
iR105i/iR105+ / iR9070 / iR85+ / iR8070

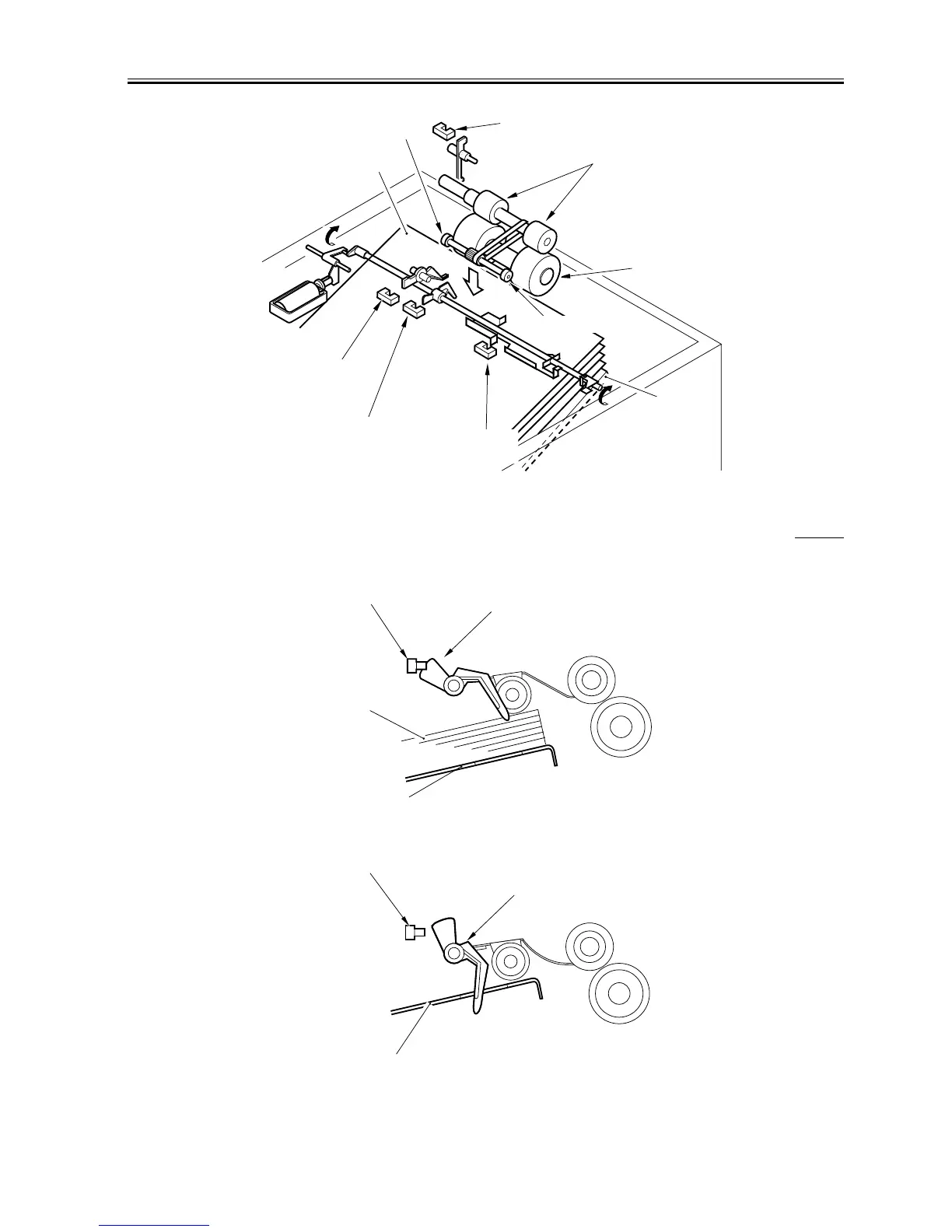

The presence/absent of paper inside the deck and the cassette is detected by the cassette paper sensor.
F-9-22
F-9-23
Lifter
Paper sensor
Feeding roller
Separation roller
Lifter position sensor
Cassette open/
closed sensor
Paper
Pickup roller
Pickup roller
Pickup sensor
Paper sensor
Paper detecting lever
Paper
Lifter
Paper sensor
Paper detecting lever
Lifter
