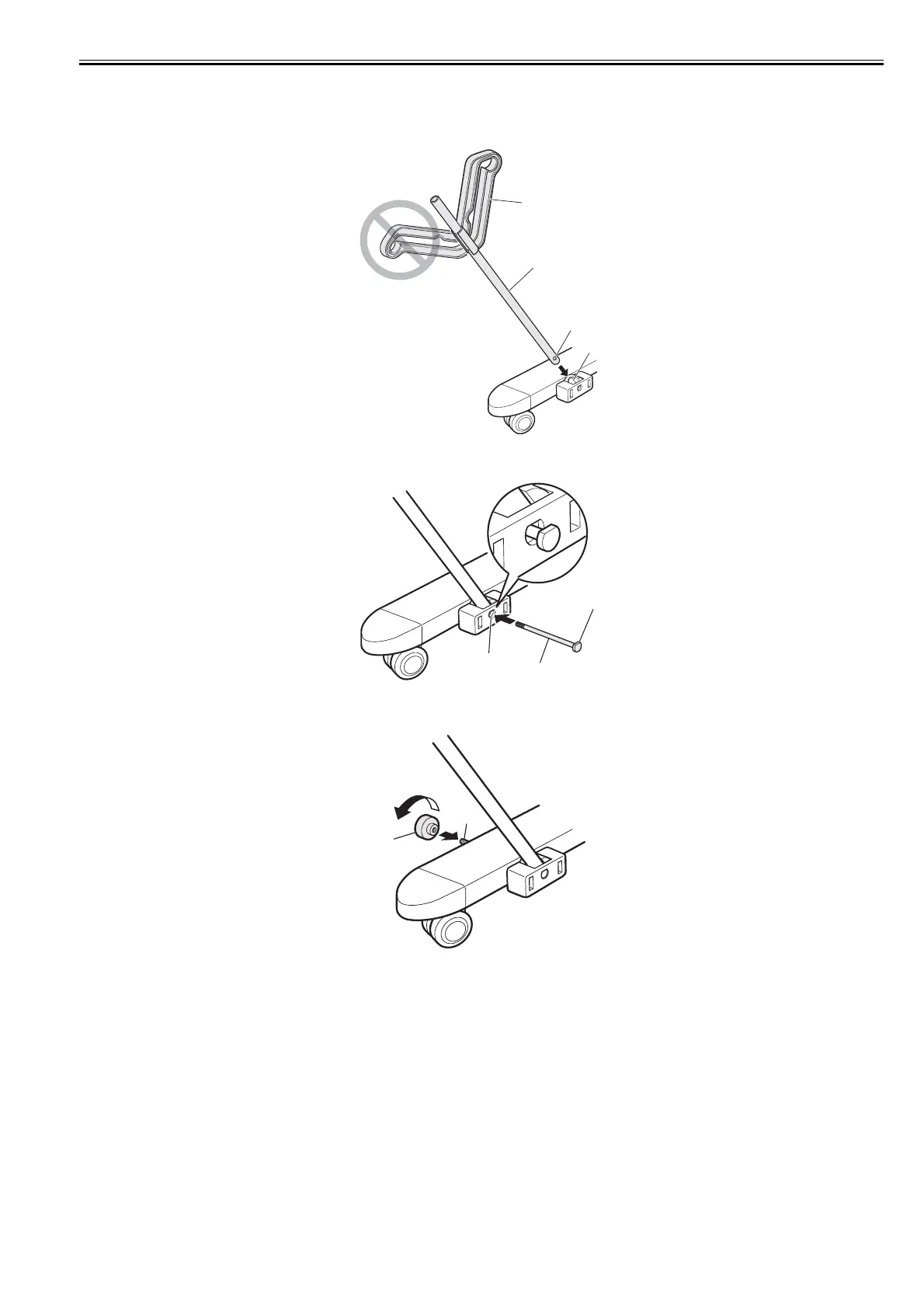

c. Assembling the Output Stacker
(1) Insert Basket Rod #1 [1] in the Basket Fastener so that the hole [2] of Basket Rod #1 and the hole [3] of the Basket Fastener on the right are aligned and the
Support Rod Holder [4] faces up.
F-3-39
(2) Insert Basket Bolts [2] into the hole of Basket Fastener, fitting the head of Basket Bolts [3] in the hole of Basket Fastener [1].
F-3-40
(3) Use Basket Decorative Nuts [2] to secure the Basket Bolts [1].
F-3-41
