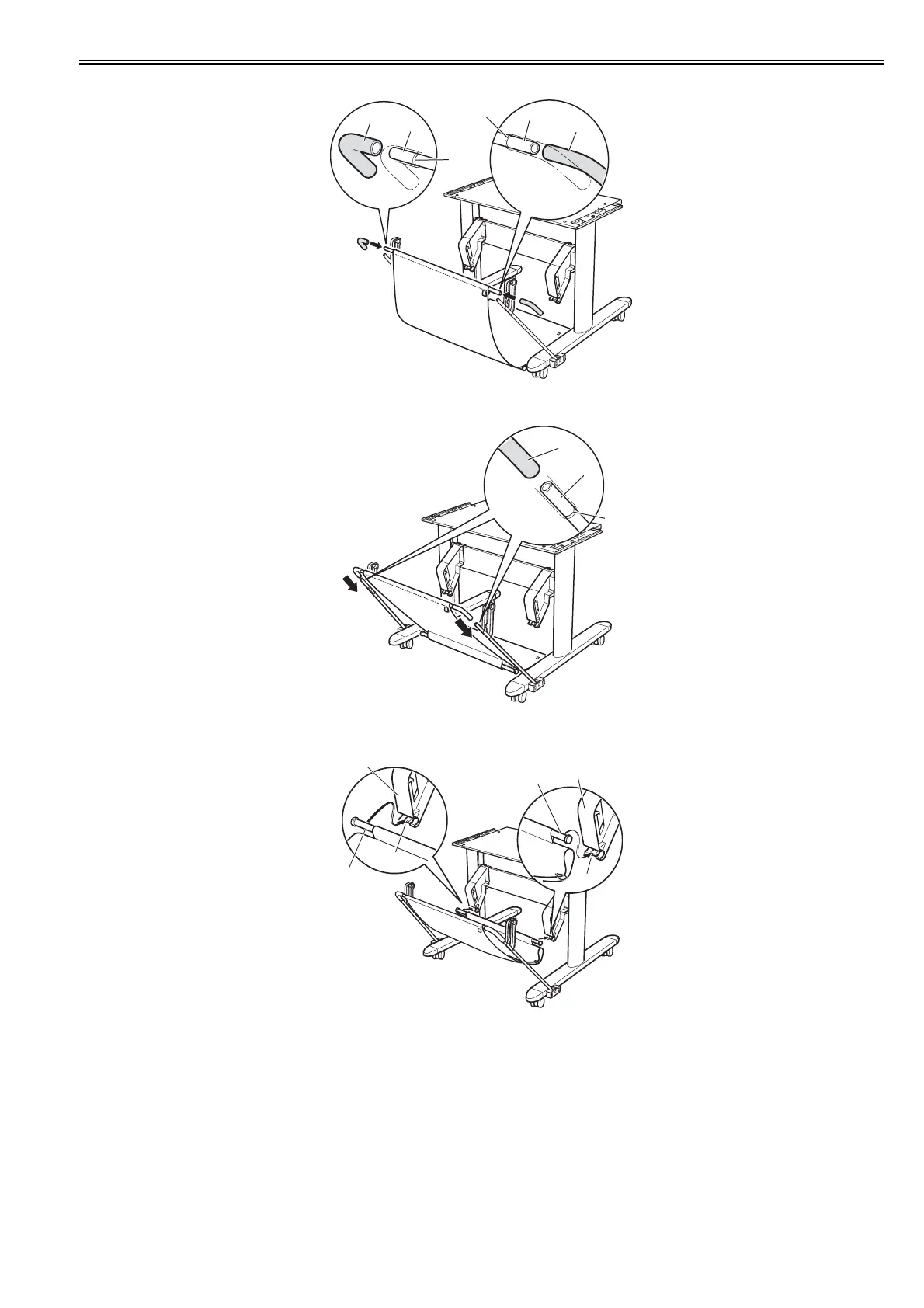

(7) Insert Basket Rod Caps [1] on both ends of Basket Rod #2 [2] until they cover the lines [3].
F-3-45
(8) Insert Basket Rod Caps [2] on both ends of Basket Rod #1 [1] until they cover the lines [3].
F-3-46
(9) Insert Basket Rod #3 [1] in the holder groove [3] on the bottom of the Basket Arm [2].
F-3-47
