r) Upper front cover
Removing the upper front cover
1) When removing the upper front cover[3], open the top cover, and then remove left circle cover, tank cover, left cover, right circle cover, right upper cover, op-
eration panel, right cover, and exhaust filter.

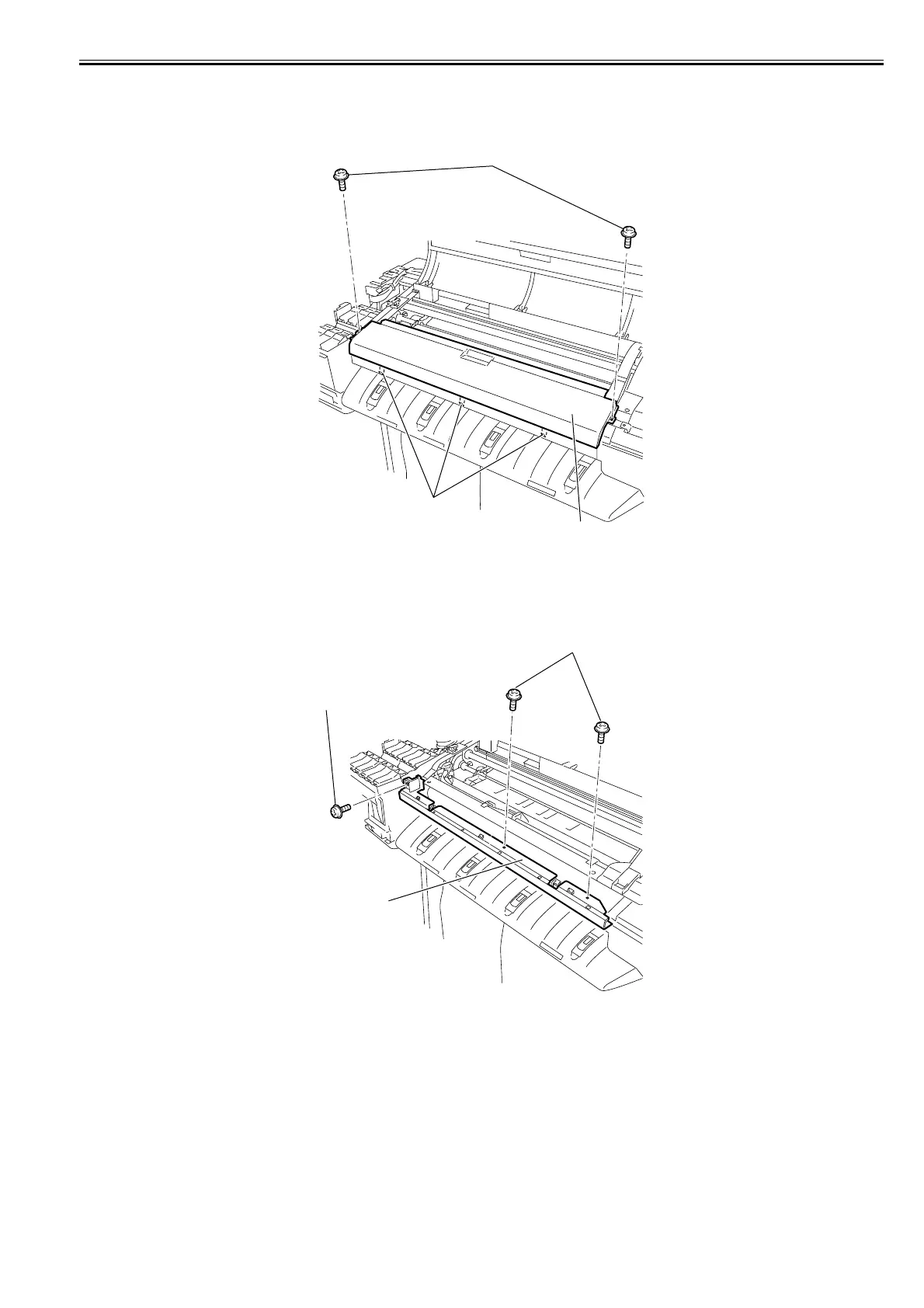

2) Remove the two screws[1], and then remove the upper front cover[3] while releasing the three hooks[2].
F-4-26
s) Lower front cover
Removing the lower front cover
1) When removing the lower front cover[3], open the top cover, and then remove the roll feed unit, left circle cover, tank cover, right circle cover, right upper cover,
operation panel, upper front cover, right cover, and exhaust filter.
2) Remove the three screws[1] and release the harness to remove the lower front cover[2].
F-4-27
[2]
[3]
[1]
[2]
[1]
[1]
