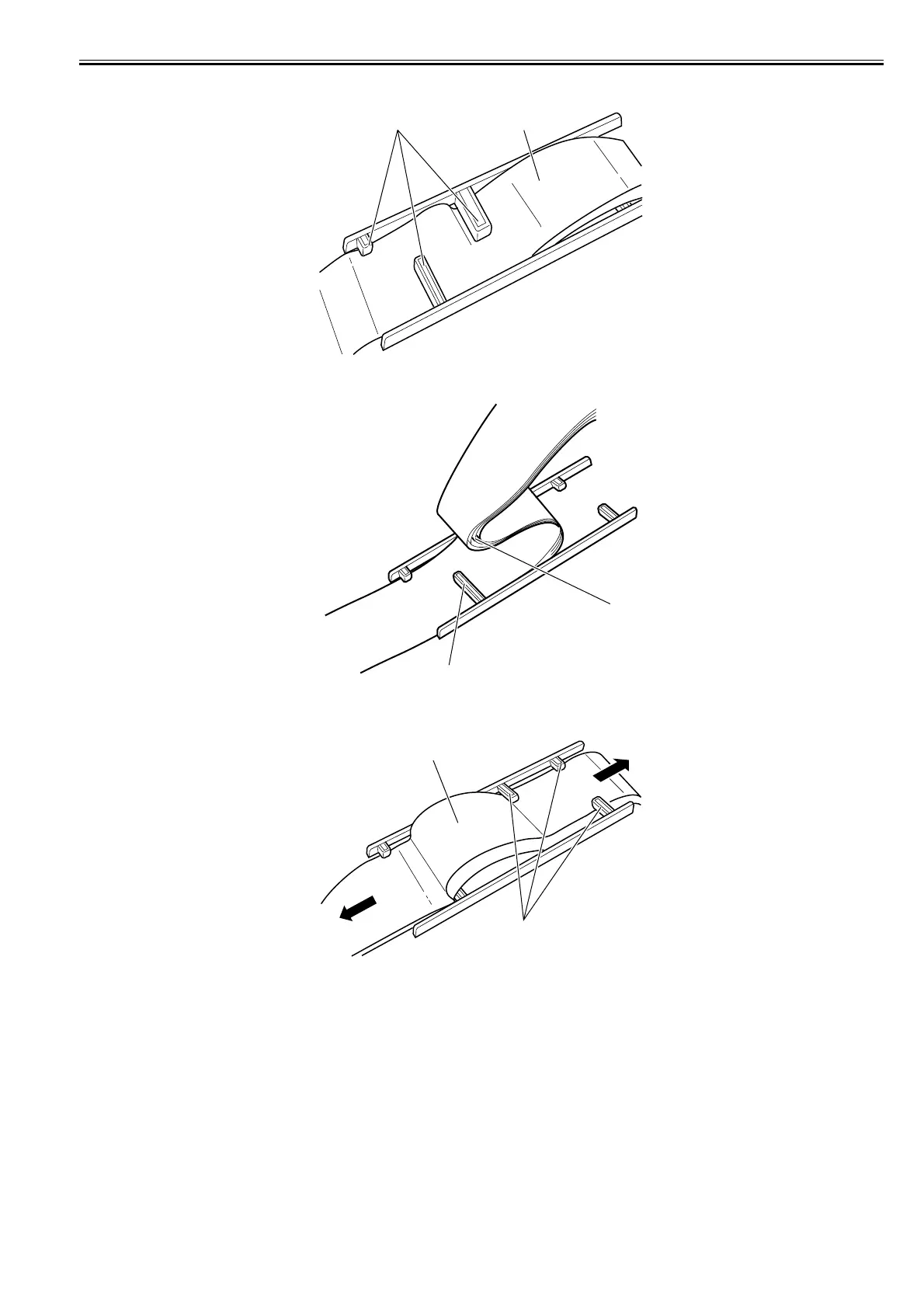

c) Note on attaching the flexible cable
1) Insert the flexible cable[2] through the three claws[1] in the flexible cable retainer.
F-4-76
2) Lightly fold the flexible cable in its marked area[1] and pass it through claws[2].
F-4-77
3) Insert folded flexible cable [1] through the three claws [2].
4) Pull the flexible cable [1] lightly from both sides to remove slacks in it.
F-4-78
