Canon iPF6100 - Page 346

Chapter 4
4-38

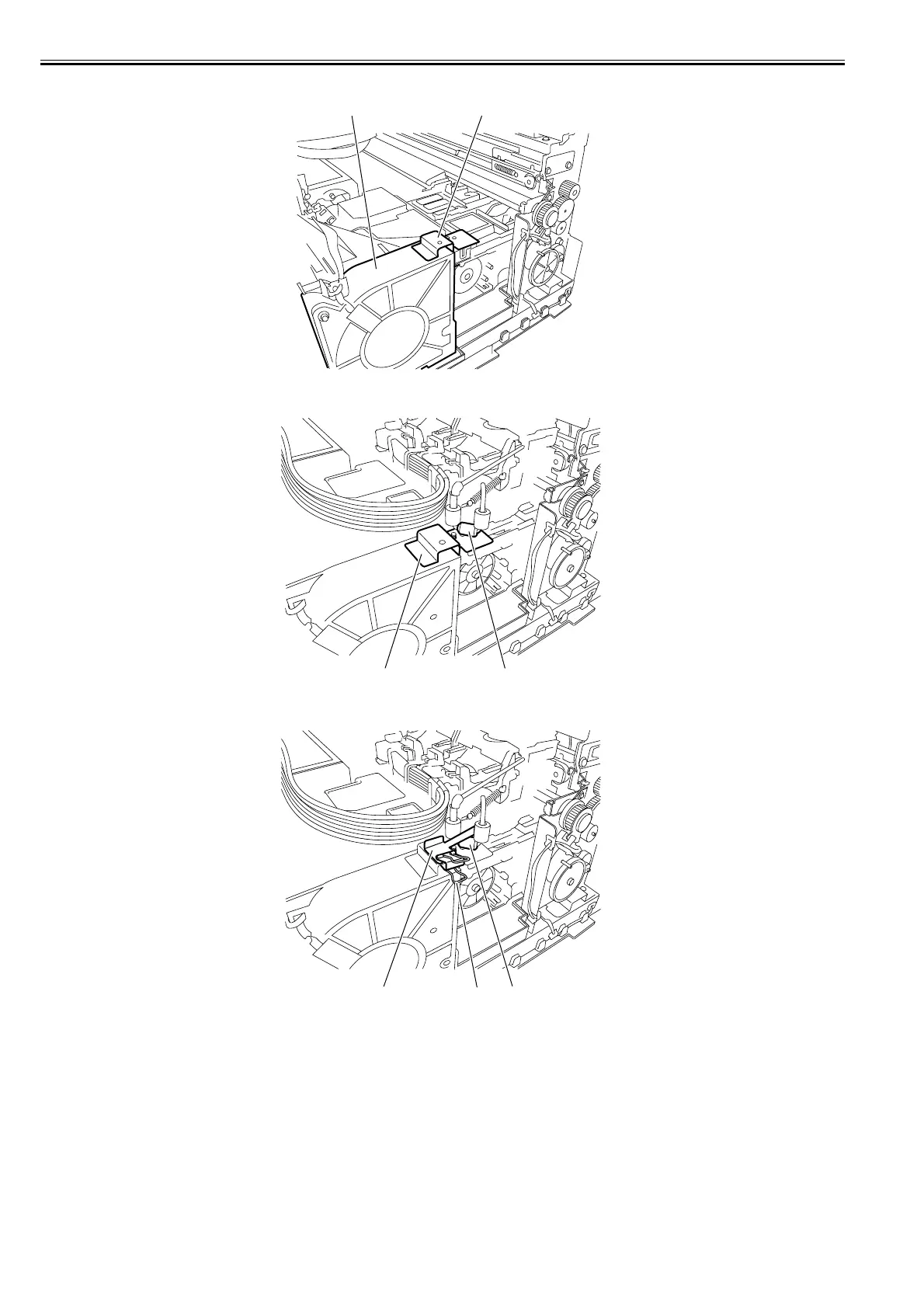

5) Install the carriage wire tool [1] in position with its leaf spring being attached to the top of mist fan [2].
F-4-82
6) Moving the carriage, adjust the height of the wire guide to bring its roller [1] into contact with the top of carriage wire tool [2].
F-4-83
7) Secure the roller retainer [1] with the clip [3] in contact with the top of roller [2].
F-4-84
[1][2]
[1][2]
[1] [3] [2]
