Chapter 4
4-60

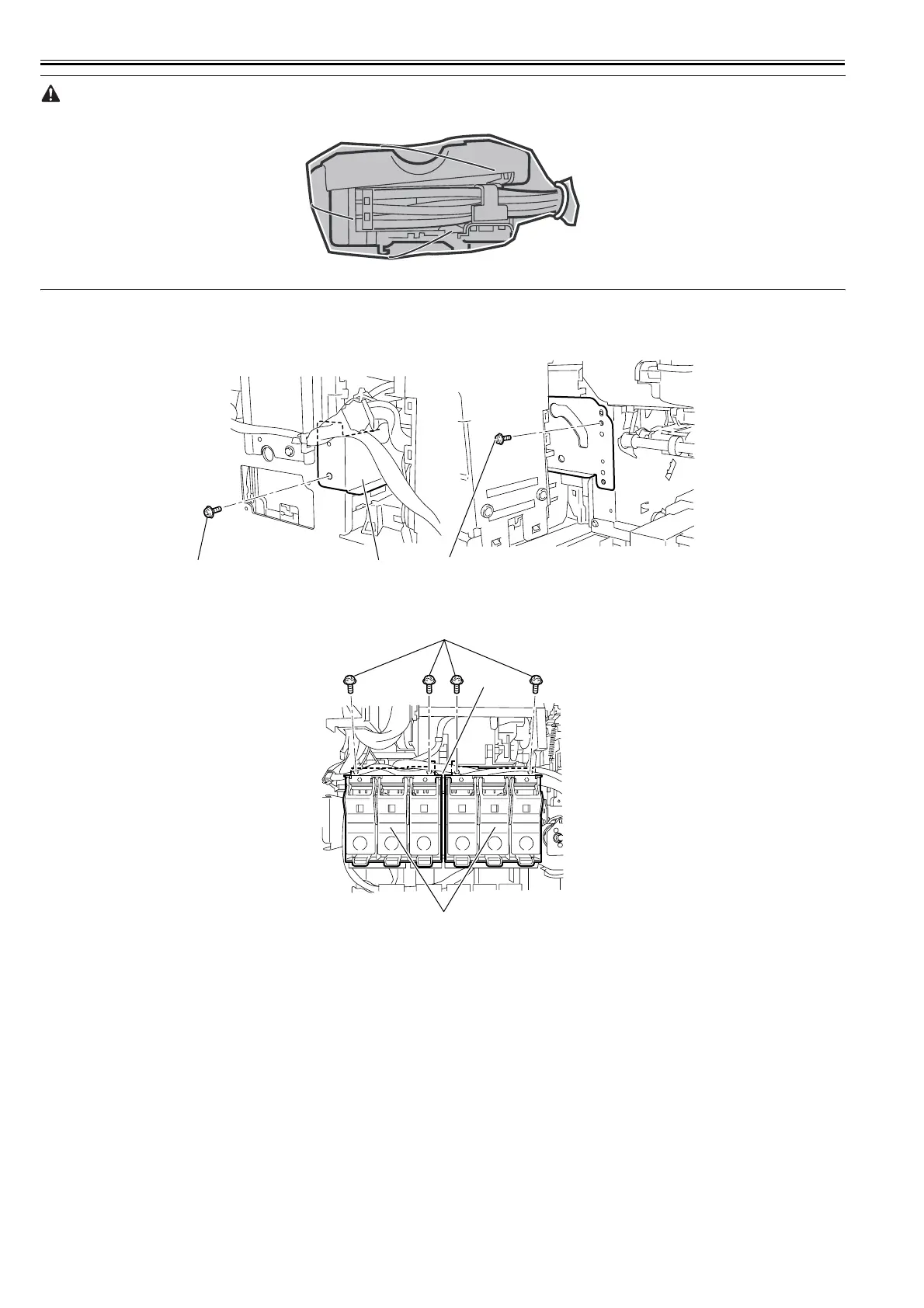

Put the removed joint base in a plastic bag so that ink does not splash.
F-4-134
6) Remove the cutter unit and cutter lifter unit.
Refer to DISASSEMBLY/REASSEMBLY > Point to Note on Disassembly and Reassembly > Cutter
7) Remove the two screws[1], and then remove the support plate[2].
F-4-135
8) Remove the four screws[1] and joint[3], and then remove the two ink tank unit R[2].
F-4-136
[1] [2]
[1]
[1]
[2]
[3]
To Next Page
