Canon iPF6100 - Page 378

Chapter 4
4-70

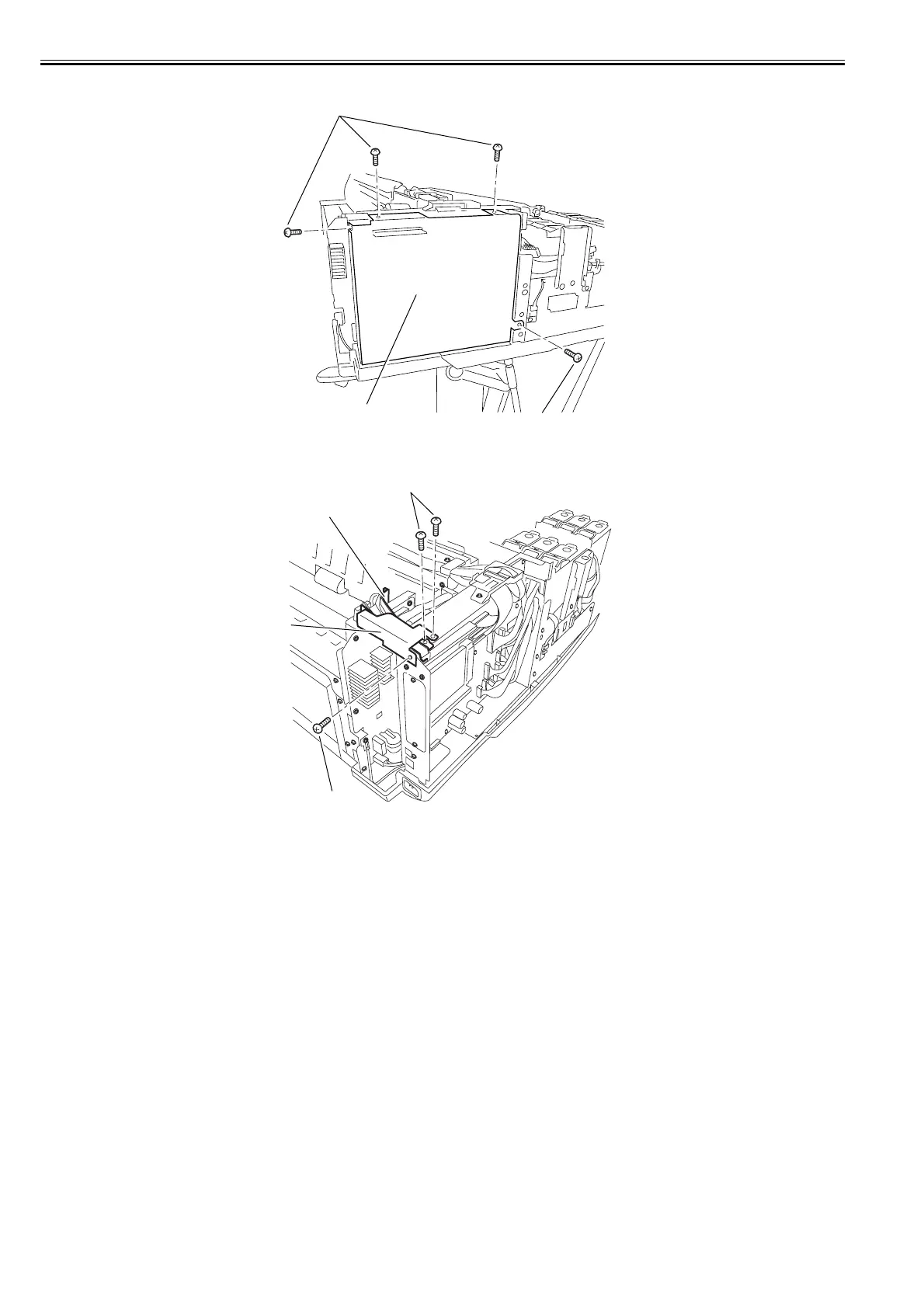

2) Remove the four screws[1] and remove the shield plate[2].
F-4-155
3) Remove the three screws[1], and then remove the shield cover[2] and the guide[3].
F-4-156
[2]
[1]
[1]
[1]
[3]
[2]
[1]
