Chapter 6
6-78

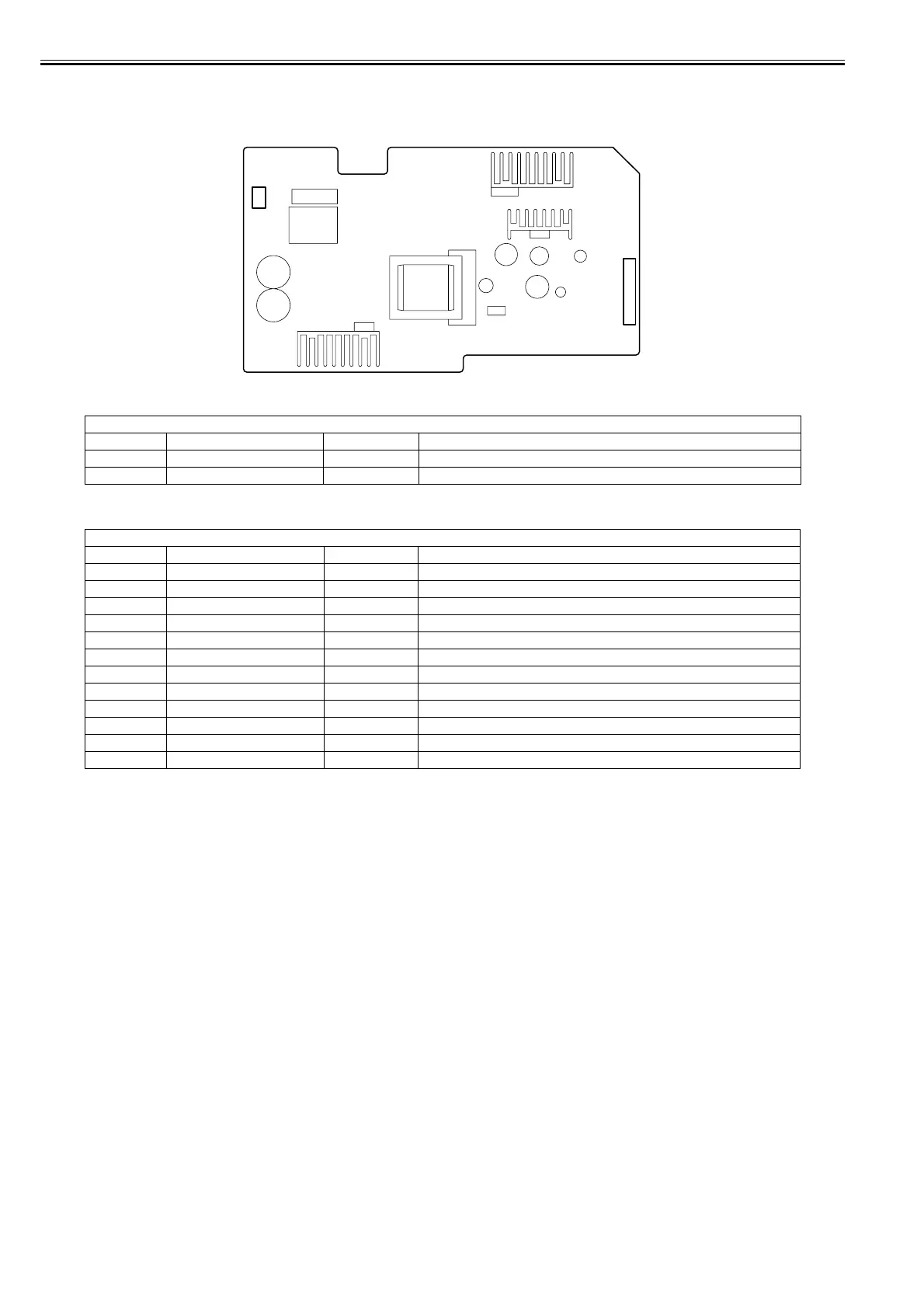

6.2.8 Power supply
0024-9334
iPF6300 / iPF6350 / iPF6300S
F-6-8
T-6-124
T-6-125
CN1
Pin Number Signal name IN/OUT Function
1 AC(H) - Power supply (AC 120V or AC 230V)
2 AC(H) - Power supply (AC 120V or AC 230V)
CN2 (Connect to Main Controller)
Pin Number Signal name IN/OUT Function
1 HD_VHFBH IN VH feedback voltage +
2 HD_VHFBG IN VH feedback voltage -
3 VH OUT Power supply (+24V)
4 VH_GND - GND
5 VH OUT Power supply (+24V)
6 VH_GND - GND
7 VM OUT Power supply (+32V)
8 VM_GND - GND
9 VM OUT Power supply (+32V)
10 VM_GND - GND
11 VH_ENB IN VH power supply ON/OFF signal
12 PW_CONT IN Normal/power saving switch signal
CN2
CN2
CN1
