Canon iPF6100 - Page 601

Chapter 7
7-91
b) NOZZLE 1

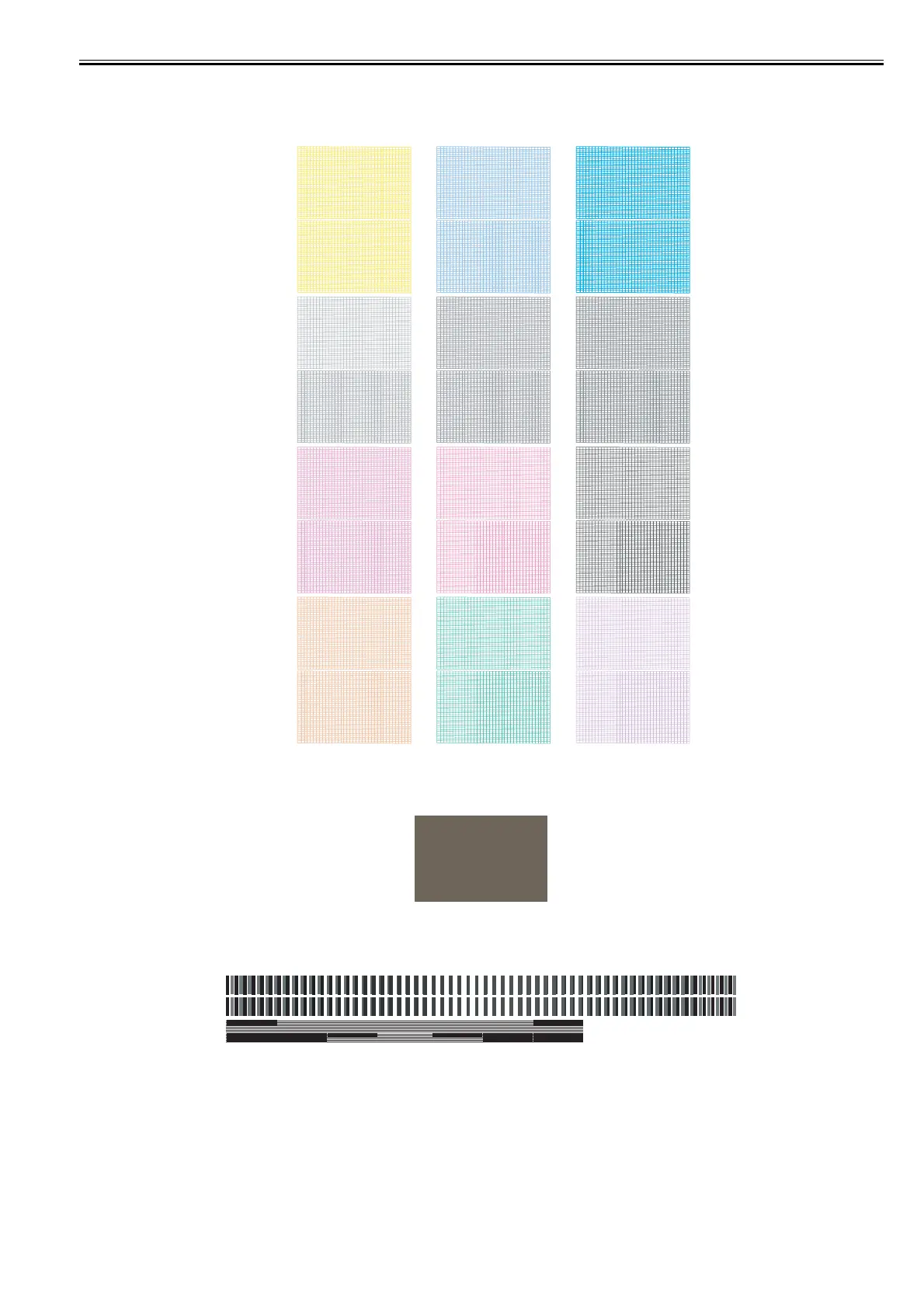

A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [PRINT PATTERN]> [NOZZLE 1] is shown below.
F-7-42
c) OPTICAL AXIS
A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [PRINT PATTERN]> [OPTICAL AXIS] is shown below.
F-7-43
d) ROUGH
A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [HEAD ADJ.] > [AUTO HEAD ADJ]> [ROUGH] is shown below.
F-7-44
Nozzle Check Pattern SERVICE
(L)
(R)
