8.2.3. Battery Wakeup Connections
A Stand Alone capable (battery-equipped) microturbine enters sleep mode to conserve battery
power during prolonged periods of inactivity. A 24 V external contact that provides a momentary
pulse can be used to wake up the microturbine from sleep mode. See Figure 57 for an example
battery wakeup connection to the C1000 series controller. Connect the +24 V side of the contact
to TB1-54 and 0 V to TB1-55.

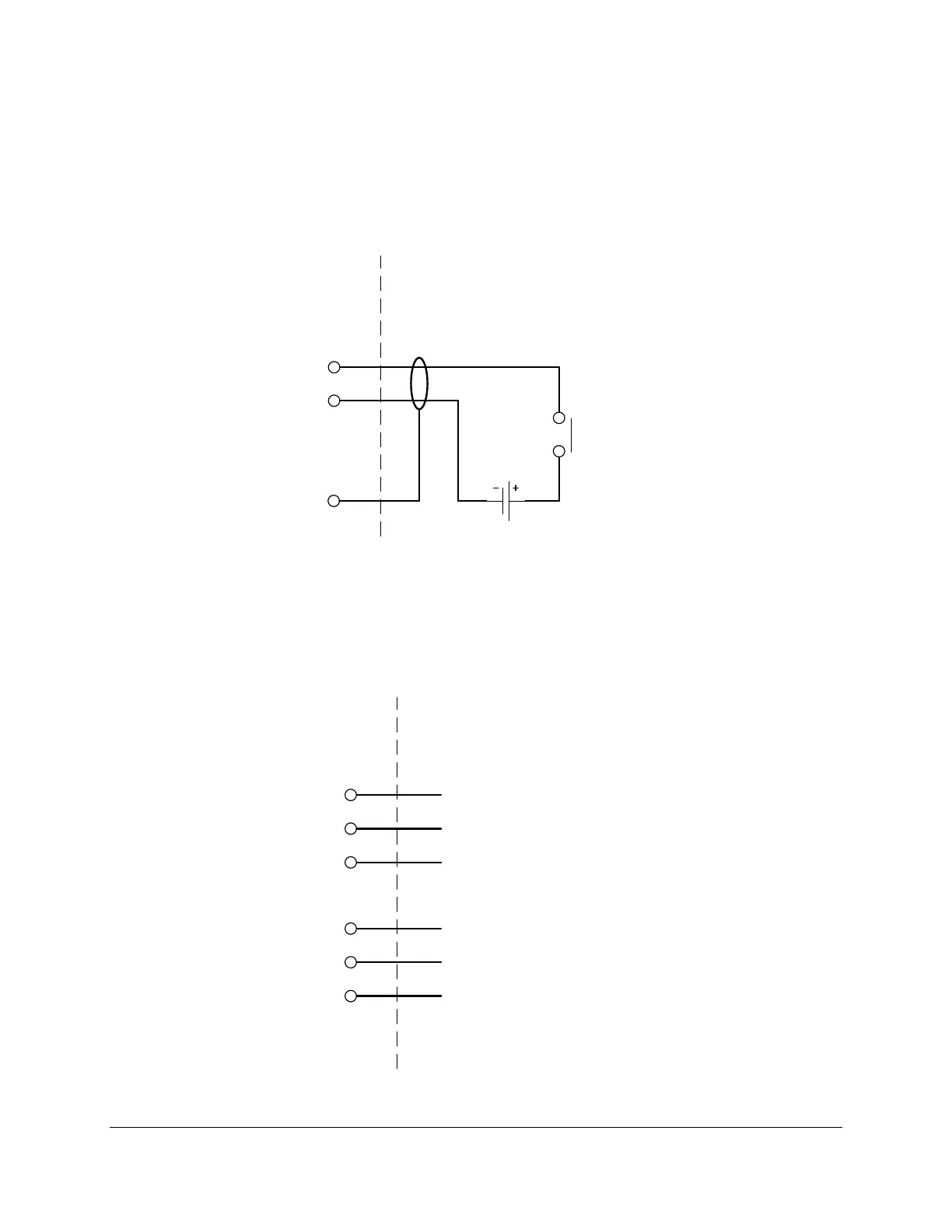

Figure 57. Battery Wakeup Connection
8.2.4. Modbus
Communication with an individual microturbine via Modbus is available at terminal block TB1 in
the C1000 series controller. See Figure 58 for Modbus connections. Refer to the
C1000S/C800S/C600S Technical Reference (Table 1) for details.
