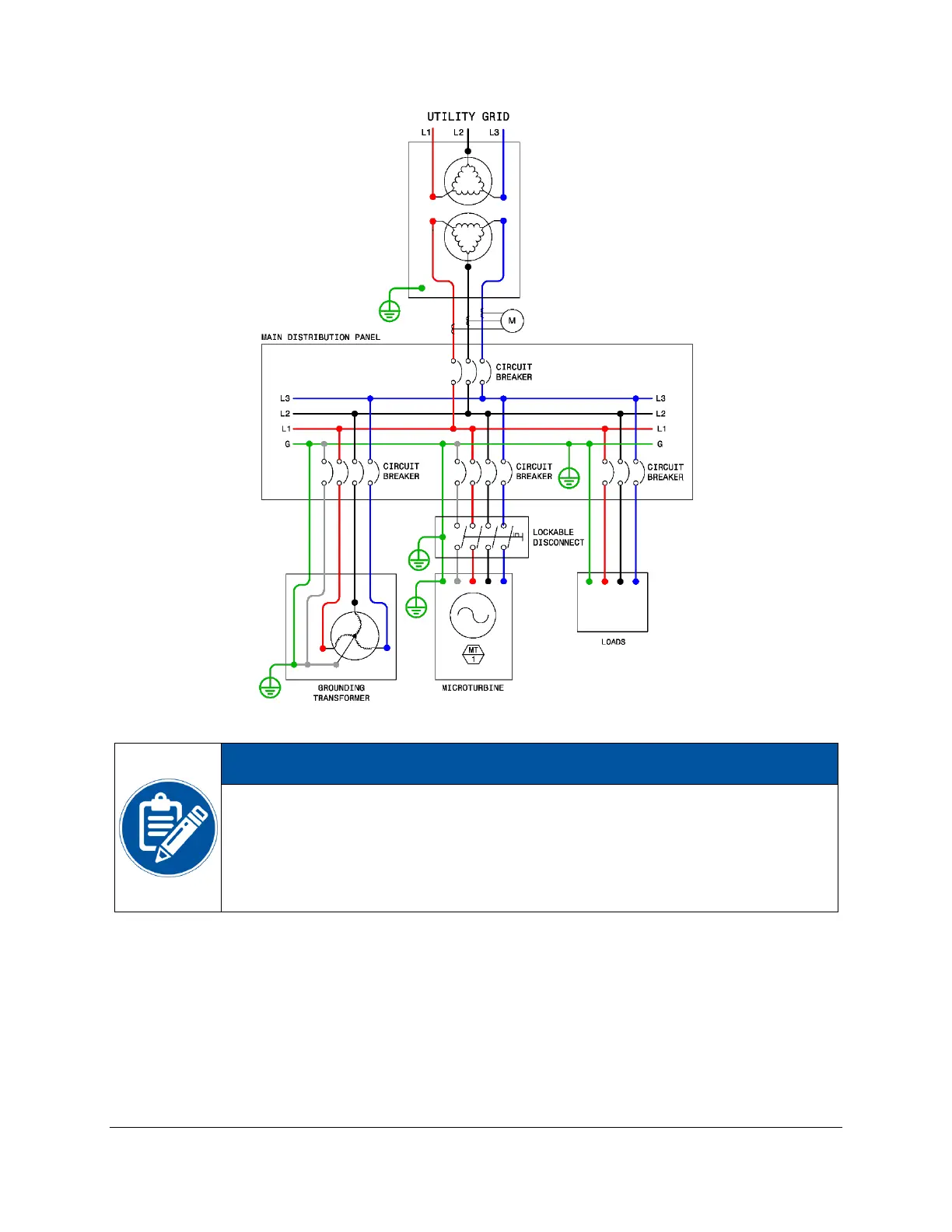

Figure 38. Delta Service with Grounding Transformer and 4-Pole Breaker
NOTE
3-wire delta utility service connections require a grounding (zig zag) transformer,
as phase-to-ground voltages float and, over time, become unbalanced with
respect to ground which causes microturbine nuisance trips. In addition, the
phase-to-ground voltages reach levels that can break the insulation in the
IGBTs-to-ground and cause equipment failure. Capstone Applications approval
is required for grounding transformer applications.
7.5.1.2. Examples of Single Line Diagrams
See Figure 39 through Figure 41 for Grid Connect installation single line diagrams for multiple
microturbines.
