Capstone Turbine Corporation • 16640 Stagg Street • Van Nuys • CA 91406 • USA
Installation Guide: Capstone C1000S/C800S/C600S with C1000 Series Controller
480064 Rev C (December 2018) Page 43 of 122
Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without
incurring any obligation either with respect to equipment previously sold or in the process of construction.

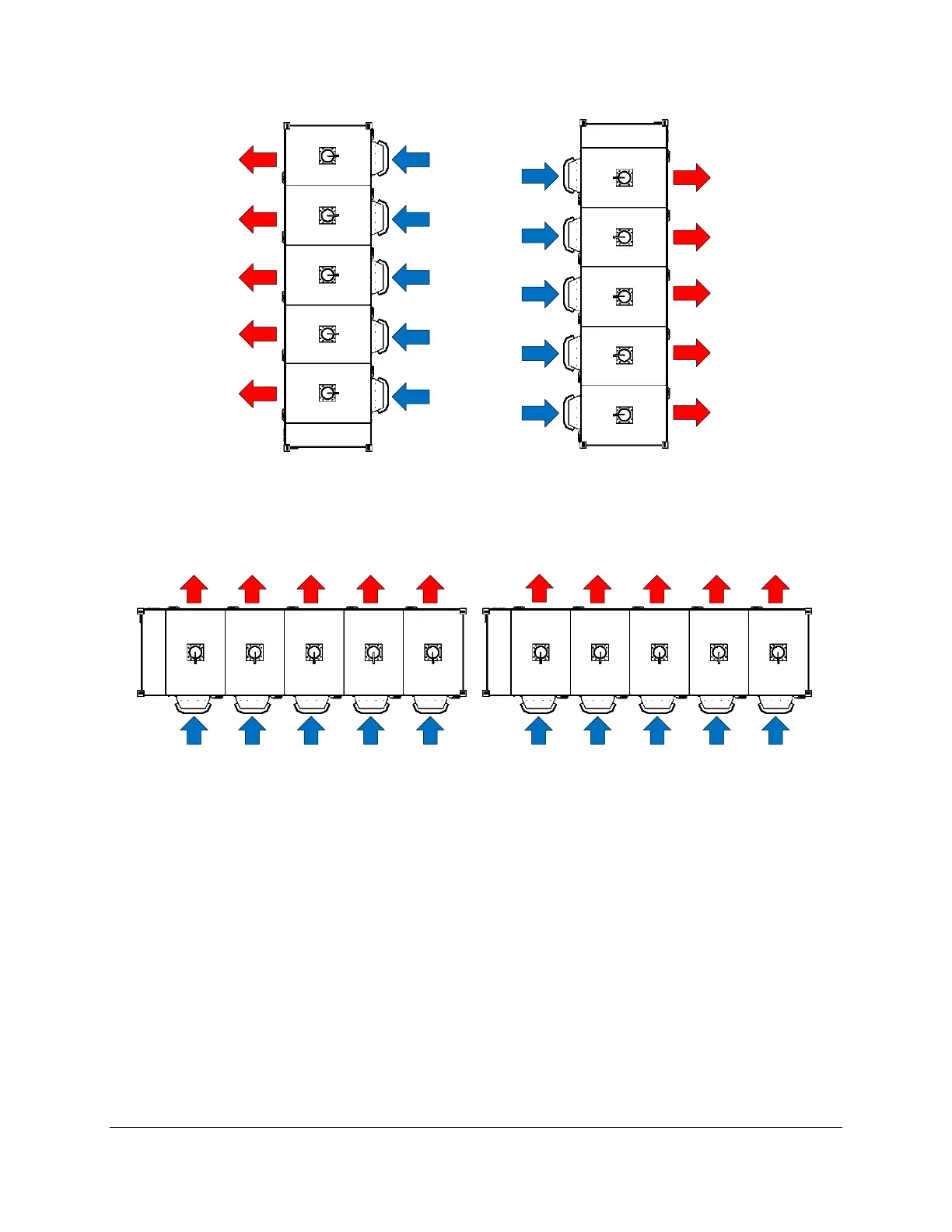

Figure 16. Microturbine Orientation Example #2
Figure 17. Microturbine Orientation Example #3
5.3. Service Clearances
See Figure 18 through Figure 20 for clearance requirements. Service clearances must allow for
maintenance, service, and repair. When designing placement of systems and exterior housings,
clearances need to account for the following.
Space needed to remove various components/modules (for weights refer to Table 9).
Refer to C1000S, C800S, or C600S O&I Drawing (Table 1) for actual dimensions.
Space required for service personnel and equipment such as forklifts. Refer to C1000S
Mechanical Coordination Diagram (Table 1) for details.
